Help CenterSolid Float PVC Boom
Related Products
Description

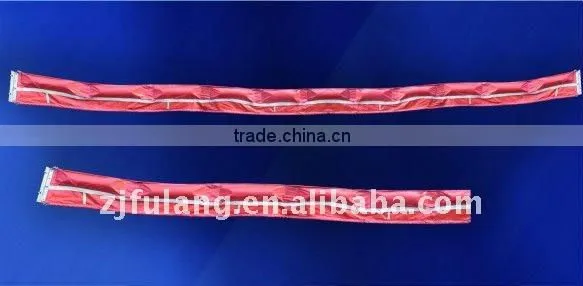

Solid-floatation PVC boom is economic and general propose boom for encircling spilt oil and other floaters on water. A top ridge rope, middle reinforced belts and a bottom balance chain on boom sections bear the longitudinal load, and form concaves both at the skirt in water and at the flexible sections above water when boom is in a current. Between cross are some flexible sections. and every section has anchor seats which is 20m long. It is especially suitable for permanent deployment and widely used at pond, lake, river, harbor and offshore petroleum platform.
Feature
1. High strength and long service life. Because of reasonable force distribution on the boom.
2. Good oil stagnant ability with due to nice posture and high stability in water.
3. Good wave-response. Easy deployment.
4. Easy to clean and maintain.

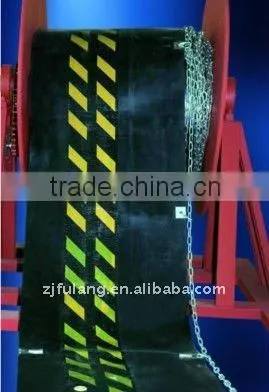

5.The Deployment and retrieval of the PVC fence is very simple.The oil fence can be supplid with hydraulically driven reel frame or the hanging rack.
Sizes
ITEM |
WGV600 |
WGV750 |
WGV800 |
WGV900 |
WGV1000 |
WGV1100 |
Height(mm) |
600 |
750 |
800 |
900 |
1000 |
1100 |
Freeboard (mm) |
180 |
260 |
250 |
330 |
325 |
320 |
Draught (mm) |
320 |
400 |
410 |
540 |
650 |
770 |
Section Length(m) |
20,15,10 |
|||||
Tension Strength(KN) |
20 |
40 |
55 |
65 |
75 |
85 |
Weight(kg/m) |
3.7 |
6.2 |
7.1 |
8.4 |
9.3 |
9.5 |
Wave Height (m) |
0.5 |
1 |
1.5 |
1.8 |
2 |
2 |
Wind Speed (m/s) |
10 |
15 |
15 |
18 |
18 |
20 |
Current speed (KN) |
1 |
1.5 |
2 |
2 |
2.5 |
2.5 |
20m packing Dimension (m) |
1×1×0.6 |
1.2×1×1 |
1.3×1.1×1.1 |
1.4×1.5×1.2 |
1.4×1.6×1.3 |
1.4×1.7×1.4 |
Our mission
FULANG, a leading supplier for oil spill equipment aims to provide high quality absorbents and service with a focus on safety, fast response and minimal manpower requirements. This is achieved through our broad operational experience gained in the hardest environments and commitment to continuous improvement at all levels.
Application

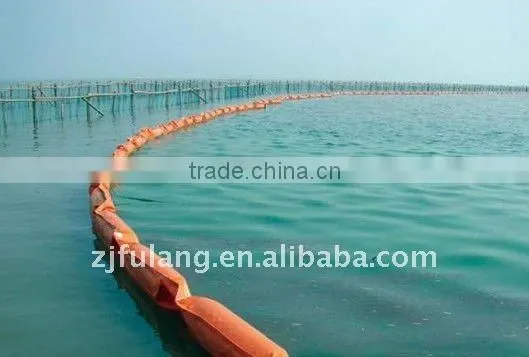

1:It can be used to the polluted area on pond, lake, river, harbor and offshore.
2:Laying around the oil drips equipment to keep construction site, factory and machine clean, dry, and safe
3:It can be deployed easily and quickly to response emergence on the water
