Specifications
Scrap Metal Crusher:1.High output, low energy consumption
2.extensive use
3.Easy maintenance
4.ISO9001/CE/BV

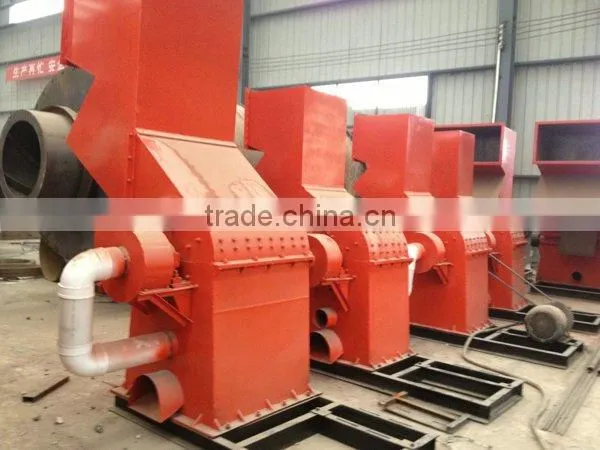

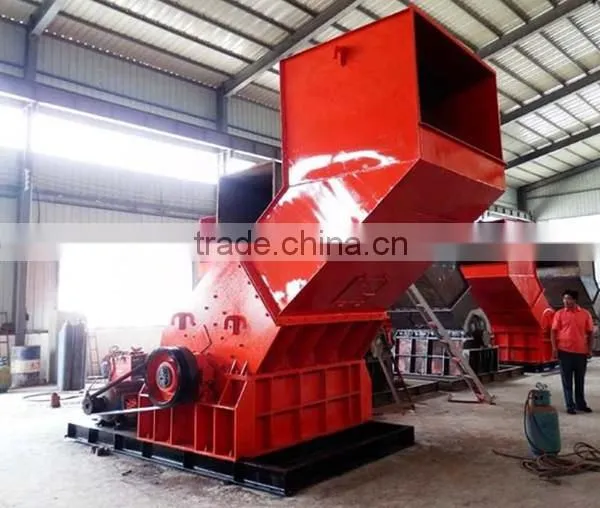

scrap metal disintegrator with certification and low price
Basic information about metal disintegrator :
Metal Crusher is the latest type crusher which is produced according to the requirements of the
market by Dingke machine, who organize the power and combine the specific practical application of
the clients from home and abroad. It is very high-efficiency, energy-saving. In addition, this machine has the characters of high convenience, compact composition,
and big output. It is mainly applied to the large-scale reclamation depot and used to break the cans into ideal pellets, such as drink can, beer can,
, so that the transport cost can be reduced. The users can adopt different allocations according to
the materials species, scale, and the requirements of the finished goods.
Application of metal disintegrator :
scrap metal shredder/scrap metal crusher widely used for crushing of all kinds of scrap metals which including of zip-top cans, paint buckets, bicycles, diesel oil barrels, motorcycles, washing machines, shells of cars and refrigerators, electric closets, steel plate offal,(the underline parts should be sheared first, then shredded),etc… It is easy maintenance, simple structure, and powerful capacity.
In the processing of crush, the rusts, paints and other waste materials which adhering to the surface of the scrap metals were separated, then under the working force of magnetic sorting devices the non-metallic wastes that mixed in the scrap metals were sorted out which including of non-ferrous metal, plastic and rubber, etc... The final product that from the metal shredder machine is easily carrying and shipping, conveniently steel-making, shortening time of smelting, and greatly improve the efficiency of iron and steel smelting.

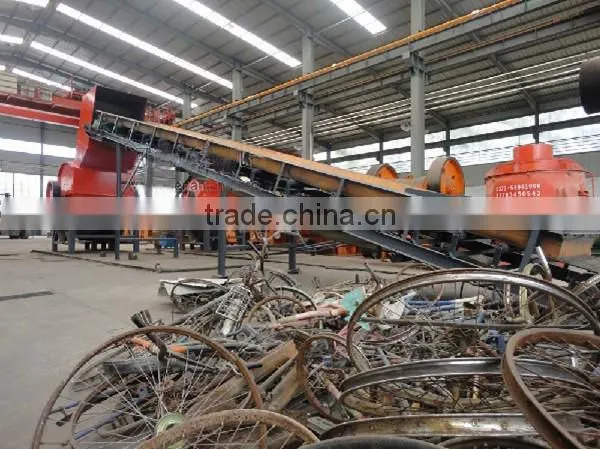

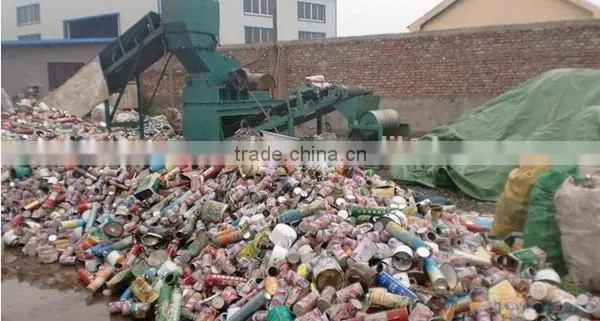

Metal disintegrator before:
scrap metal crush after:

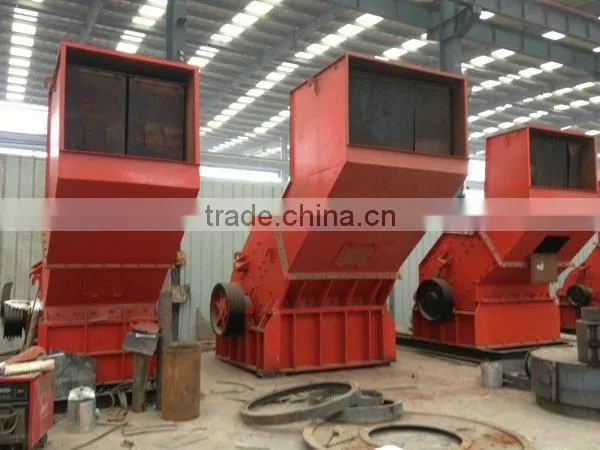

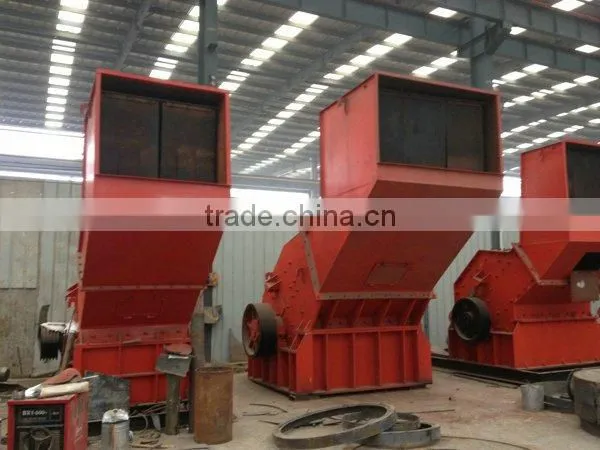

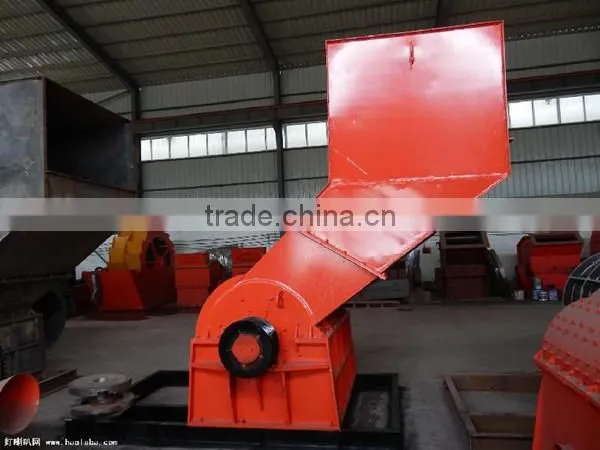

The working metal disintegrator :
Impact metal crusher machine mainly rely on impact of material to broken. The material enter into the crusher, suffered the impact and broken of the high speed rotary hammer, broken material obtained energy from hammer kinetic, with high speed to the frame body flap and at the same time material hit each other, broken by many times. The materials less than the sieving gap discharge from the clearance. Individual larger stores impact again by the hammer, grinding, extrusion and broken. Thus required size products are forced out.To avoid the wall wear and deformation, the cabinet interior are set with protection liners.
Metal disintegrator Features:
1. Geared motor drive.
2. Meshing blades, the cans completely broken.
3. Use of special blades, blade hardness of not less than HRC55 (Rasp HRC hardness of 51 degrees)
4. Rugged construction, dense style ribs plate, to ensure that the strong box.
5. Automation button control, safety, convenience.
6. Can be equipped with conveyor belt feed.
Main technical parameters of metal disintegrator :
| Model | Motor power(kw) | Capaciy(t/h) | Covers(m²) | demension size(m) |
| 600 | 18.5-22 | 0.3-0.6 | 26 | 2.65x1.5x1.85 |
| 800 | 20-30 | 1-2 | 30 | 2.8x1.8x1.95 |
| 1600 | 90-110 | 5-10 | 50 | 3.2x3.6x3.5 |
| 1800 | 180-200 | 1-25 | 80 | 3.8x3.x4.2 |
More informantion please contact me!Welcome to our fctory!
