Specifications
Mini Stone Crusher:1)High boken rate mini stone crusher
2)High output mini crusher
3)Even particle size
ISO Certificate

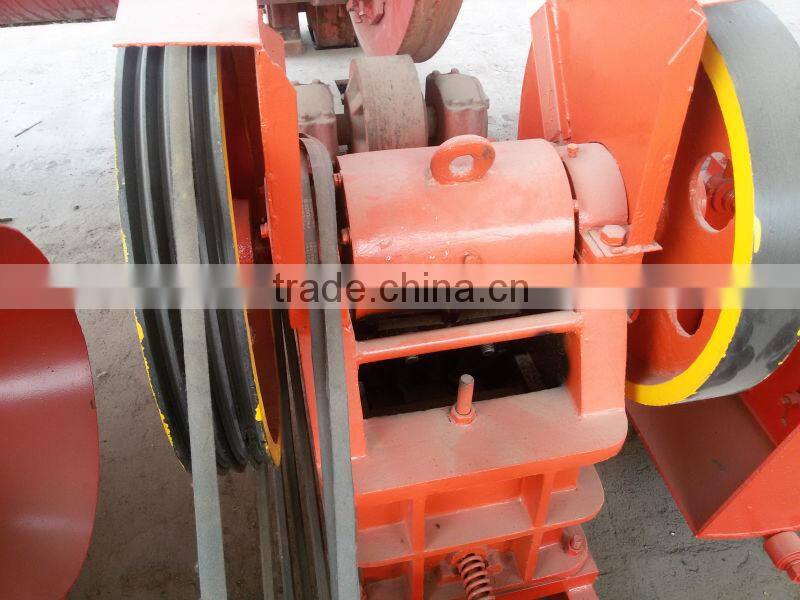

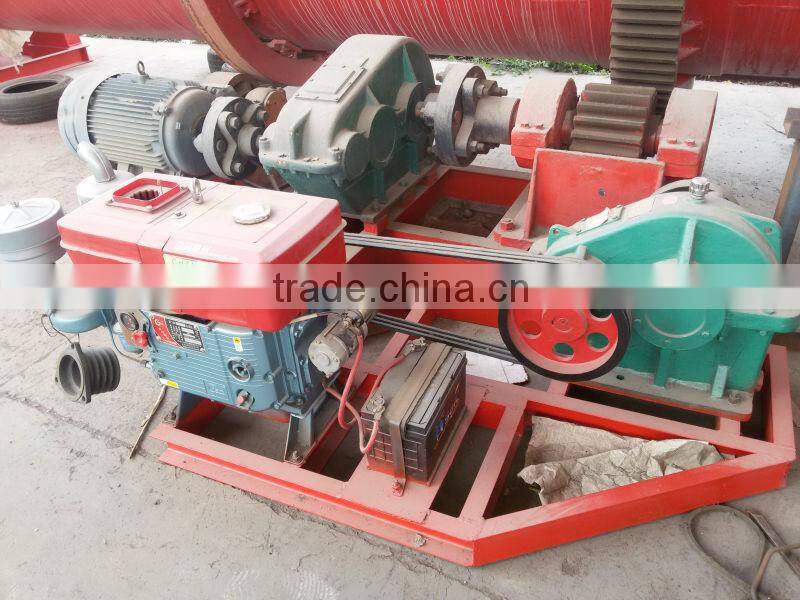

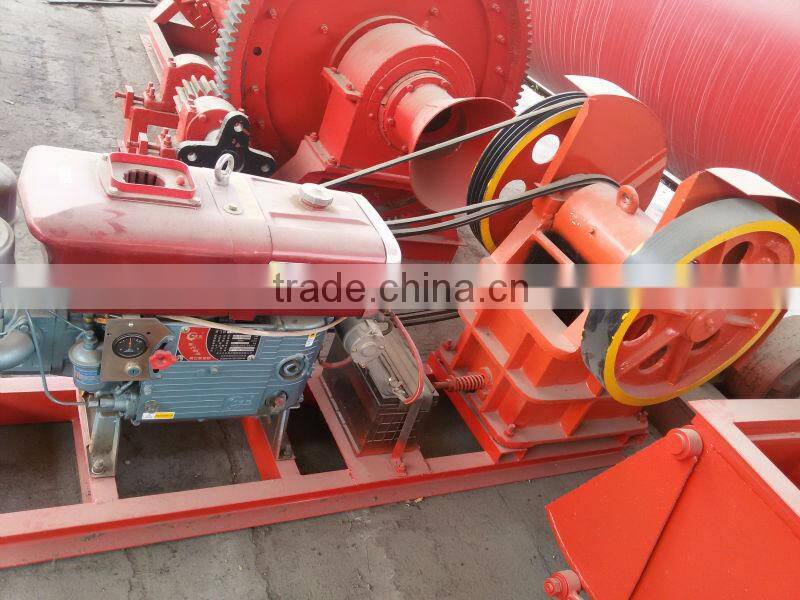

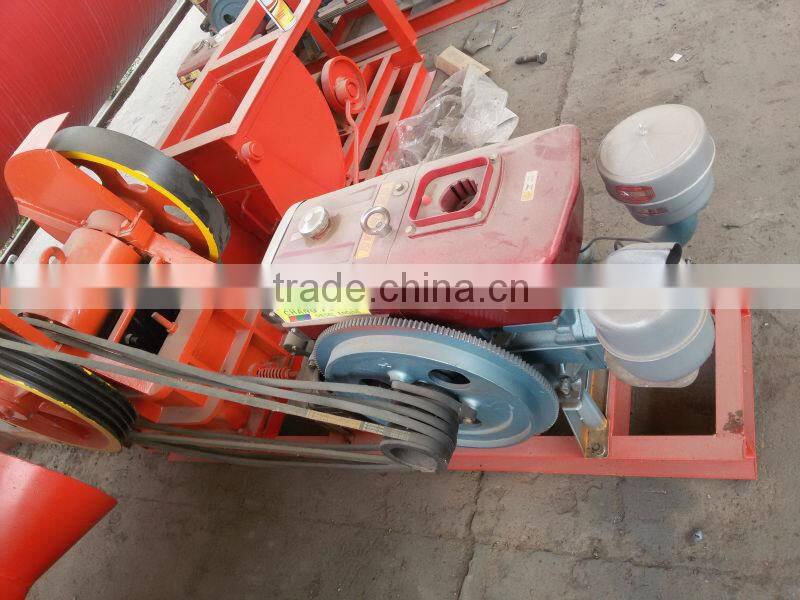

Small portable stone crushers with diesel engine jaw crusher machine

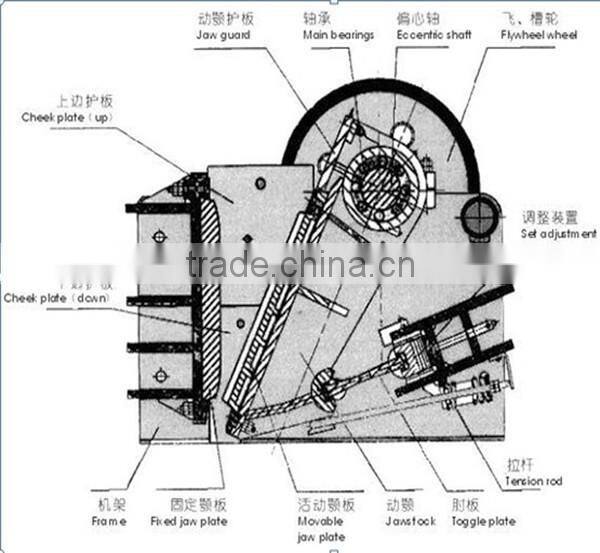

The structure diagram of mini jaw crusher :
Mini Stone jaw Crusher PE200*300 Specifications:
| Model | Feed opening size (mm) |
Max feed size(mm) |
Adjustable range (mm) |
Capacity (t/h) |
Eccentric shaft rotary speed (r/min) |
Motor power (kw) |
Total weight (t) |
Overall dimensions (L*W*H)(mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 90-110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 160-220 | 130-330 | 250 | 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200×3300×3500 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×1600 |
We also have large type jaw crusher, if you want to know more, please contact me!
Usage and application of mini jaw crusher :
Mini jaw crusher has big broken production, product size is even, simple structure, reliable operation, maintance is simple and convenient, cost is economic and other characteristic, and is used in mine extensively, smelt and building material, high way, railwayway, water railway, water conservancy and chemical indutry, breakage fight pressure within 350 sign handkerchives various stocks.
The features of mini jaw crusher :
1). Mini jaw crusher use of world-class manufacturing processes, selection of the most high-end materials;
2). The base of bearing use of integrated steel structures;
3). The broken cavity is deep and without dead zone, increased capacity and output feed;
4). Lubrication system is safe and reliable, convenient of replace parts, easy to maintenance;
5). The outlet use of pad-style adjustment devices, convenient and reliable, large of adjustment range, and increase the flexibility of the equipment;
6). Low noise, less dust.
Working principle of mini jaw crusher :
The belt and belt pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring , then the end products come out from the crushing cavity.

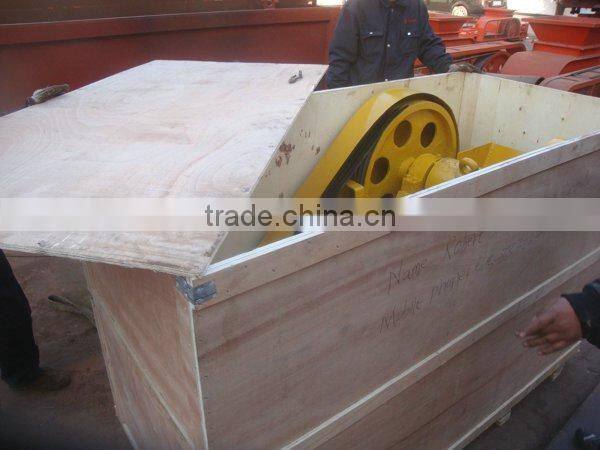

The delivery of mini jaw crusher:
More information please contact me! Welcome to visit our factory!
