Specifications
the feature of vertical combination crusher1.large crushing ratio
2.easy to maintain
3.low consumption
4.high performan

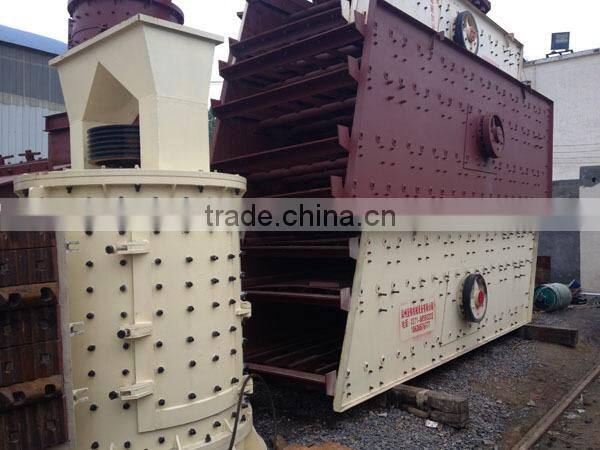

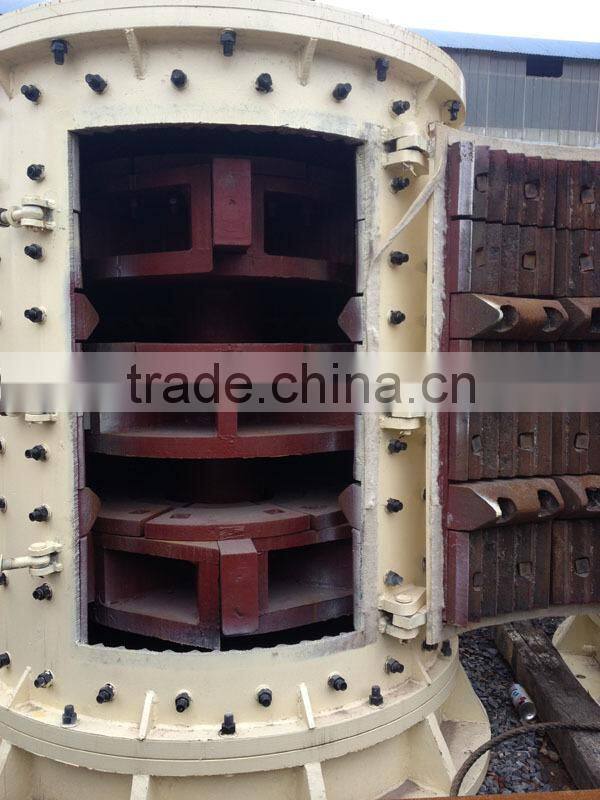

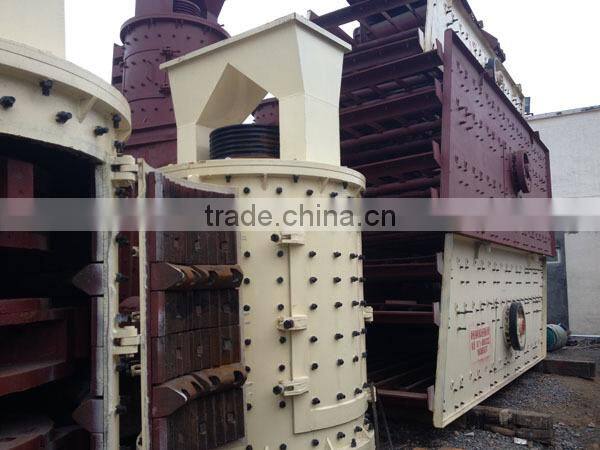

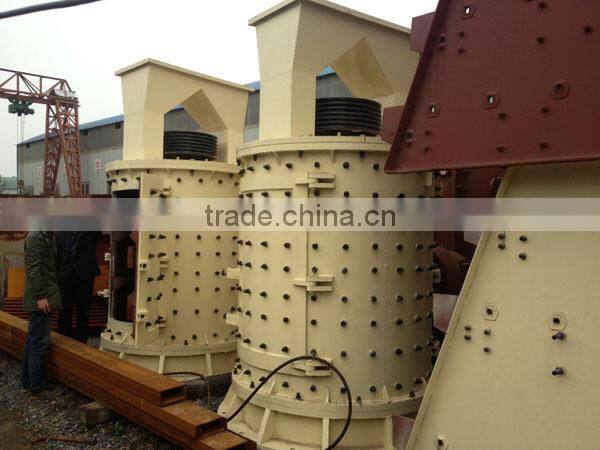

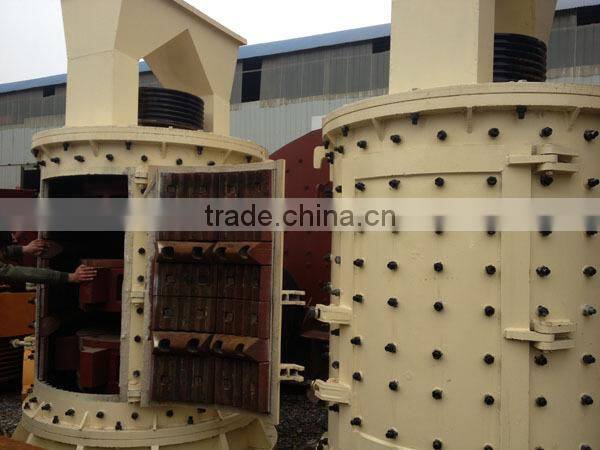

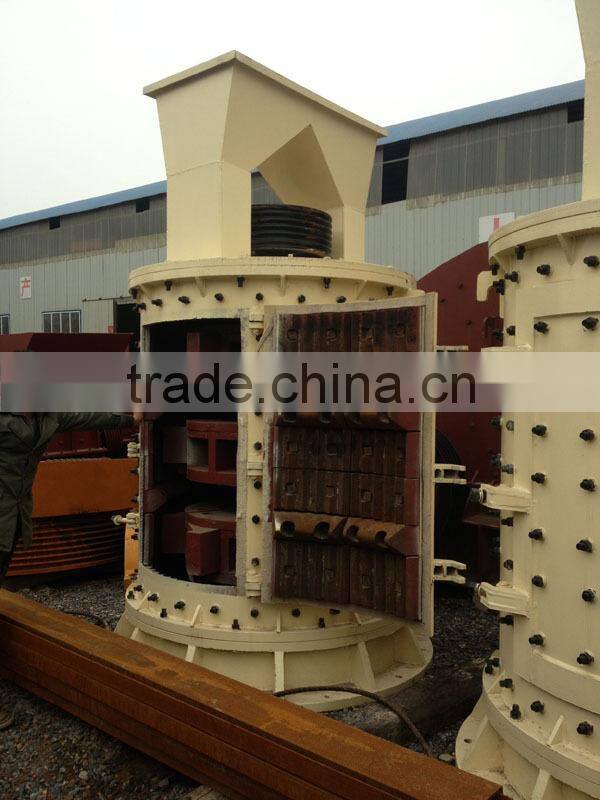

Vertical combination crusher:
The vertical combination crusher is a new type of fine crushing and rough milling product after optimizing and designing the main technical parameter and combining the crushing technologies domestic and international. It is mainly used to crush crude cement materials and grogs in mediumsized factory, providing an ideal fine crushing equipment for the technological innovation of cement factories or setting up the cement production line. It is also applicable for crushing iron ore, sandstone, gypsum, blast furnace residue, coal stone, piece coal, and many other ores of medium hardness, characterized by the large crushing ratio, little energy consumption, stable run, simple structure, and convenient maintenance and operation.
Vertical composite crusher, synthesis of domestic and foreign similar technology crusher, the main technical parameter optimization is meticulous research and development of a new equipment, mainly used for small and mediumsized cement clinker finely homework, unripe, but also be used for iron ore, sandstone, gypsum, dolomite, coal, gold, serpentine, blast furnace slags, gangue, phosphate rock medium hardness materials, compressive strength does not exceed 140 mpa, humidity does not exceed 15%.
Vertical combination crusher application:
This machine is widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc.
Vertical combination crusher feature:
This type of finely equipment crushing ratio degrees big crushing ratio, the biggest can reach the grainsize can adjust arbitrarily, do not suffer plate hammer, lining board wear the impact, no screen bar Settings, crushing high water content, hydraulic large material clogging and using elastic and adjusting mechanism, not into broken material can self control, won't cause harm equipment, bearing level decoration, long service life, high temperature can broken material large crusher ratio,low consumption ,stable running ,simple structure and easy to operation.
Technical data:
Specification |
Feeding size(mm) |
Discharging size(mm) |
Capacity(t/h) |
Rotation speed(r/min) |
Motor power(kw) |
Overall Dimensions(L×W×H)(mm) |
PEL-800 |
<100 |
<3-5 60-90% |
10-20 |
934 |
22 |
2100×1200×1700 |
PEL-1000 |
<120 |
<3-5 60-90% |
20-40 |
769 |
45 |
3600×1400×1900 |
PEL-1250 |
<150 |
<3-5 60-90% |
40-70 |
530 |
75 |
2800×1600×2100 |
PEL-1500 |
<180 |
<3-5 60-90% |
70-100 |
495 |
132 |
3100×1900×2200 |
PEL-1750 |
<200 |
<3-5 60-90% |
130-190 |
424 |
160 |
3710×2360×2390 |
PEL-2000 |
<220 |
<3-5 60-90% |
100-160 |
370 |
185 |
4100×2660×2620 |
Note: This specification is just reference, any changes are subject to the products.
Attention Please:
In order to recommend suitable design for you, please kindly tell me: 1. What is your raw material to be crushed, is it soft stone (like limestone, dolomite) or hard stone (like granite, basalt, river stone, etc)? Impact crusher is suitable as secondary crusher for soft stone, while cone crusher is suitable as secondary crusher for hard stone. 2. What is the maximum feed size of your raw material? 3. What are output sizes you want?Normally for road construction, it is 0-40mm, while for aggregate, it is 0-20mm. 4. What is capacity you want? How many ton per hour?
Our service:
Mining machines design and manufacture.
Technical engineer is available to the construction site for installation instruction and trial operation.
Customization is available.
More information please contact me. We will provide you reasonable price to meet your requirements! Welcome to visit our factory!
