high-efficiency belt conveyor
Introduction of belt conveyor

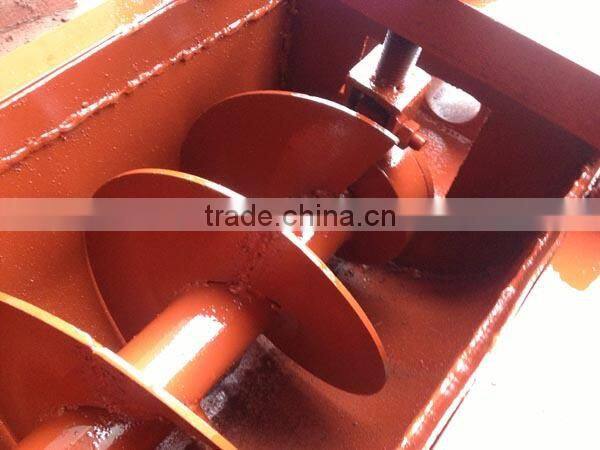

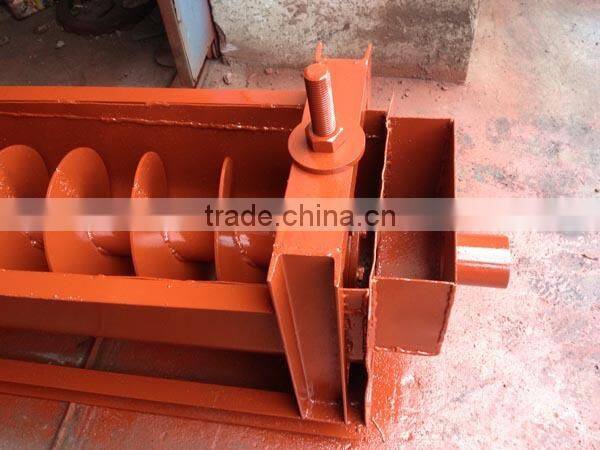

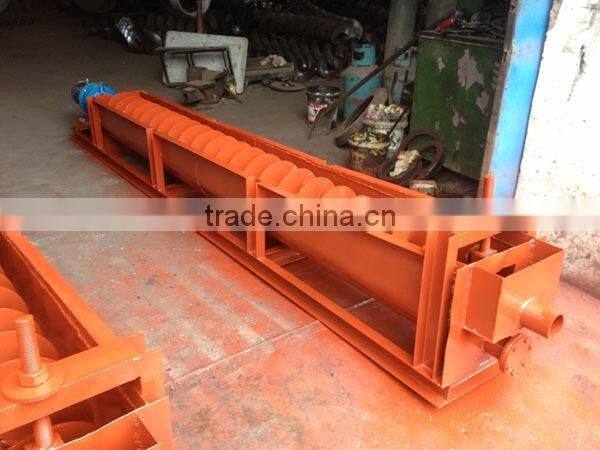

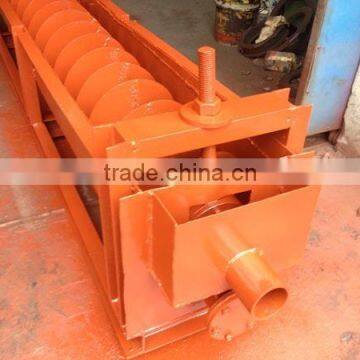

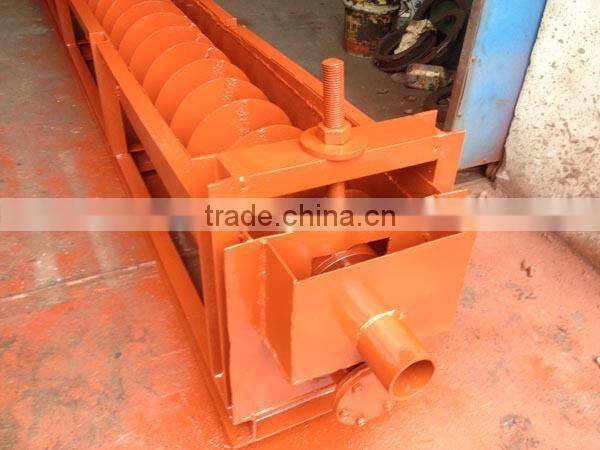

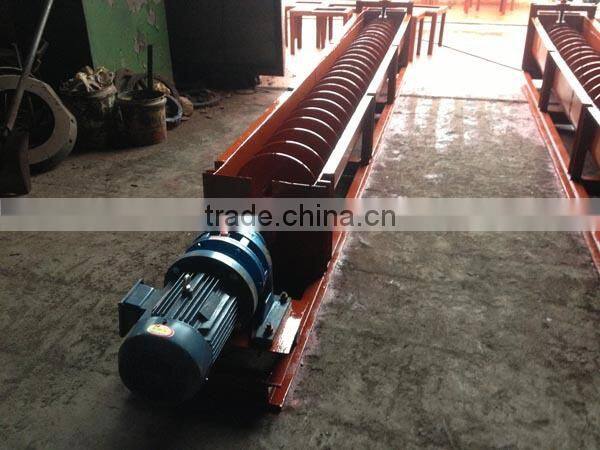

Screw conveyor in the conveying form into a shaft screw conveyor and shaftless screw conveyor, on the exterior is divided into U tube and screw conveyor and screw conveyor. A shaft screw conveyor is suitable for the non-adhesive powder material and small particle material. (such as cement, fly ash, lime, food, etc.) without shaft screw conveyor is suitable for the material conveyor by viscous and winding. (e.g., sludge, biomass, waste, etc.) the working principle of screw conveyor is rotating spiral blade for screw conveyor conveying the material goes on, the material is not spinning force with the blades of screw conveyor is its own weight and screw conveyor casing material friction resistance of the material. Screw conveyor on the axis of rotation welding of spiral vane, the face of the blade type according to the different type has a solid surface of conveying material, belt type, such as blade surface type. Screw conveyor screw axis of the terminal at the direction of material movement have thrust bearings to the material to spiral axial reaction force, the captain is longer,
Main Technical Parameters of belt conveyor
Belt Width (mm) | Belt Length(m) / Power(kw) | Belt Speed (m/s) | Capacity (t/h) | ||
400 | ≤12/1.5 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.3-1.6 | 40-80 |
500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 40-80 |
650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 131-323 |
800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 278-546 |
1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-12 | 1.3-2.0 | 435-853 |
1200 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2.0 | 655-1284 |
Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons.
The Certificates of Zhengzhou Huahong Machinery Equipment Co.,Ltd
Welcome to visit our factory anytime !!!
Please contact us for more details:
If you have any needs on our belt conveyor machine equipment , please feel free to contact us by sending emails to us or through skype ! We will be very happy to provide our best prooduct and professional service for you! Thank you!
