Large Capacity Roller Chain Bucket Elevator for Mining

Large Capacity Roller Chain Bucket Elevator for Mining photo-1

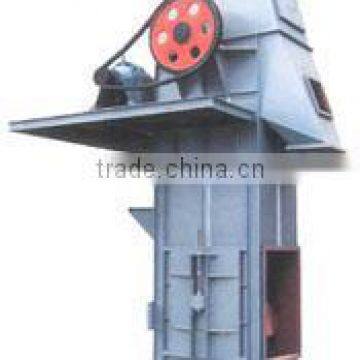

Large Capacity Roller Chain Bucket Elevator for Mining photo-2

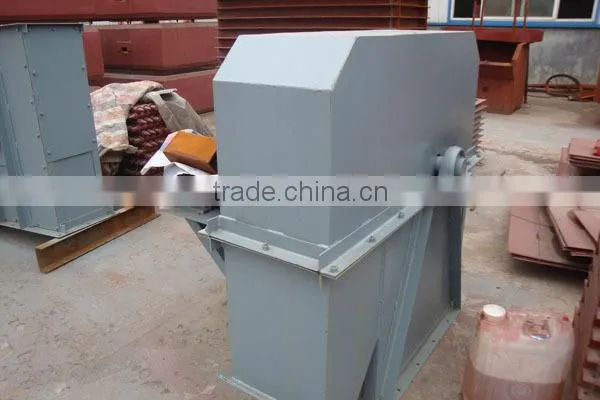

Large Capacity Roller Chain Bucket Elevator for Mining photo-3
US$ 1,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Bucket Conveyor
Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjing Port China or others
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Bucket Conveyor
Material Stainless Steel
Material Feature Heat Resistant
Structure Conveyor System
Load Capacity refer to specifications
Place of Origin China
Brand Name huahong
Model Number 160
Voltage refer to specifications
Power(W) 3-7.5
Dimension(L*W*H) refer to specifications
Certification BV CE ISO
After-sales Service Provided Engineers available to service machinery overseas



 large capacity roller chain bucket elevator  for mining



Introductions Bucket Elevator:

1.Bucket elevator is widely used in the transportation of coal,ores, rock, sand, soil, cement, grain and so on.

2.With large capacity of transportation and a wide range of lift distance to be chose from, our products will make you satisfied with its stable operation and long service life. vertical bucket elevator

3.Our design has been made with reference of advanced models at home or abroad.







Working principle:

Zhengzhou  Huahong bucket elevator scoop up the material from the nether storage, raising to the

top along with the conveyor belt. After bypassing the top wheel it turns downward, and the bucket

elevator dumpe the material into the tank.

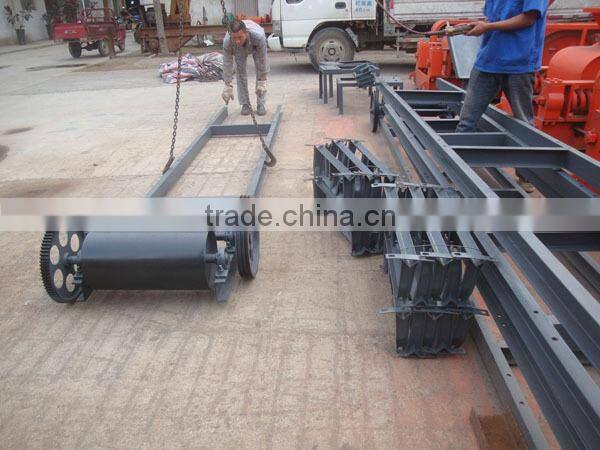

     large capacity roller chain bucket elevator for mining

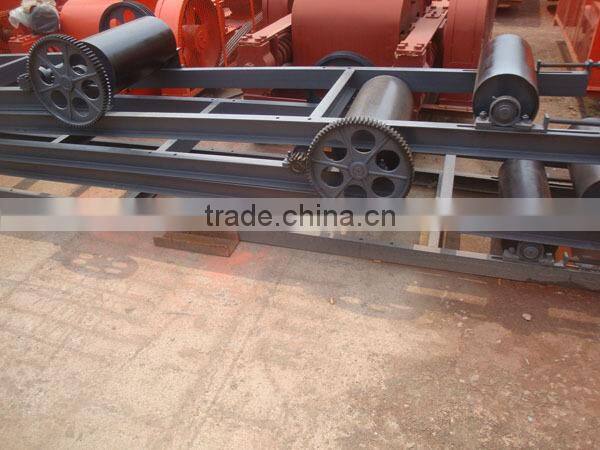

large capacity roller chain bucket elevator for mining

Parameters:

Specification

Max. lifting height

(m)

Conveying amount

(m³/h)

Pitch of buckets

(mm)

Motor power

(kw)

160 type 28 3-8 500 3-7.5
200 type 31.5 6-15 500 3-7.5
250 type 30.16 10-25 500 4-11
300 type 30.16 25-35 500 5.5-15
350 type 31 19-40 600 7.5-18.5
400 type 32 35-50 600 7.5-22
450 type 32.7 42-60 600 7.5-30
500 type 32.7 58-70 600 11-37
