Specifications
Metal sheet leveler1.excellent straightening performance
2.high quality
petitive price
4.easy operating

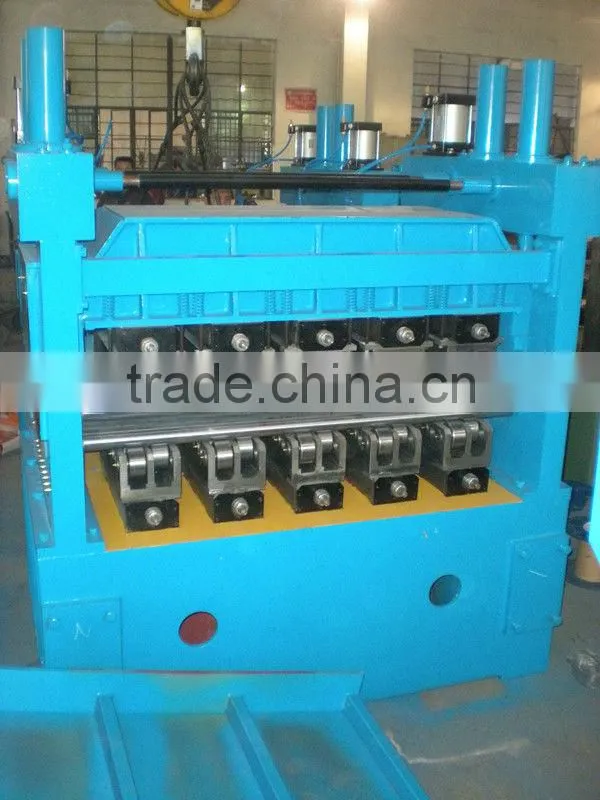

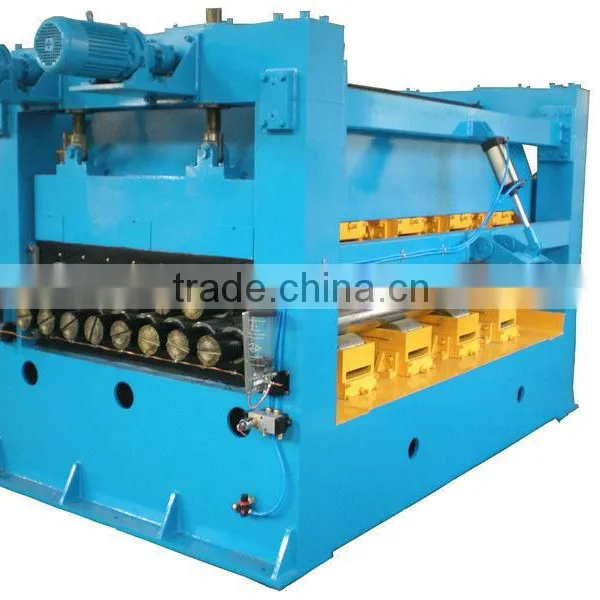

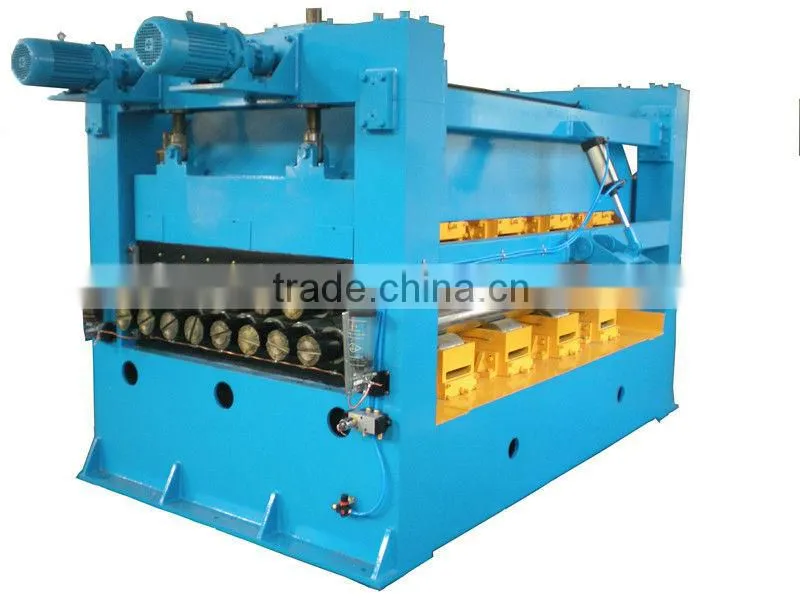

Metal sheet leveler
1.Structure: 17 Leveling rollers, which are driven by motor and reducer through distribution gearbox and universal joints.
2.Both the up rollers and down rollers are supported by support rollers and brackets, with adjustable support tightened force.
3.The angle and press-down extent of up rollers can be adjusted according to leveling thickness; Two adjusting styles: electric rough adjustment and manual fine adjusting.
4.Heavy needle bearings and plane bearings ensure leveling rollers to work without run-off phenomenon.
5.Concentrate lubrication by thin grease lubricating pump.
6.Parameters
a.leveling roller: 80mm×1350mm
b.Number of leveling rollers: 17 rollers
c.Material of rollers: 40Cr medium-frequency quenching HRC58°-60°
d.Material of Support rollers: 40Cr, quenching and tempering(HB230)
e. Motor: 45KW(DC speed-adjustable)
f.Speed reducer: JZQ650
Universal joint: SWC85
g.Gearbox: 20CrMnTicenmented quenching
-down motors: 2sets, 2.2KW cycloid motor.
Detail specification: |
thickness |
width |
Length |
Leveling speed |
SW-2 x 1000 |
0.2-2.0mm |
400-1000mm |
adjustable |
Max 100m/min |
SW-3 x 1250 |
0.3-3.0mm |
500-1250mm |
adjustable |
Max 100m/min |
SW-4 X 1500 |
0.6-4mm |
500-1500mm |
adjustable |
Max 80m/min |
Note: The data in the form just as reference according to general ranges, we always design and make each steel coil cut-to-length line (also known as cut-to-length machine) according to each customer's specific requirements, so each customer can buy his own well-content line from us. | ||||
