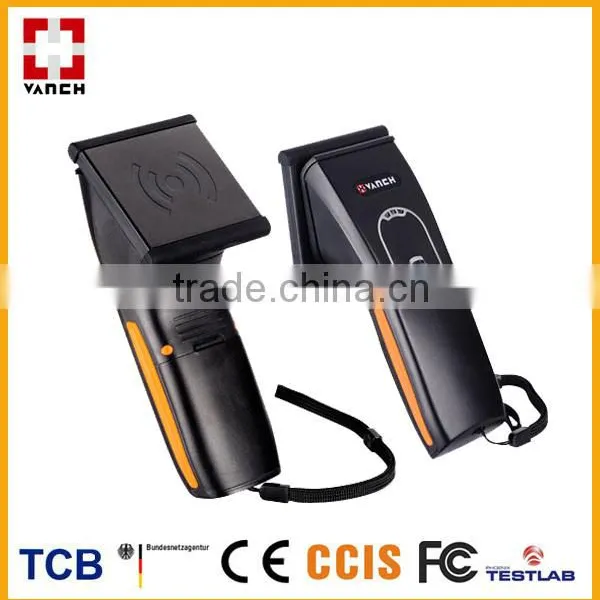

Asset counting system Handheld uhf rfid reader with Bluetooth 3G
Features:
1.online linking to PDA,smartphone,tablet PC can reduce repeat purchasing cost;
2. support tags reading and writing with protocol ISO-18000-6B,ISO-18000-6C(EPC G2);
3. easy to read tag;
4. low cost, cheaper than handheld reader with PDA;
5. industrial structure, reliable design, adapt to harsh work environment;

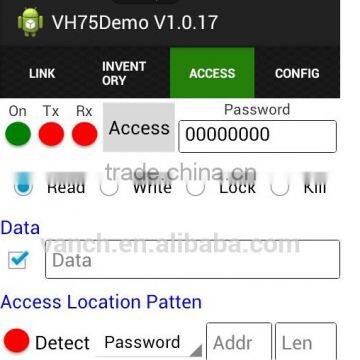

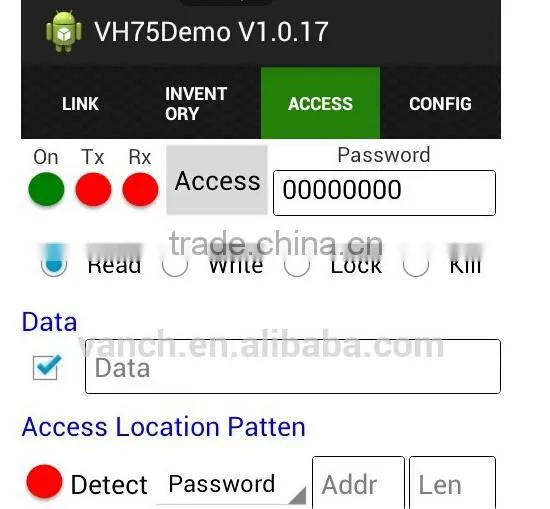

6. provide with Android OS demo software and SDK;
Model # |
VH-75 |
Performance Index | |
Frequency range |
865-868MHZ,902-928MHZ(can be customized) |
FM mode |
FHSS or fixed frequency, can be set by software |
RF output |
30 dBm, adjustable |
Communication interface |
USB1.1, bluetooth IEEE802.15 with rate 1Mbps |
Tag operation performance | |
Read/Write distance |
read>200cm, write>20cm |
Protocol |
ISO-18000-6B/ISO-18000-6C(EPC G2) |
Mechanical electrical performance | |
Dimension |
180(L)*55 (W)*30(H)mm |
Power supply |
Chargeable polymer battery(3.7V,3200mAH) |
Tag reading hint |
vibration,buzzer,LED |
Memory card |
2G(MiniSD) |
Standby time |
150 hours,scan times for one-time charge:5000 times |
Weight |
250g |
Humidity |
5% to 95%, non-condensing |
IP rating |
IEC IP56 |
Operating temperature |
-20ºC to +50ºC |
Storage temperature |
-25°C to +70°C |

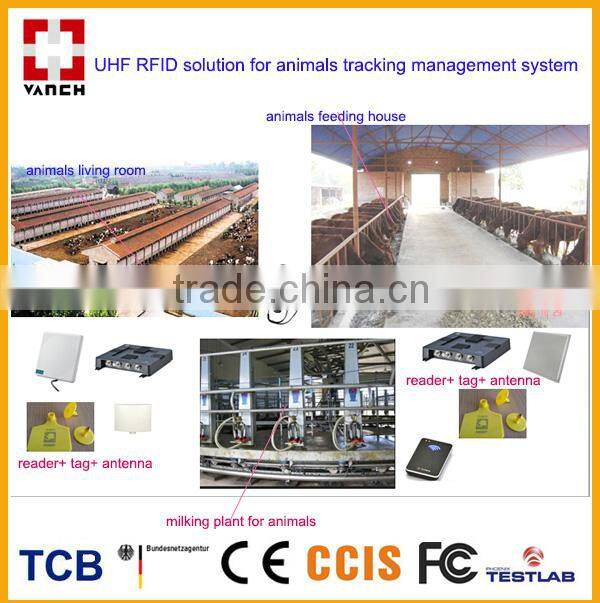

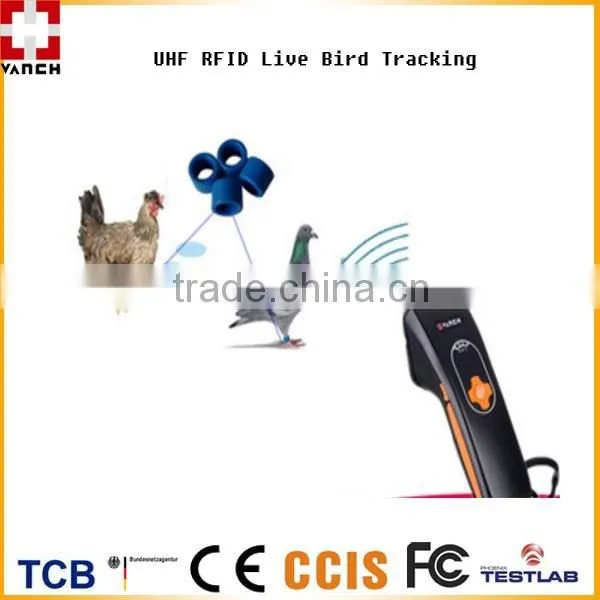

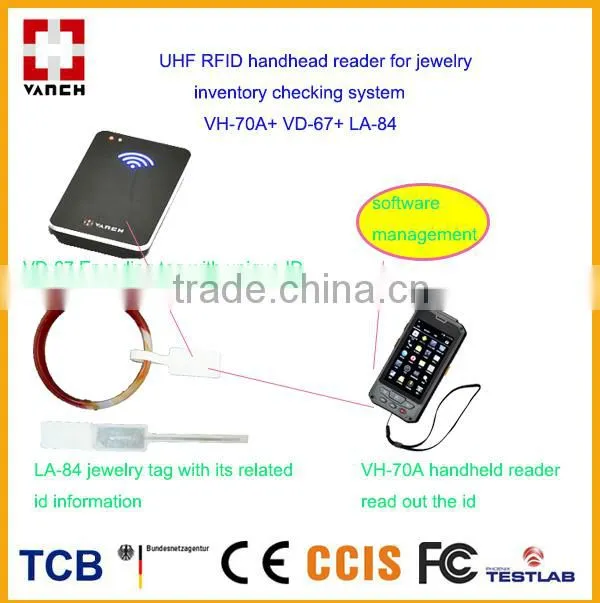

Animal tracking, asset tracking, inventory checking,container management system etc.
Not only for this, we did some other related projects as well, pls check the project pictures.
Welcome to contact me at mail beata at if you have any interest!
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
