2 Meters Android Rfid Uhf Handheld Reader With Free Sdk/API

2 Meters Android Rfid Uhf Handheld Reader With Free Sdk/API thumbnail-1
2 Meters Android Rfid Uhf Handheld Reader With Free Sdk/API photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VANCH
Model Number:
VH-70A
Contact Supplier Request Quote Chat Now
Shenzhen Vanch Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name VANCH
Model Number VH-70A

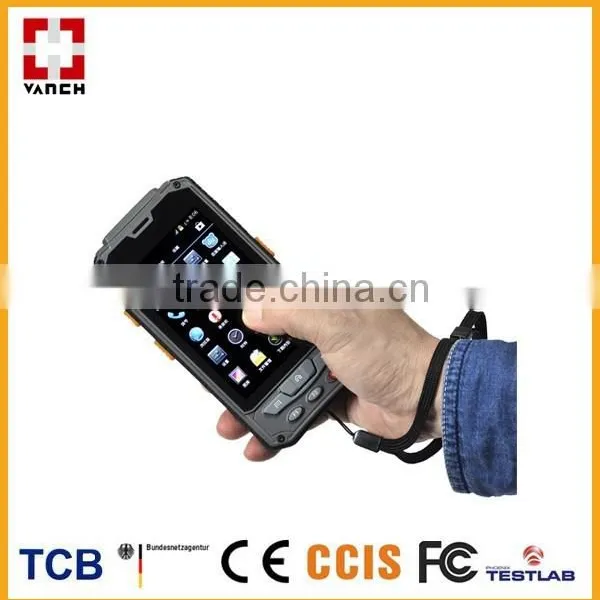

2 meters android rfid uhf handheld reader with free sdk/API



Features

1. Support bluetooth, WIFI GPRS/WCDMA and other communication method

2.Support 1d barcode reading

3. Reading distance to EPC C1 GEN2/IS018000—6C 900MHZ Tag larger then 2 meters

4. Support 5 million pixel camera

5.Support infrared communication module

2 meters android rfid uhf handheld reader with free sdk/API2 meters android rfid uhf handheld reader with free sdk/API2 meters android rfid uhf handheld reader with free sdk/API



Features
The processor Cortex A9 1GHZ The processor; Cortex A9 1GHZ
Memory capacity ROM:EMMC 32Gb RAM: LPDDR2 4Gb
The operating system  Android 4.03
Wireless communications  GPRS(option)  GPRS, EDGE , 4-band 900/1800,850/1900
WCDMA(3G, option)  band 850/2100,Cat.8 HSDPA Cat.6 HSUPA
WIFI(standard)  Conform to the IEEE 802.11b/g
Bluetooth(option)  Conform to the Bluetooth 4.0
Display 4.3”IPS display, The resolution of the 480*800, Gabo Lingual perspective, the sun is visible
Touch screen Support more capacitive touch;
Indicator light Network indicator light, charge indicator;
audio Support the speech;
Micro SD card( Micro SD card) Support 32 gb MICRO SD card;
Data security Product is the data security protection, in a completely off electricity (remove the battery and the power converter), data is not lost
GPS indicators Channel: channel 12
Receive types: L1, C/A code and carrier phase smoothing
Re-capture: < 1 s
The latest ASIC chip; A squadron of patent algorithms; EVEREST multipath suppression technology
Error range: < = 10 meters
Navigation map Support navione, baidu, Google, gold and other navigation map;
The input method Full-screen handwriting, half screen handwriting, strokes and pinyin, Numbers, letters, symbols
Physical interface High-speed USB2.0 interface equipment end, 3.5 stick related plug-in interface
camera(option) The rear 5 million pixel camera with flash;
The flashlight Low power consumption LED lights lighting, emergency use;
1D barcode(SE4500/N431X)
Read code system Can read all kinds of main one-dimensional bar code: Code 39,Code 93,Code 128,Codebar,EAN-13,EAN-8,UPC-A,UPC-E,ITF 14,UCC/EAN-128,ITF 25,Matrix 25,EAN-128,ISBN
Read distance 0 cm ~  50 cm
Read rate First read rate of 99% or more, the error rate of 0.01% or less, false reject rate is 0.01% or less
2D barcode
Moto-SE4500  Hardware decoding, the decoding speed and error rate of 0.01% or less;
Honeywell-5180  Hardware decoding, the decoding speed and error rate of 0.01% or less;
RFID
UHF(915MHz) More than 2m distance for EPC C1 GEN2 / ISO18000-6 - c protocol of 900 MHZ tag read operation (associated with tags and antenna)
HF (13.56MHz) 0 ~ 7 cm range for ISO15693, ISO14443 double deal 13.56 MHz tags for reading and writing (associated with tags and antenna)
LF 125 K / 134.2 K animal ear tag;
PSAM  Support two PSAM card;
HF (CPU card read)  Support the CPU card read and write, used with PSAM;
Active in close communication  option)
Active 2.45 G  Distance is 200 m, 200 m label can be read all at once;
433M  Read more than 200 m distance, distance is adjustable;
Battery performance
The battery() 4000 mah lithium polymer battery, standby time: more than 150 hours, working time: more than 8 hours, ac adapter charging (1 a)
The battery standby time( After a full charge, the wireless communication function on standby, after 360 hours, can run normally
Battery charging time) Charging time < 4.5 hour
Charging time More than 8 hours (once charging)
The work environment
Operating temperature -20°C ~50°C
Storage temperature -20°C ~70°C
Relative humidity 10%~90%RH,non indensity
Protection grade IP65
Physical parameters
The total weight Less than 300g (including battery, charger are not included);
The fuselage size 148 (L) x 77.5 (W) x 27 (T) ± 2 mm
The attachment
Standard 1 1 lithium battery, charger, USB data line
