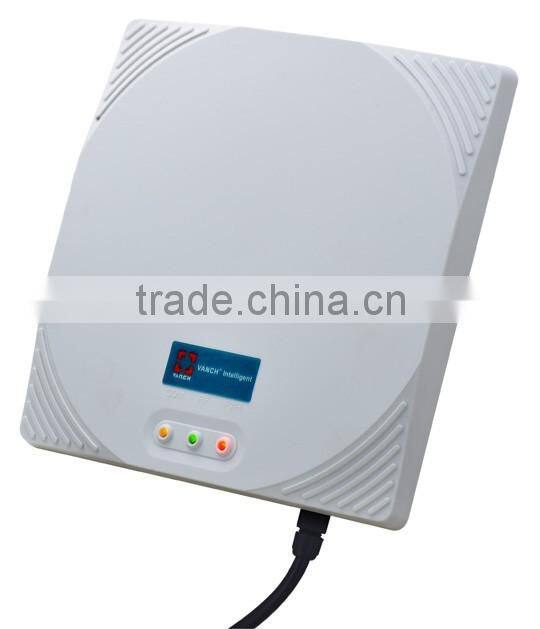

Vehicle uhf rfid access control system for parking
reading distance about 8-10m
rs232, tcp/ip, wiegand26/34
Introduction:Application: logistics, access control, parking management, manufacturing control and etc
Freatures:Reliable industry structure design, workable in varied severe environment.
Model# |
VI-89F |
Performance Index | |
Frequency range |
902-928MHZ(or customized) |
FM mode |
FHSS or fixed frequency, set by the software |
RF output |
30dBm adjustable;50Ω load |
Communication interface |
RS232,RS485,Wiegand26/34(TCP/IP) |
Communication rate |
Serial port 9600~115200bps,RJ45 10Mbps |
GP I/O interface |
12 pin + 4 pin |
Power dissipation |
average<10W |
Application software |
Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance |
6~10m equipped with 9dbi antenna(tag dependent) |
Air interface |
EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B |
Mechanical and Electrical Performance | |
Dimension |
306(L)*306(W)*25(H)mm(excluding mounting bracket and external wiring) |
Power supply |
Equipped with power convertor 220V AC input, +9V/3A DC output |
Weight |
2.6Kg |
Installation |
Embrace rod mounting |
Diameter of support rod |
40-50mm |
Humidity |
5% to 95%, non-condensing |
Protection grade |
IEC IP65 |
Operation temperature |
-20 ºC to +60 ºC |
Introduction:
UHF RFID reader, hands free access rfid reader, access control reader,long range read distance, integrated reader, usually use in many kinds of projects, especially in vehicle identification or car parking.
This is a popular integrated reader, Compatible with ISO18000-6C (EPC C1GEN2) and ISO18000-6B.
It is an industry grade product for harsh environment, IP-65 protection case for water-proof, easy to install.
Application:

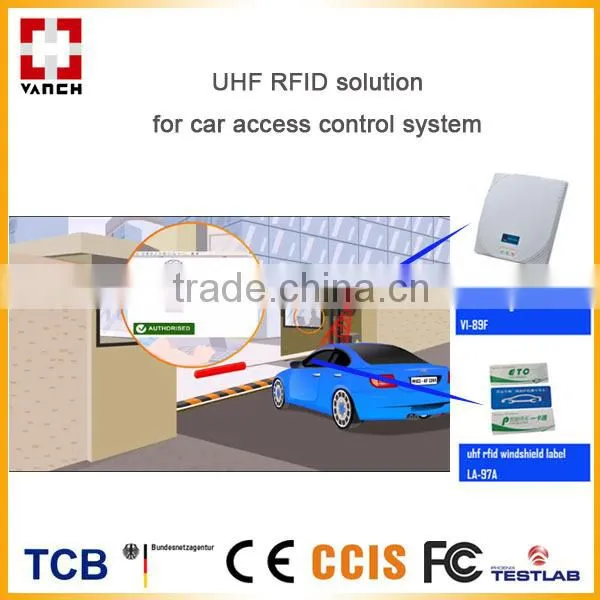

1. Parking management: Long range intelligent parking management and automatic charge without stop the car
2. Production line management: Goods identification for production flow
3. Auto Access control: Long range access control management for custom, sea port
4. Logistics and warehouse management
5. People auto registry for important meeting or exhibition
6. Automatic weighing and data capture.
Frequency range |
902-928MHZ(or customized) |
FM mode |
FHSS or fixed frequency, set by the software |
RF output |
30dBm adjustable;50Ω load |
Communication interface |
LAN,RS232,RS485,Wiegand26/34,IEEE 802.11 |
Communication rate |
Serial port 9600~115200bps,RJ45 10Mbps |
GP I/O interface |
12 pin + 4 pin |
Power dissipation |
average<10W |
Application software |
Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance |
6~10m equipped with 9dbi antenna(tag dependent) |
Air interface |
EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B |
Mechanical and Electrical Performance | |
Dimension |
306(L)*306(W)*25(H)mm(excluding mounting bracket and external wiring) |
Power supply |
Equipped with power convertor 220V AC input, +9V/3A DC output |
Weight |
2.6Kg |
Installation |
Embrace rod mounting |
Diameter of support rod |
40-50mm |
Humidity |
5% to 95%, non-condensing |
Protection grade |
IEC IP65 |
Operation temperature |
-20 ºC to +60 ºC |
