Product Details
Place of Origin: | Guangdong, China | Brand Name: | VANCH | Model Number: | VH-70A |
Product Description
uhf rfid for trees management middle range handheld reader
Vanch could provide the encomic environmental solution for trees management with UHF RFID technology.

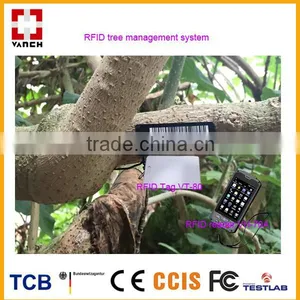

Give each tree a unique ID tag, take a handheld reader to read and record its states at different time.
System hardware equipments:

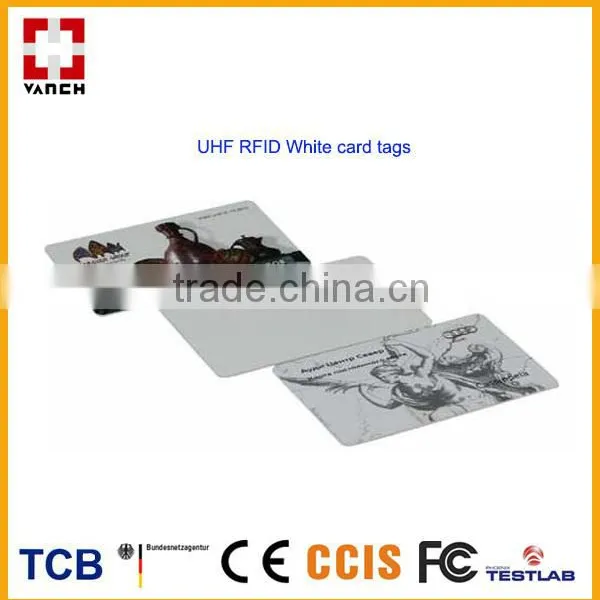

UHF RFID tag: VT-80 (write with trees information)

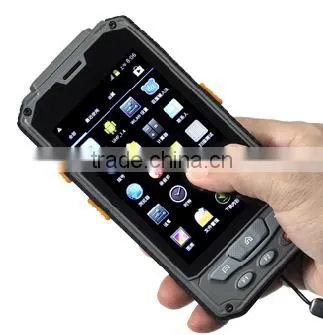

UHF RFID handheld reader: VH-70A

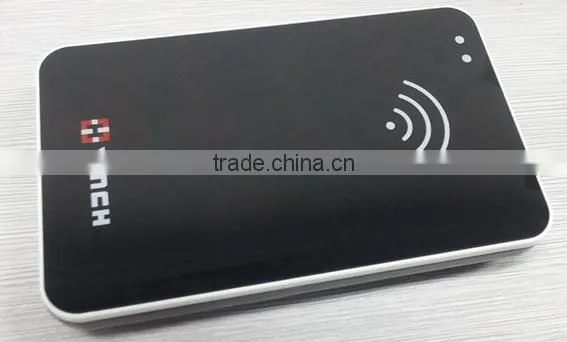

UHF RFID desktop reader( tag encoder): VD-67
Specification | |
Model# | VH-70A |
Performance & Physical parameter | |
Protocol | EPC Class1 Gen2/ ISO18000-6C |
CPU | High speed ARM platform, main frequency 450MHZ |
OS | Android 4.0 |
RAM | 4MB |
Memory card | support 32G at most |
Barcode module options | |
1D module | SE4500/N431X |
WIFI | IEEE 802.11b/g(Standard configuration) |
Extend module | GPRS module, 2.45G module(optional) |
Communication interface | WIFI, Bluetooth, USB |
Audio | Typhoon, support multi-media function |
Dimension | 148*77.5*27(+/-2mm) |
Weight | 300g(charger are not included) |
Display & physical parameter | |
Screen | 4.3”IPS display, The resolution of the 480*800, Gabo Lingual perspective, the sun is visible |
Battery | rechargeable lithium polymer battery |
Operation temperature | -20℃ ~50℃ |
Storage temperature | -20℃ ~70℃ |
Humidity | 10%~90%RH |
Accessory | 1 lithium battery charger, USB cable |
Frequency parameter | |
EU | 865-868MHZ |
US | 902-928MHZ, or customized optional |
Read distance | 3 meters at max(tag dependent) |
Write distance | 1 meters at max(tag dependent) |
- We accept Paypal, T/T , Western Union as payment method.
- We will be happy to Combine shipping for more than 1 item ship to the same address
- Please make the payment in 3-5 days after you place the order to arrange the production.
- We make sure all of items are 100% in good status before shipment
- The product have one year warranty from the buying date. It's ok to send back the product for repairing during the warranty.
Not only for this, we did some other related projects as well, pls check the project pictures.
Welcome to contact me at mail beata at if you have any interest!
