1m middle range rfid handheld reader
- Support bluetooth, WIFI GPRS/WCDMA and other communication method
- Support 5 million pixel camera
- Support infrared communication module
The processor |
Cortex A9 1GHZ The processor; Cortex A9 1GHZ |
|
Memory capacity |
ROM:EMMC 32Gb RAM: LPDDR2 4Gb |
|
The operating system |
Android 4.03 |
|
Wireless communications |
GPRS(option) |
GPRS, EDGE , 4-band 900/1800,850/1900 |
WCDMA(3G, option) |
band 850/2100,Cat.8 HSDPA Cat.6 HSUPA |
|
WIFI(standard) |
Conform to the IEEE 802.11b/g |
|
Bluetooth(option) |
Conform to the Bluetooth 4.0 |
|
Display |
4.3”IPS display, The resolution of the 480*800, Gabo Lingual perspective, the sun is visible |
|
Touch screen |
Support more capacitive touch; |
|
Indicator light |
Network indicator light, charge indicator; |
|
audio |
Support the speech; |
|
Micro SD card( Micro SD card) |
Support 32 gb MICRO SD card; |
|
Data security |
Product is the data security protection, in a completely off electricity (remove the battery and the power converter), data is not lost |
|
GPS indicators |
Channel: channel 12 |
|
Receive types: L1, C/A code and carrier phase smoothing | ||
Re-capture: < 1 s | ||
The latest ASIC chip; A squadron of patent algorithms; EVEREST multipath suppression technology | ||
Error range: < = 10 meters | ||
Navigation map |
Support navione, baidu, Google, gold and other navigation map; |
|
The input method |
Full-screen handwriting, half screen handwriting, strokes and pinyin, Numbers, letters, symbols |
|
Physical interface |
High-speed USB2.0 interface equipment end, 3.5 stick related plug-in interface |
|
camera(option) |
The rear 5 million pixel camera with flash; |
|
The flashlight |
Low power consumption LED lights lighting, emergency use; |
|
1D barcode(SE4500/N431X) |
|
|
Read code system |
Can read all kinds of main one-dimensional bar code: Code 39,Code 93,Code 128,Codebar,EAN-13,EAN-8,UPC-A,UPC-E,ITF 14,UCC/EAN-128,ITF 25,Matrix 25,EAN-128,ISBN |
|
Read distance |
0 cm ~ 50 cm |
|
Read rate |
First read rate of 99% or more, the error rate of 0.01% or less, false reject rate is 0.01% or less |
|
2D barcode |
|
|
Moto-SE4500 |
Hardware decoding, the decoding speed and error rate of 0.01% or less; |
|
Honeywell-5180 |
Hardware decoding, the decoding speed and error rate of 0.01% or less; |
|
RFID |
|
|
UHF(915MHz) |
More than 2m distance for EPC C1 GEN2 / ISO18000-6 - c protocol of 900 MHZ tag read operation (associated with tags and antenna) |
|
HF (13.56MHz) |
0 ~ 7 cm range for ISO15693, ISO14443 double deal 13.56 MHz tags for reading and writing (associated with tags and antenna) |
|
LF |
125 K / 134.2 K animal ear tag; |
|
PSAM |
Support two PSAM card; |
|
HF (CPU card read) |
Support the CPU card read and write, used with PSAM; |
|
Active in close communication |
option) |
|
Active 2.45 G |
Distance is 200 m, 200 m label can be read all at once; |
|
433M |
Read more than 200 m distance, distance is adjustable; |
|
Battery performance |
|
|
The battery() |
4000 mah lithium polymer battery, standby time: more than 150 hours, working time: more than 8 hours, ac adapter charging (1 a) |
|
The battery standby time( |
After a full charge, the wireless communication function on standby, after 360 hours, can run normally |
|
Battery charging time) |
Charging time < 4.5 hour |
|
Charging time |
More than 8 hours (once charging) |
|
The work environment |
|
|
Operating temperature |
-20℃ ~50℃ |
|
Storage temperature |
-20℃ ~70℃ |
|
Relative humidity |
10%~90%RH,non indensity |
|
Protection grade |
IP65 |
|
Physical parameters |
|
|
The total weight |
Less than 300g (including battery, charger are not included); |
|
The fuselage size |
148 (L) x 77.5 (W) x 27 (T) ± 2 mm |
|
The attachment |
|
|
Standard |
1 1 lithium battery, charger, USB data line |
|

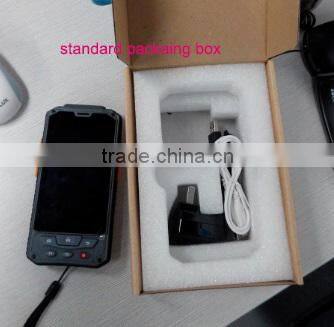

Standard carton box with protecting material for each reader.
Goods will be shipped to you by express, such as DHL, FEDEX, UPS, TNT and EMS etc.
Animal tracking, asset tracking, inventory checking,container management system etc.
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
