860-960 mhz uhf rfid 860-960 mhz uhf rfid embedded reader module

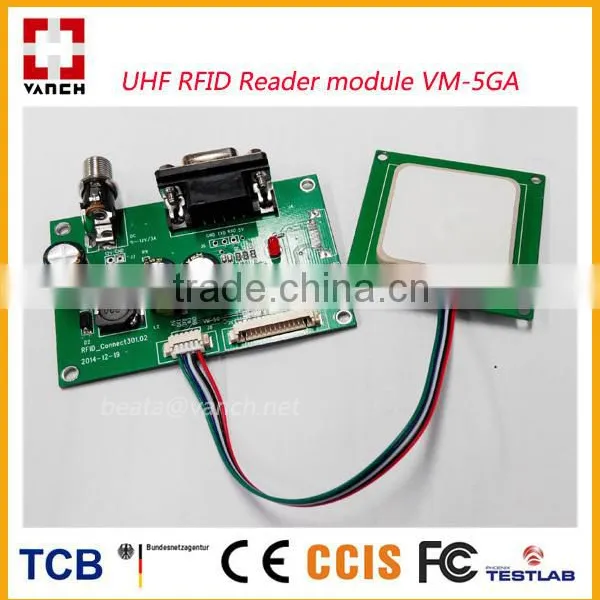

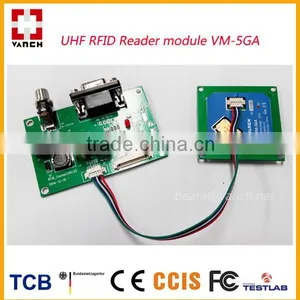

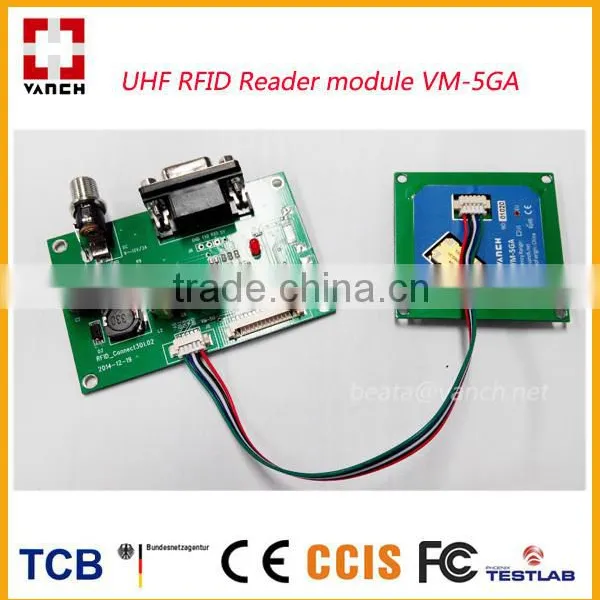

Product Name: VANCH reader module arduino for uhf gen 2 rfid tags
Item Code: VM-5GA
Category: Access Control Card Reader Add to Favorite Categories

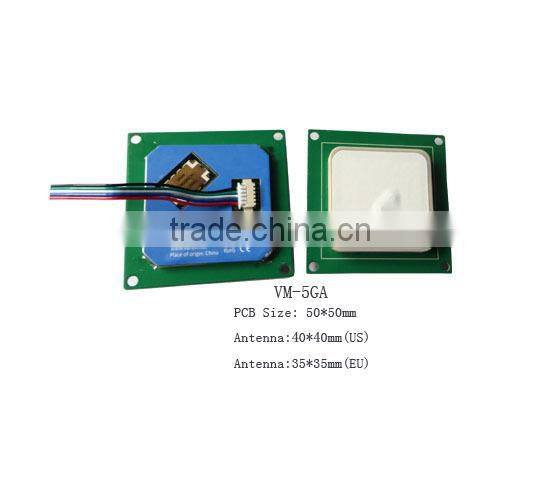

Short Description: Pcb size: 50*50mm , Ceramic antenna size: 40*40mm Overall height :8.5mm ,
840-960Mhz, CE/FCC, 1-2m read disance, TTL Uart interface , 1 set RFID reader module with integrated ceramic antenna, 1x SDK pack
Quantity: 1 Piece
Gross Weight/Package: 0.2( kg )
Model No. |
VM-5GA |
| |
Electrical parameters | |
Working Voltage |
DC 3.5V – 5 V |
PCB size |
Pcb size: 50*50mm , Ceramic antenna size: 40*40mm Overall height: 8.5mm |
Standby current |
<80mA (EN pin high level) |
Sleeping current |
<100uA (EN pin low level) |
Operation current |
180mA @ 3.5V (26 dBm Output,25°C). 110mA @ 3.5V (18 dBm Output,25°C). |
Operating time |
<100mS. |
Operation temp. |
- 20 °C - + 70 °C |
Storage temp. |
- 20 °C - + 85 °C |
Working humidity |
< 95% ( + 25 °C) |
Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
Frequency |
840-960MHZ |
|
Working area support |
US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 Mainland China;Japan;Korea;Malaysia;Taiwan |
Output power |
18-26 dBm |
Read/write range |
Read: 200-250cm;write: 10-50cm(adjusted) |
Output power accuracy |
+/- 1dB |
Output power flatness |
+/- 0.2dB |
Receive sensitivity |
< -70dBm |
Store tag peak speed |
> 50pcs/sec |
Tags storage capacity |
200pcs tags @ 96 bit EPC |
Tags RSSI |
support |
Communication interface |
TTL Uart interface |
Communication baud rate |
115200 bps(default and recommend) 38400bps |
Heat-dissipating method |
Air cooling(no need for out install cooling fin) |

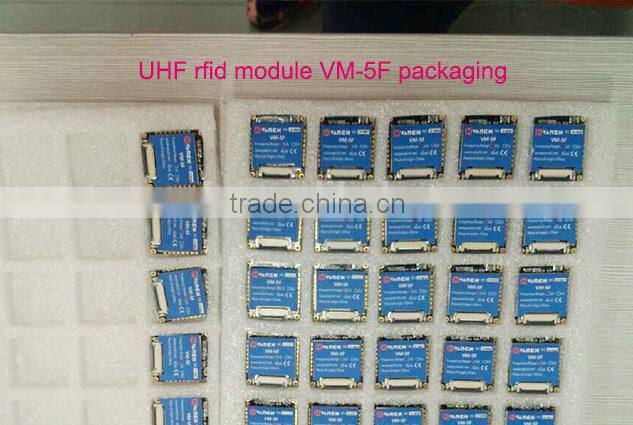

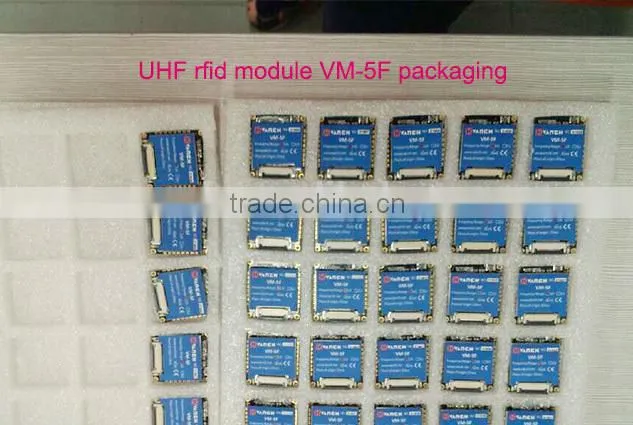

Standard carton box with protecting material for each reader.
Goods will be shipped to you by express, such as DHL, FEDEX, UPS, TNT and EMS etc.

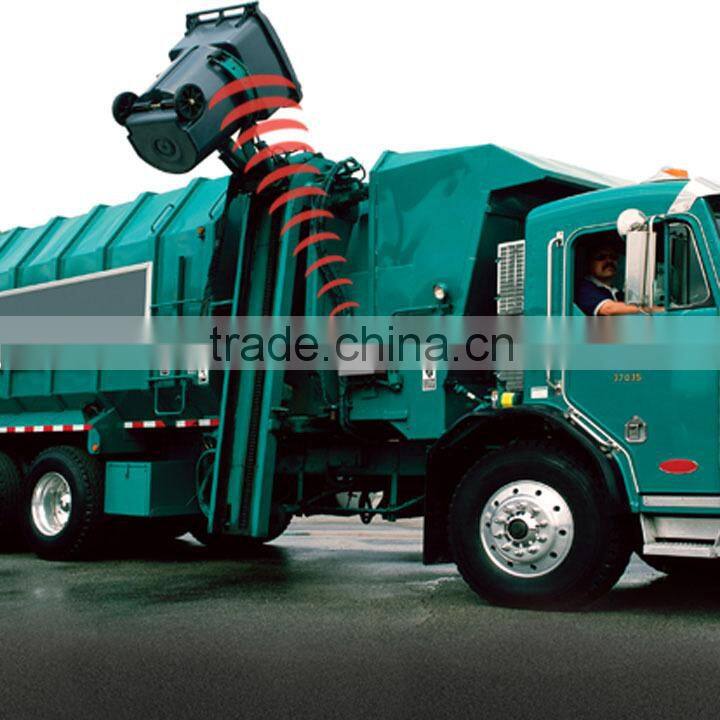

Insductrial tools management system, handheld reader integrator system, waste bin mangemtn system and etc.
- We accept Paypal, T/T , Western Union as payment method.
- We will be happy to Combine shipping for more than 1 item ship to the same address
- Please make the payment in 3-5 days after you place the order to arrange the production.
- We make sure all of items are 100% in good status before shipment
- The product have one year warranty from the buying date. It's ok to send back the product for repairing during the warranty.
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
If you want to know more details, please kindly contact me as the following:
