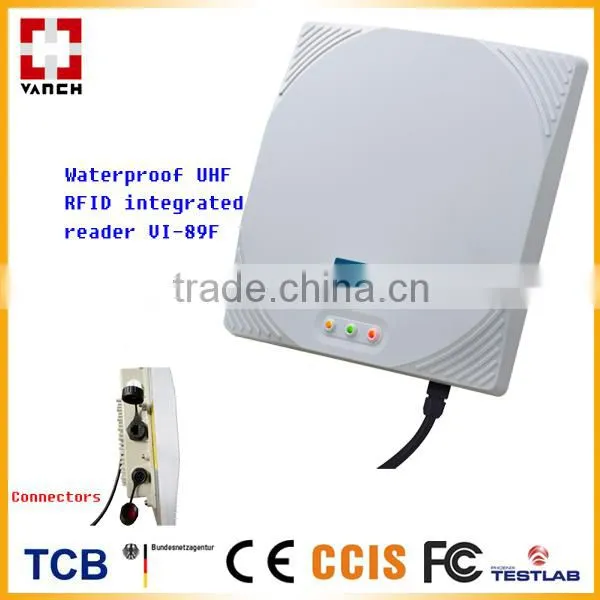

RS232 Long Range Uhf Rfid Integrated Reader for Waste Bin Management System

Name: RS232 Long Range Uhf Rfid Integrated Reader for Waste Bin Management System
Brand: VANCH
SKU: 101694057
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VI-89F

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VI-89F

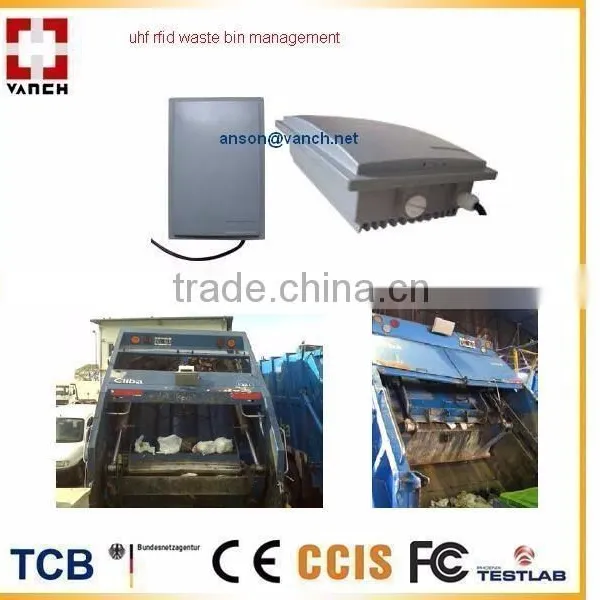

RS232 long range uhf rfid integrated reader for waste bin management system

reading distance about 8-10m

rs232, tcp/ip, wiegand26/34

Introduction:Application: logistics, access control, parking management, manufacturing control and etc

Freatures:Reliable industry structure design, workable in varied severe environment.

Model#	VI-89F
Performance Index
Frequency range	902-928MHZ(or customized)
FM mode	FHSS or fixed frequency, set by the software
RF output	30dBm adjustable;50Ω load
Communication interface	RS232,RS485,Wiegand26/34(TCP/IP)
Communication rate	Serial port 9600~115200bps,RJ45 10Mbps
GP I/O interface	12 pin + 4 pin
Power dissipation	average<10W
Application software	Provide with API SDK and VC, VB, Java application routines
Tag Operation Performance
Reading distance	6~10m equipped with 9dbi antenna(tag dependent)
Air interface	EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B
Mechanical and Electrical Performance
Dimension	306(L)306(W)25(H)mm(excluding mounting bracket and external wiring)
Power supply	Equipped with power convertor 220V AC input, +9V/3A DC output
Weight	2.6Kg
Installation	Embrace rod mounting
Diameter of support rod	40-50mm
Humidity	5% to 95%, non-condensing
Protection grade	IEC IP65
Operation temperature	-20 ºC to +60 ºC
