uhf fixed rfid long range reader 1-15m for marathon timing
We design the UHF RFID timing system for running, bike racing and triatlon, go-karts this system can do muilt-tag detecting in auto mode, it save manpower. According to application software we get timing and rank easier, anti-cheating in process. If you need more details pls contact beata(at).
VANCH go-carts race timing system including:

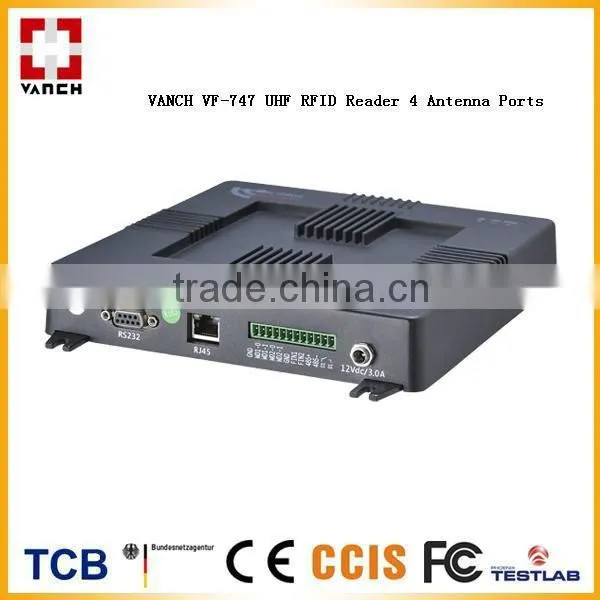

UHF RFID fixed reader: VF-747(4 antenna ports)
UHF RFID antenna: VA-912R
UHF RFID tag: VT-89B
UHF RFID desktop reader: VD-67
Go-karts race timing sytem software: TS-006
1. Write unique ID. into tag VT-89B by desktop reader VD-67.
2. Install rfid tag VT-89B at the front and back of the go-carts.

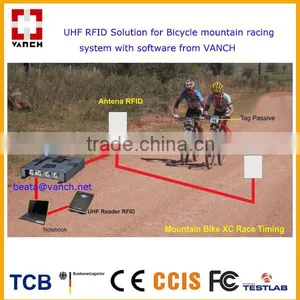

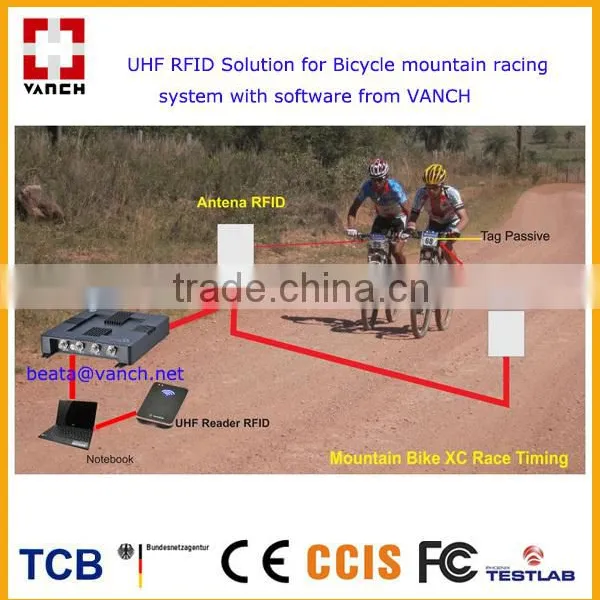

3. Install rfid reader with antenna at the start line/finish line of the race.
4. The tags will be read when go-carts go through the start line/finish line.
5. The reader will transmit the tag data to the server with timing system software.
6. User could check the record on the software or a development online webpage.
Model |
VF-747 |
| |
Performance Index | |
Frequency range |
860-868MHZ, 902-928MHZ(can be customized) |
Frequency modulation |
FHSS or fixed-frequency, can be set by software |
RF output |
+10.0 to +32.5 dBm; 50 ohm load. |
The number of antennas |
1 SMA antenna connector; 2 SMA antenna connector; 4 SMA antenna connectors for selections |
Communication interface |
10M/100MAdaptive Ethernet, RS232, RS485, Wiegand26/34 interface |
Communication rate |
Serial rate 9600~115200bps, RJ45 is 10Mbps |
Secure firmware upgrade |
The upgrade mechanism can be extended |
input / output (GPIO) |
2 inputs, 1 output |
Certifications |
CE/FCC |
Application software |
Supply API SDK and VC and VB, Delphi application routines |
Tag Operation Performance | |
Reading distance |
8dbiAntenna configuration, typical read range: 3 to 25 m (depends on tag) |
Protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
Maximum receiver sensitivity |
-82 dBm;Maximum return loss: 10 DBm |
Mechanical electrical performance | |
Dimension |
200 (L) * 200 (W) * 35 (H) mm |
Power |
With 220V AC input, the output of +12 V/3A DC power converter, and the power consumption is below 1W. |
Weight |
1.1KG |
Humidity |
5% to 95%, Non-condensing |
IP rating |
IEC IP51 |
Operating Temp. |
-20 ºC to +60 ºC |
Storage Temp. |
-40°C to 80°C |

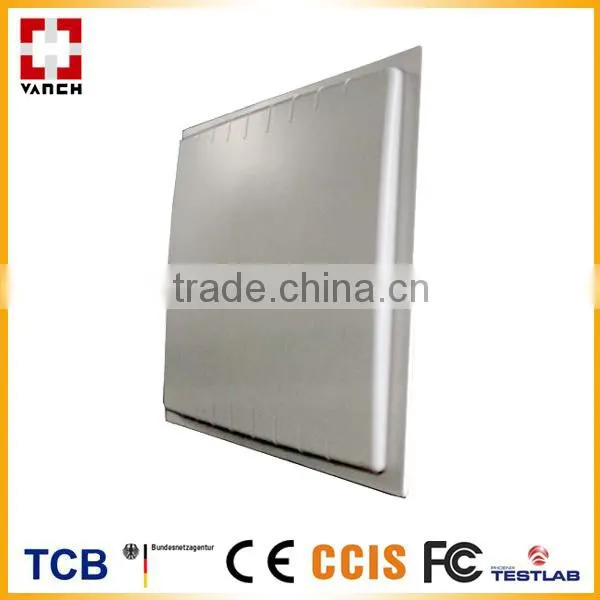

Model |
VA-912 |
|
| ||
Performance Index | ||
Frequency |
865-868MHz; 902-928 MHz (can be customized) |
|
Input Impedance |
50 Ohm load |
|
Antenna connector |
N female antennas connector or can be customized. |
|
Gain-dBi |
12dBi |
|
VSWR |
≤1.3 |
|
Polarization |
Linear polarization or circular polarization |
|
Bandwidth |
26MHZ |
|
Front to Back Ratio -db |
≥18 |
|
Vertical 3.0dB Beam width-° |
35 |
|
Horizontal3.0Db Beam width-° |
36 |
|
Dimension |
450*450*40mm |
|
IP rating |
IP 65 |
|
Weight |
1.8kg |
|
Shell Material |
ABS plastic |
|
Model# |
VT-89(6C/6B) |
| |
Performance Index | |
Protocol |
EPC CLASS1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
Chip |
NXP(SLXLXM) |
Frequency |
840—960MHZ |
Memory capacity |
96/368/512/880/1024/2048bit |
Dimension |
244x12x13 mm |
Work mode |
Read/Write |
Storage time |
>10years |
Erasable times |
>100,000times |
Material |
PCB antenna, ABS cover+Aluminum alloy back panel |
Application |
License plate tag, Mount on the license plate position |
Go-karts timing, bicycle timing, race timing, Swimming timing etc.
Not only for this, we did some other related projects as well, pls check the project pictures.
Welcome to contact me at mail beata at if you have any interest!
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
If you want to know more details, please kindly contact me as the following:
