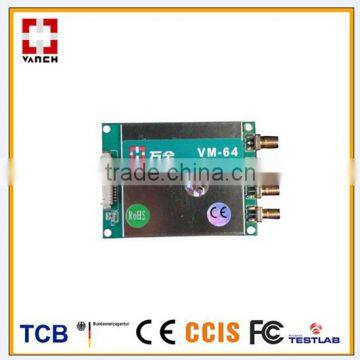

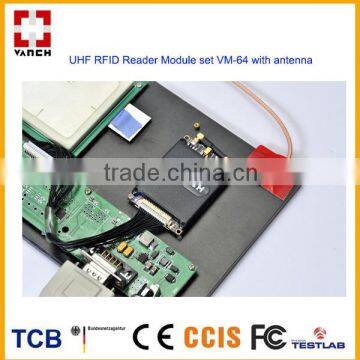

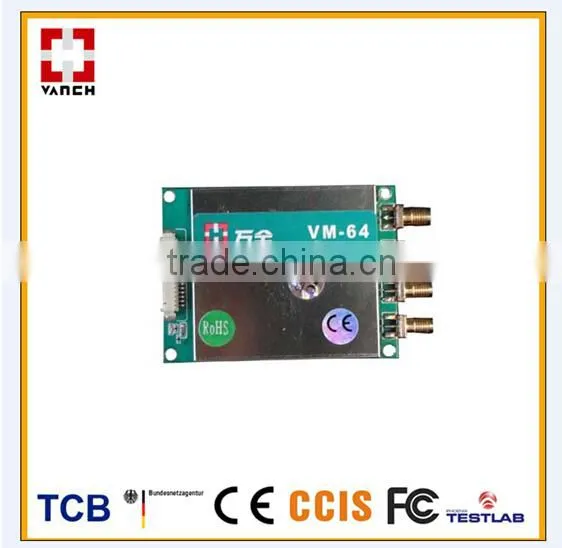

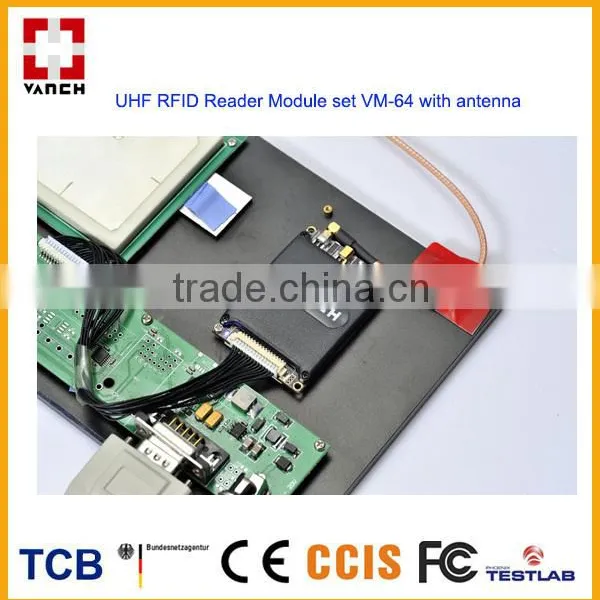

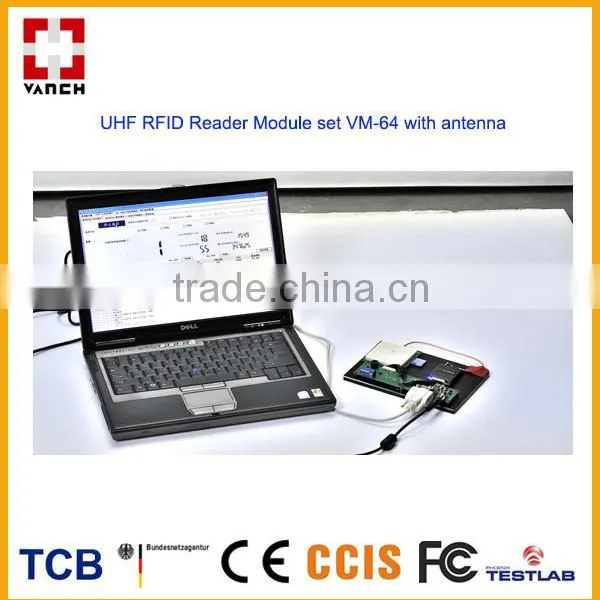

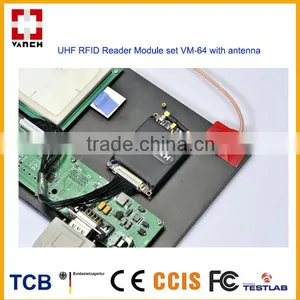

860-960Mhz Impinj R2000 long range uhf rfid module passive fixed reader
Features:
1, Full support protocols of ISO-18000-6B,ISO-18000-6C(EPC G2)
2, operating frequency: 865-868MH /902-928MHZ (can be adjusted according to different countries or regions)
3, Reading distance can reach 4 meters above, is best choice to apply RFID reader integration and development.
Physical parameters:
Length (PCB length) mm |
55.5 mm |
Length (Including the RF connector) mm |
60 mm |
Width mm |
39.5 mm |
Height mm |
7.5 mm |
Operating Temp. |
-20°C– +60 °C |
Storage Temp. |
-20°C– +85 °C |
Operating Humidity |
< 95% ( + 25 °C) |
Antenna connector
MMCX connector |
50Ohm |
|
SMA connector |
50Ohm |
options |
Electrical parameters
|
minimum |
typical |
Maximum |
Protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
||
Frequency |
860MHz |
|
960MHz |
Voltage |
3.7V |
4.2V |
5V |
Operating Current (30dBm output) |
1.1A |
1.2A |
1.3A |
Standby current |
50mA |
60mA |
70mA |
Maximum output power |
|
33dBm |
|
Minimum output power |
|
20dBm |
|
Output power accuracy |
|
+/-1DB |
|
Output power flatness |
|
+/-0.2DB |
|
Antenna connector protection |
|
Support |
|
Tag RSSI |
|
Support |
|
Antenna impedance matching measurement |
|
Support |
|
Dense reader mode (DRM) |
|
Support |
|
Ambient temperature measurements |
|
Support |
|
ESD protection |
|
Multiple |
|
Connector PIN definition:
Connector Model : Molex 53261-1571 | ||
PIN |
Definition |
Description |
1 |
GND |
Grounding at the same time |
2 |
GND |
|
3 |
3.7V – 5V DC |
Connect to power at the same time |
4 |
3.7V – 5V DC |
|
5 |
GPIO 1 |
Universal IO interface |
6 |
GPIO 2 |
Universal IO interface |
7 |
GPIO 3 |
Universal IO interface |
8 |
Buzzer |
driven |
9 |
UART_RXD |
TTL Level |
10 |
UART_TXD |
TTL Level |
11 |
USB_DM |
USB interface |
12 |
USB_DP |
|
13 |
GPIO 4 |
Universa IO interface |
14 |
EN |
High TTL Level enabled module |
15 |
GPIO 5 |
Universal IO interface |

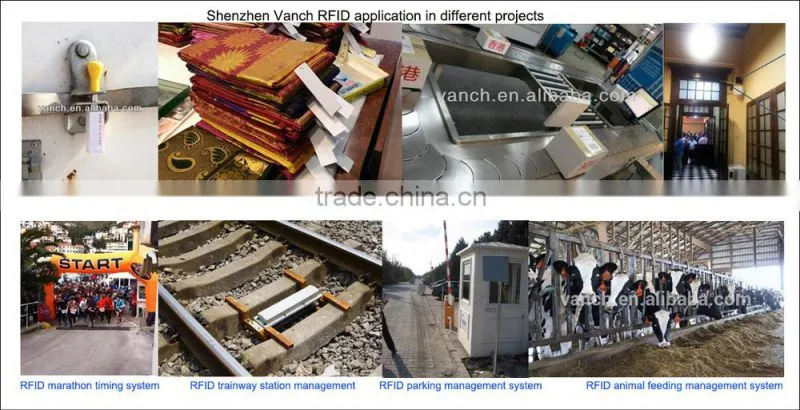

Not only for this, we did some other related projects as well, pls check the project pictures.
Welcome to contact me at mail beata at if you have any interest!
- We accept Paypal, T/T , Western Union as payment method.
- We will be happy to Combine shipping for more than 1 item ship to the same address
- Please make the payment in 3-5 days after you place the order to arrange the production.
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
If you want to know more details, please kindly contact me as the following:
