Fixed UHF RFID card reader 5m long range 8dbi Antenna for warehouse management system

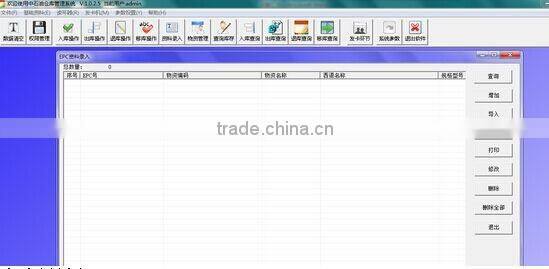

VANCH warehouse management system is used to track goods in/out from the warehouse, the stocks/inventory data could be update automatically by software. This system could be set up easily with our data collection system: uhf rfid fixed reader+antenna install at the door of warehouse, rfid tag with encoded unique ID. sticked on goods, also the handheld reader to check by walking.
Hardware configuration:

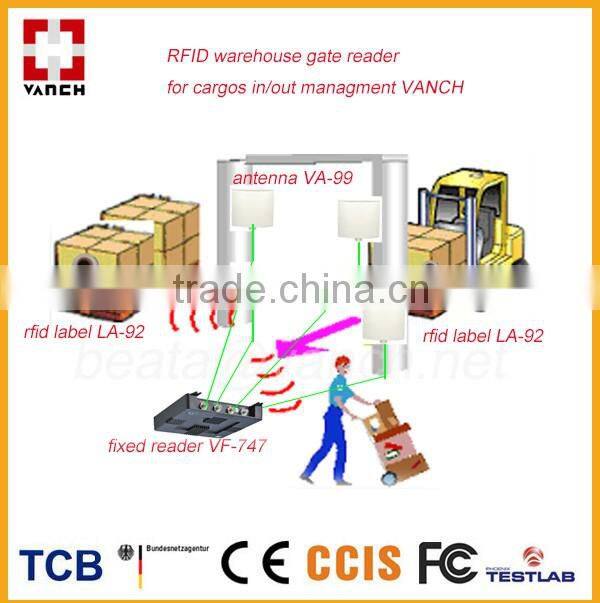

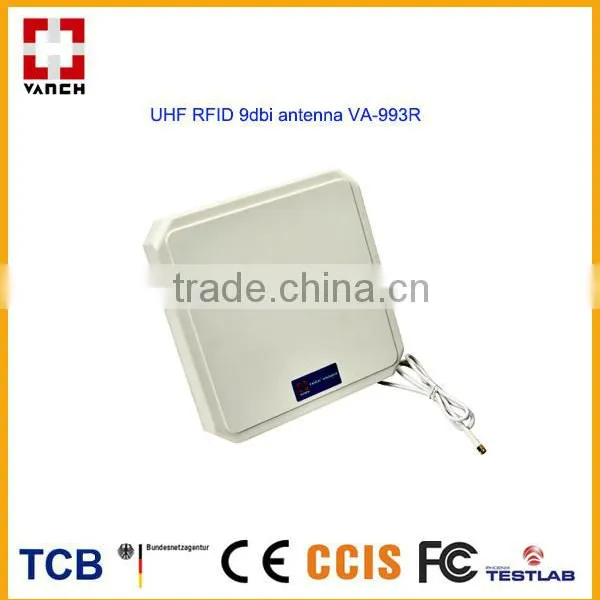

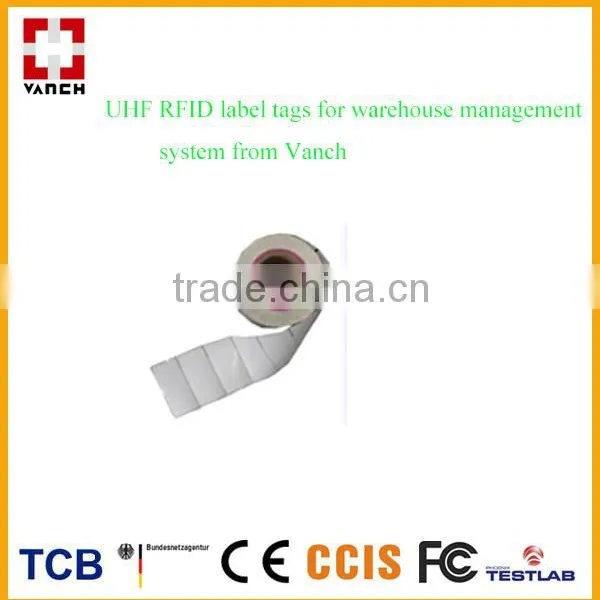

Fixed reader VF-747+ 9dbi antenna VA-99+ tags LA-92 for goods warehouse in/out tracking;

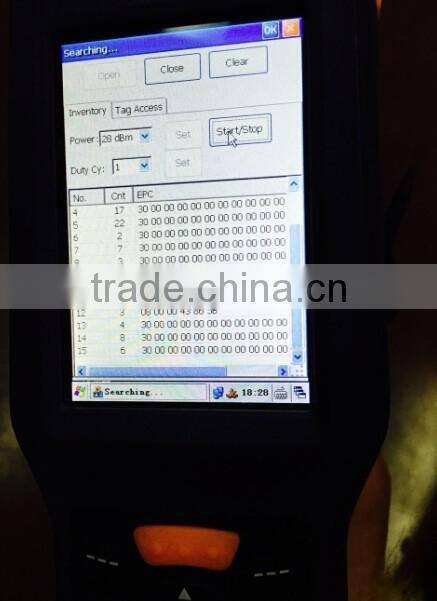

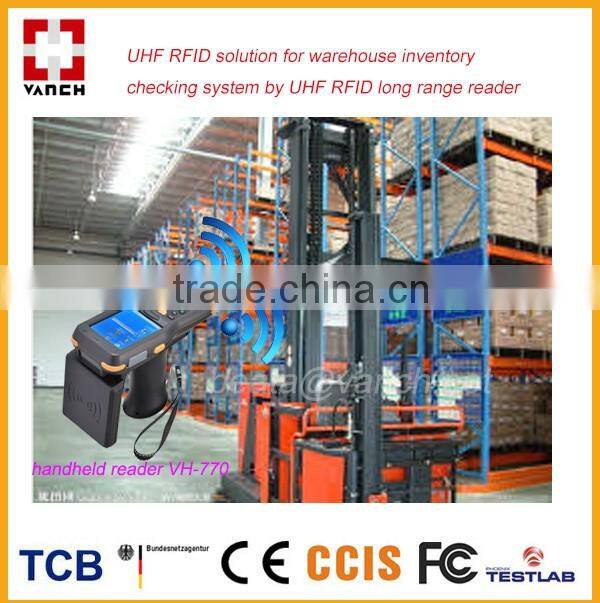

UHF RFID handheld reader VH-770+ tags LA-92 for goods inventory checking by walking;
Specification |
|
Model |
VF-747 |
| |
Performance Index | |
Frequency range |
860-868MHZ, 902-928MHZ(can be customized) |
Frequency modulation |
FHSS or fixed-frequency, can be set by software |
RF output |
+10.0 to +32.5 dBm; 50 ohm load. |
The number of antennas |
1 SMA antenna connector; 2 SMA antenna connector; 4 SMA antenna connectors for selections |
Communication interface |
10M/100MAdaptive Ethernet, RS232, RS485, Wiegand26/34 interface |
Communication rate |
Serial rate 9600~115200bps, RJ45 is 10Mbps |
Secure firmware upgrade |
The upgrade mechanism can be extended |
input / output (GPIO) |
2 inputs, 1 output |
Certifications |
CE/FCC |
Application software |
Supply API SDK and VC and VB, Delphi application routines |
Tag Operation Performance | |
Reading distance |
8dbiAntenna configuration, typical read range: 3 to 25 m (depends on tag) |
Protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
Maximum receiver sensitivity |
-82 dBm;Maximum return loss: 10 DBm |
Mechanical electrical performance | |
Dimension |
200 (L) * 200 (W) * 35 (H) mm |
Power |
With 220V AC input, the output of +12 V/3A DC power converter, and the power consumption is below 1W. |
Weight |
1.1KG |
Humidity |
5% to 95%, Non-condensing |
IP rating |
IEC IP51 |
Operating Temp. |
-20 ºC to +60 ºC |
Storage Temp. |
-40°C to 80°C |
The fixed reader could used for animal tracking, vehicle management system, sports timing system etc. multi-tags reading application as well. If you have related projects, welcome to contact me beata at for more details.
Not only for this, we did some other related projects as well, pls check the project pictures.
Welcome to contact me at mail beata at if you have any interest!
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
