UHF RFID Laundry Reader Hardware System for Rent Service Company

Name: UHF RFID Laundry Reader Hardware System for Rent Service Company
Brand: VANCH
SKU: 101693389
Availability: InStock

US$ 650 - 700 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VF-747

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VF-747

UHF RFID Laundry Reader Hardware System for rent service company

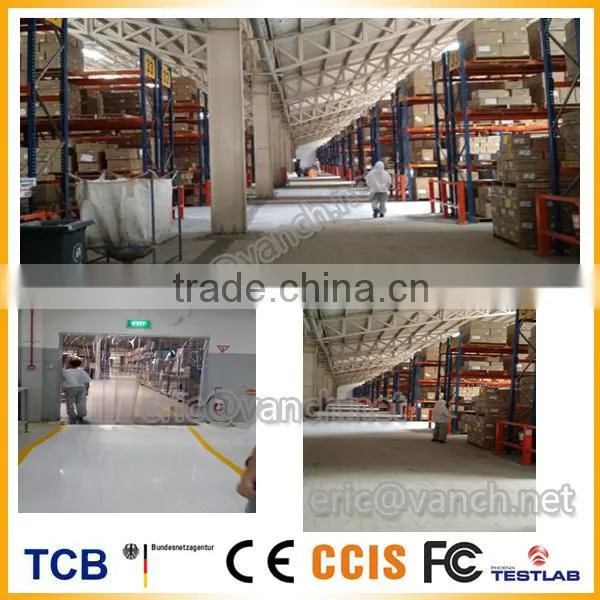

(It can be used in race timing, warehouse, ETC,retail and livestock....)

Product Description

Features:

1, Adopt Impinj UHF reader chip and TI ARM embedded processing chips to achieve high-speed reading and data fast operation

2, Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C / ISO18000-6B electronic tag standard

3, operating frequency is between 860-868MHZ / 902- 928MHZ (can be adjusted according to different countries or regions)

4, RS232, RS485 and TCP / IP network communication

5, Support 1, 2, 4 external SMA antenna connections

6, Output power reach 32dbm, it is adjustable. Support active mode, command mode and trigger mode.

7, Reading buzzer and LED status indication; support online upgrade for hardware by communication port.

8, Reader supply multi I/O input output connectors, convenient for device to integrate and application

9, highly reliable design for industrial structure to meet the demanding work environment

Parameter:

Performance Index
Frequency range	860-868mhz, 902-928mhz, can be customized )
Frequency modulation	FHSS or fixed-frequency, can be set by software
The number of antennas	1 TNC antenna connector; 2 TNC antenna connector; 4 TNC antenna connectors for selections
Communication interface	10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface
Communication rate	Serial rate 9600~115200bps, RJ45 is 10Mbps
Secure firmware upgrade	The upgrade mechanism can be extended
Input / output (GPIO)	2 inputs, 1 output
Certifications	CE/FCC
Application software	Supply API SDK and VC and VB, Delphi application routines
Tag Operation Performance
Reading distance	8dbiAntenna configuration, typical read range: 3 to 25 m (depends on tag)
Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B
Maximum receiver sensitivity	-82 dBm;Maximum return loss: 10 DBm
Mechanical electrical performance
Dimension	*200 (L) 200 (W) * 35 (H) mm**
Power	With 220V AC input, the output of +12 V/3A DC power converter
Weight	1.1KG
Humidity	5% to 95%, Non-condensing
IP rating	IEC IP51
Operating Temp.	-20 ºC to +60 ºC
Storage Temp.	-40°C to 80°C
