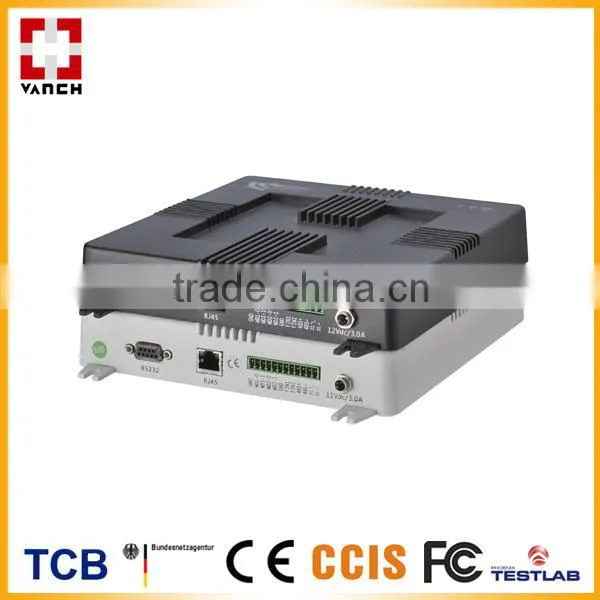

Long Range Uhf Fixed Rfid Reader With WIFI

Name: Long Range Uhf Fixed Rfid Reader With WIFI
Brand: VANCH rfid reader
SKU: 101693391
Availability: InStock

Long Range Uhf Fixed Rfid Reader With WIFI thumbnail-1

Long Range Uhf Fixed Rfid Reader With WIFI photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

VANCH rfid reader

Model Number:

rfid reader VF-747

Contact Supplier Request Quote Chat Now

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name VANCH rfid reader

Model Number rfid reader VF-747

Long range uhf fixed rfid reader with WIFI

FCC long distance UHF RFID fixed reader

Specification
Model	VF-747
Performance Index
Frequency range	860-868MHZ,902-928MHZ(can be customized)
Frequency modulation	FHSS or fixed-frequency, can be set by software
RF output	+10.0 to +32.5 dBm;50 ohm load.
The number of antennas	1 SMA antenna connector; 2 SMA antenna connector; 4 SMA antenna connectors for selections
Communication interface	10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface
Communication rate	Serial rate 9600~115200bps,RJ45 is 10Mbps
Secure firmware upgrade	The upgrade mechanism can be extended
input / output (GPIO)	2 inputs, 1 output
Application software	Supply API SDK and VC and VB, Java application routines
Tag Operation Performance
Reading distance	8dbi Antenna configuration, typical read range: 3 to 25 m (depends on tag)
Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B
Maximum receiver sensitivity	-82 dBm;Maximum return loss: 10 DBm
Mechanical electrical performance
Dimension	200 (L) * 200 (W) * 35 (H) mm
Power	With 220V AC input, the output of +12 V/3A DC power converter
Weight	<2KG
Humidity	5% to 95%, Non-condensing
IP rating	IEC IP51
Operating Temp.	-20 ºC to +60 ºC
Storage Temp.	-40°C to 80°C

Introduction:

l Shell adopt high strength die-casting aluminum, highlighting the product quality

l Adopt high-performance Impinj UHF reader chip IndyR2000,the best Intensive reader mode,the maximum read speed and optimum read ranges.

l Application: logistics supply chain,fixed asset management, sports timing system, library and archive management etc.

Features:

1, Adopt Impinj UHF reader chip and TI ARM embedded processing chips to achieve high-speed reading and data fast operation

2, Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C / ISO18000-6B electronic tag standard

3, operating frequency is between 860-868MHZ / 902- 928MHZ (can be adjusted according to different countries or regions)

4, RS232, RS485 and TCP / IP network communication

5, Support 1, 2, 4 external SMA antenna connections

6, Output power reach 32dbm, it is adjustable. Support active mode, command mode and trigger mode.

7, Reading buzzer and LED status indication; support online upgrade for hardware by communication port.

8, Reader supply multi I/O input output connectors, convenient for device to integrate and application

9, highly reliable design for industrial structure to meet the demanding work environment

Other products available: rfid reader, rfid tag, uhf rfid, rfid software, rfid module, hf rfid, rfid handheld reader, rfid system, rfid solution, rfid smart card, SDK, rfid mobile reader, 902-928MHz rfid reader, 865-868MHz rfid reader, rfid forklift reader, OEM rfid antenna, rfid transponder, rfid access control, rfid tracking, rfid laundry tag and so on.
