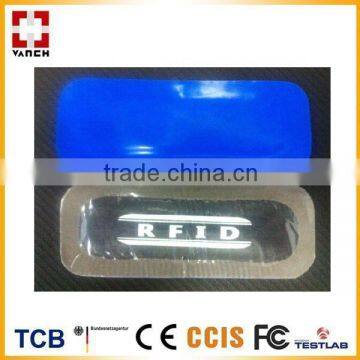

EPC class 1 UHF RFID tyre patch tag 865 to 925MHZ
Introduction
l 860-960 MHz frequency range for worldwide application.
l 0~2m read range when mounted on the tire .
l Flexible construction to withstand tire deformation in the total lifetime of the tire.
l Mounted on the inner side-wall of the tire.
l Tag protocol is EPC class 1 generation 2, with 96bits EPC and 512bits user memory.
l Can read and write data into tag’s user memory bank.
l The factory programmed tag identification number is unique to prevent cloning.
Features
- UHF RFID Tire tag,accord with EPC Class1 Gen2/ISO18000-6C
- The tag survives the high temperatures encountered in the tire retreading process and is sturdy enough to remain operational throughout the operating life of the tire.
- The tag has finished thousands of kilometers actual road test, did not lead to potential tire defects.
Specification
Specification |
|
Performance Index | |
Protocol |
EPC class 1 generation 2/ISO 18000-6C |
Frequency |
860—960MHZ |
Read distance |
0-2m |
Memory |
96bits EPC,512bits user memory |
Read/write |
Can read/write data into the tag |
Unique ID |
The factory programmed tag identification number is unique to prevent cloning. |
Installation |
mounted inner side of the tire |
Dimension |
110mm*55mm*3mm |
Weight |
8.5g |
Q: You are factory or trading company?
A: We are original equipment manufacturer in RFID UHF reader for over 10 years.
Q: How is your QC?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment term?
A: 100% payment should be paid before shipping.
Q: What is your payment way?
A: T/T, Western Union, MoneyGram
Q: What is your warranty?
A: within 1 year.
Q: Can I get technical support from you?
A: Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
