Vanch Rfid Reader for Underground Parking Lot System

Vanch Rfid Reader for Underground Parking Lot System thumbnail-1
Vanch Rfid Reader for Underground Parking Lot System photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Parking Lift
Height (mm):
306
Width (mm):
306
Contact Supplier Request Quote Chat Now
Shenzhen Vanch Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Parking Lift
Height (mm) 306
Width (mm) 306
Place of Origin Guangdong, China
Brand Name VANCH
Model Number VI-86F

vanch rfid reader for underground parking lot system



Application

logistics, access control, ETC, electronic security, manufacturing automation and etc.



Features

Reliable industry structure design, workable in varied severe environment.



Specification



Performance Index



Frequency range

902-928MHZ/865-868MHZ(or customized)



FM mode

FHSS or fixed frequency, set by the software



Reader chip

Impinj R2000 indy

RF output

30dBm adjustable



Communication interface

TCP/IP,RS232,RS485,Wiegand26/34



Communication rate

Serial port 9600~115200bps,RJ45 10Mbps



GP I/O interface

12 pin + 4 pin



Power dissipation

average<15W



Application software

Provide with API SDK and VC, VB, Java application routines



Tag Operation Performance



Reading distance

5-30m equipped with 12dbi antenna(tag dependent)



Air interface

EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B



Mechanical and Electrical Performance



Dimension

445(L)*445 (W)*70(H)mm



Power supply

Equipped with power convertor 220V AC input, +9V/3A DC output



Weight

2KG



Humidity

5% to 95%, non-condensing



Protection grade

IEC IP65



Operation temperature

-20 ºC to +60  ºC



Storage temperature

-40°C to 80°C

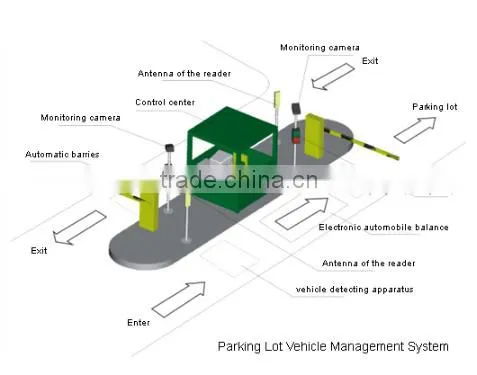

Project case



Underground Parking lot System



vanch rfid reader for underground parking lot system







Company Information



Shenzhen VANCH Intelligent Technology Co., Ltd. is the leading UHF RFID product manufacturer and application solution supplier in China.





FAQ



1. You are manufacturer or trading company?

    We are original equipment manufacturer in RFID UHF reader for over 10 years.

2. How is your QC?

    We have strict QC process and all the products will be 100% testing before shipping.

3. What is your payment term?

    100% payment should be paid before shipping.

4. What is your payment way?

    T/T, Western Union, MoneyGram

5. What is your warranty?

    Wthin 1 year.

6. Can I get technical support from you?

    Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
