Product Details
| Place of Origin: | Guangdong, China | Brand Name: | VANCH | Model Number: | VI-85E |
Product Description

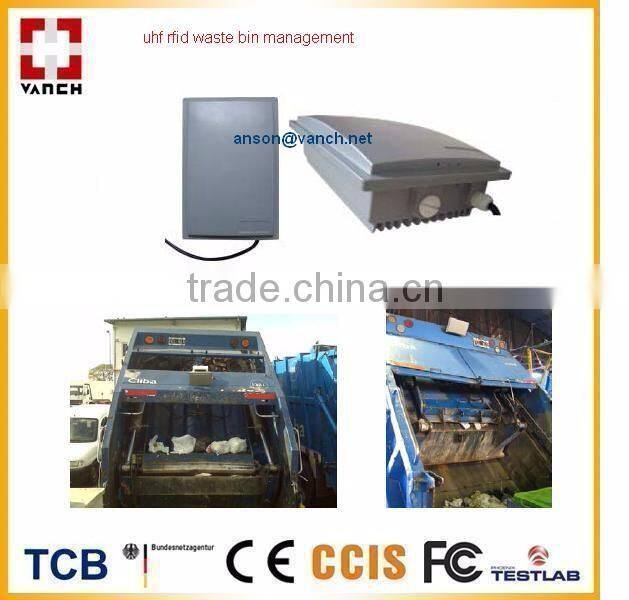

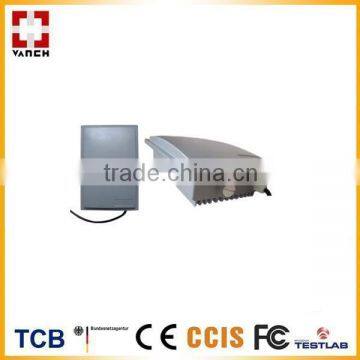

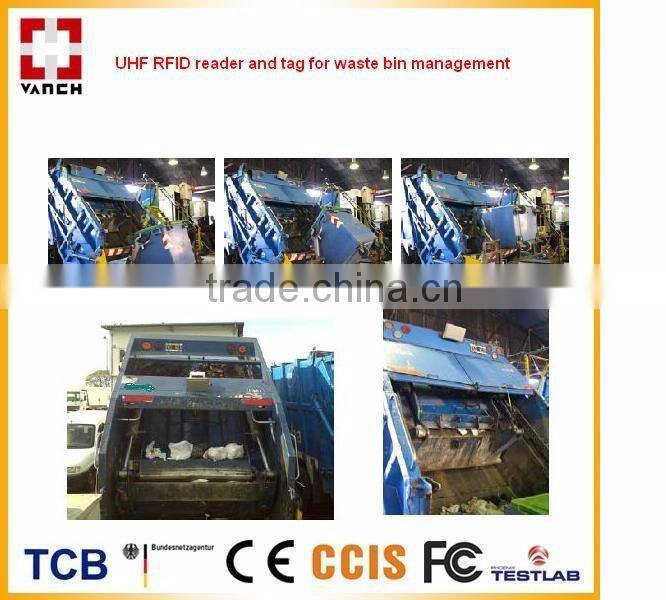

RS2323 RFID UHF INTEGRATED READER for waste bin management system
Description:
This is a popular integrated reader, Compatible with ISO18000-6C (EPC C1GEN2) and ISO18000-6B.
It is an industry grade product for harsh environment, IP-65 protection case for water-proof, easy to install
Mainly application as follows:
1. Parking management: Long range intelligent parking management and automatic charge without stop the car
2. Production line management: Goods identification for production flow
3. Auto Access control: Long range access control management for custom, sea port
4. Logistics and warehouse management
5. People auto registry for important meeting or exhibition
6. Automatic weighing and data capture.
Data sheet of parameters
Model | VI-85F |
Dimension | 285(L)*205(W)*77(H)mm |
Weight | 2KG |
Operating Temp | -20°C to 60°C |
Storage Temp | -30°C to 80°C |
Humidity | 10% to 95% |
Non-condensing Enclosure | IP-65 |
Frequency Range | 902-928MHz,865-868MHz or Customized |
Operation Mode | FHSS or fixed frequency (set by software) |
Reading Mode | Command, Trigger, Continuing |
Read speed | 32bits/6ms |
Write speed | 32bits/50ms |
RF power control | 20-30dBm |
Protocol | EPC Class 1 Gen 2,ISO 18000-6B |
Communication Interface | RS232/RS485/Wiegand26/34(Option:RJ45) |
Power supply | External 110-220V AC,DC +9V 3A Power adapter |
Antenna | Built-in 8dBi Circular Antenna |
Reading Clue | Buzzer |
Reade Range | >6m |
Q: You are factory or trading company?
A: We are original equipment manufacturer in RFID UHF reader for over 10 years.
Q: How is your QC?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment term?
A: 100% payment should be paid before shipping.
Q: What is your payment way?
A: T/T, Western Union, MoneyGram
Q: What is your warranty?
A: within 1 year.
Q: Can I get technical support from you?
A: Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
