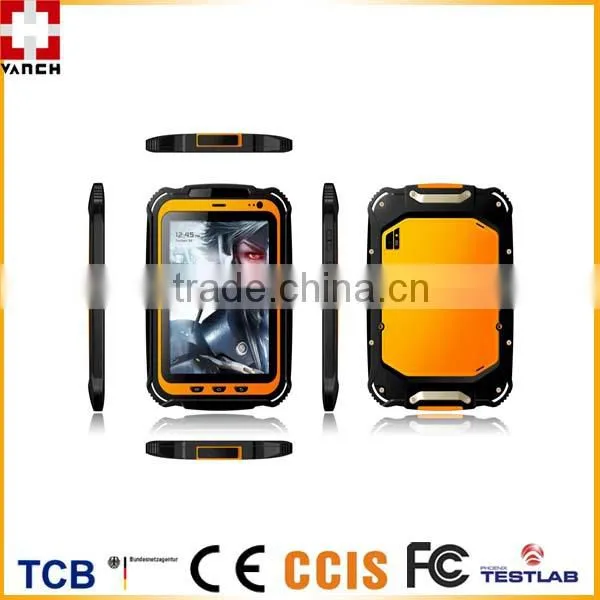

VANCH Rugged WIFI/GPRS/NFC/Bluetooth/RFID Tablet Reader for Access Control
Feature
The tough tablet PC terminal VS-1007B can be used in many special works such as geography, logistic, forestry, public transportation, construction, maintenance, mining, military security and outdoor work. Product size is 240.2x178.8x20(mm). The protection level is IP67 (waterproof, shockproof and dustproof,drop proof). It conform to fall protection of MIL-STD-810G/Method516.6/Procedure IV military protection level, and can bear drop shock from highest 1.8 meters by any angle, static state testing by more than 2 tons of pressure. It is equipped with 7500 mAh Li-Poly battery (15000mAh battery optional). It also has feature such as readable under sunlight, workable on condition of deep low temperature and more.
CPU: MTK8382,Quad Core 1.5GHZ
ROM/RAM:1G+16G low power consumption EMCP integrative storage
Display Screen: 7.85 IPS touchscreen full angle 1024*768 resolution, brightness of 400CD/M2, sunlight readable
Touch screen: full toughened high strength capacitive touch screen, surface hardness is more than 8H
Basic function:2G/3G/Bluetooth/GPS/WIFI/FM/Compass/gyroscope/Gravity Sensor/Accelerometer
Extended function: RFID/NFC/Zigbee /1D barcode scan/CPS/Beidou navigation/Glonass navigation
Water proof, dust proof, drop proof, full function, high reliability, low power consumption, expandable.
Specification
Specification |
|
|
Model No. |
VS-1007B |
|
Dimension | ||
Size(mm) |
240.2x178.8x20(mm)(L×W×H) |
|
Weight (g) |
650g |
|
Hardware Specification | ||
CPU |
MTK8382,Quad Core 1.5GHZ, processor: Mediatek |
|
Telephone and 3G frequency |
WCDMA 850/2100 (optional 850/1900) & GSM850/900/1800/1900 |
|
Telephone SIM card interface |
Support,normal 1.8/3.3V SIM card |
|
O/S |
Android 4.2 |
|
Navigation |
Built-in GPS navigation chip, support A-GPS,EPO |
|
OTG |
Support |
|
FM Radio |
Support |
|
Bluetooth |
BT2.1+EDR,3.0+HS |
|
Gravity Sensor |
Support |
|
Accekerometer sensor |
Support |
|
Light senor |
Support |
|
proximity senor |
Support |
|
Geomagnetic sensor |
Support |
|
Gyro Sensor |
Support |
|
Speaker |
20x30 vibration speaker unit |
|
Network Connection | ||
3G Telecommunication |
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), Support shared WIFI router |
|
EDGE |
Support |
|
GPRS |
Support |
|
WAP |
Support |
|
WI-FI |
Support 802.11 B/G/N |
|
RFID & NFC |
|
|
Frequency Range |
865-868MHZ,902-928MHZ(can be adjusted by different countries and location) |
|
Air Interface Protocol |
ISO-18000-6B,ISO-18000-6C(EPC G2) |
|
Reading Distance |
Type:NRF24LE1E, Frequency:2.4GHZ, Receiving distance:more than 30m |
|
NFC |
Type:PN547N2, Frequency:13.56MHZ, Reading distance:more than 2cm |
|
Display Screen | ||
Main Display Screen |
7.85‘' HD IPS/AFFS display screen 1024*768 400 cd/m2 highlight , Sunlight readable |
|
Touch Screen |
G+G 5 points full toughened high strength capacitive touch screen |
|
Camera | ||
Main Camera |
13M pixels camera with Autofocus and electronic flash light |
|
VGA Camera |
2M pixels camera |
|
Storage | ||
Built-in Memory |
1GB RAM+16GB ROM 2-in-1 low power consumption storage |
|
External memory expansion |
Micro SD card ( T-FLASH card)card reader, support max.32GB expansion |
|
Battery & Interface | ||
Battery |
7500mAh/15000mAh |
|
Charge Interface |
USB Micro 5Pin |
|
Date Interface |
USB Micro 5Pin |
|
Earphone Interface |
3.5mm |
|
Others | ||
Color |
orange |
|
Language |
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified Chinese, Traditional Chinese and more. |
|
Other special industrial design | ||
Industry Interface Reservation |
COM:RS232/TTL number 3;GPIO 3.3V number 3; controllable power source 200mAh number 1;power source of battery: 200mAh number 2 |
|
Interior Structure Reservation |
Interior Structure Reservation location 32mmx32mmx5 number 2 |
|
Environmental Testing |
Anti-vibration |
1-19Hz/1.0mm Amplitude 19-200Hz/1.0g accelerated speed |
Anti-shock |
Conform to MIL-STD-810G/Method516.6/Procedure IV military protection level |
|
Waterproof level |
6 degree waterproof |
|
Dustproof level |
6 degree dustproof |
|
Reliability |
MTBF>50000h;MTTR<0.5h |
|
Working Temp. |
-20°C to 65°C |
|
Storage Temp. |
-40°C to 80°C |
|
Relative Humidity |
5% to 95% under non-condensable status |
|
|
Working Height |
Max. Working Height:4,500 meters(15,000 feet) |
1, Supply different kinds of UHF RFID reades,antennas, tags(protocol of EPC C1G2 and ISO-18000/6C 902-928MHZ 865-868MHZ and 2.45GHZ active RFID Products
2, Have our own R&D Department to customize RFID Products for you.
3.Assist you to design different kinds of industry RFID solution
4.Products are CE and FCC certified
Shenzhen Vanch Intelligent was established in2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.VANCH products were widely used in City Smart transportation, Electric power system, asset and logistics management, the world's top 500 enterprises, government and military and other fields
