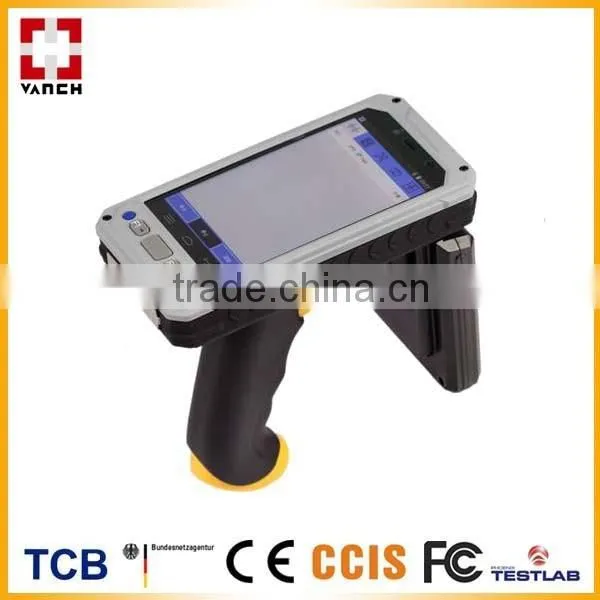

7m long range android mobile phone RFID reader for assets tracking
Features
1. Support bluetooth, WIFI GPRS/GSM/WCDMA/TD-SCDMA/TD-LTE/FD-LTE
2.Support 1d barcode /2D scanner optional
3. Reading distance to EPC C1 GEN2/IS018000—6C Tag can reach up to 7 meters
4. Support 8 million pixel camera
5.Support infrared communication module
6: Android 4.4 O/S
Features | ||
The processor |
MSM8926 1.2GHZ quad-core; |
|
Memory capacity |
ROM:1Gb RAM:4Gb (support max.32GB expansion) |
|
The operating system |
Android 4.4 |
|
Wireless communications |
GPRS(option) |
GPRS, EDGE , 4-band 900/1800,850/1900 |
GSM/WCDMA/TD-LTE(2G/3G/4G option) |
band 850/2100,Cat.8 HSDPA Cat.6 HSUPA |
|
WIFI(shandard) |
Conform to the IEEE 802.11b/g |
|
Bluetooth |
Conform to the Bluetooth 4.0 |
|
Telephone SIM card interface |
supoort |
|
Display |
5”IPS display, The resolution of the 1280*720(DPI294), Gabo Lingual perspective, the sun is visible |
|
Touch screen |
Support more capacitive touch; |
|
Indicator light |
Network indicator light, charge indicator; |
|
audio |
Support the speech; |
|
Micro SD card( Micro SD card) |
Support 32 gb MICRO SD card; |
|
Data security |
Product is the data security protection, in a completely off electricity (remove the battery and the power converter), data is not lost |
|
GPS indicators |
Support A-GPS |
|
Navigation map |
Support navione, baidu, Google, gold,Beidou navigation and other navigation map; |
|
The input method |
Full-screen handwriting, half screen handwriting, strokes and pinyin, Numbers, letters, symbols |
|
Physical interface |
High-speed USB2.0 interface equipment end, 3.5 stick related plug-in interface |
|
camera(option) |
The rear 8 million pixel camera with flash; |
|
1D barcode(SE4500/N431X) |
|
|
Read code system |
Can read all kinds of main one-dimensional bar code: Code 39,Code 93,Code 128,Codebar,EAN-13,EAN-8,UPC-A,UPC-E,ITF 14,UCC/EAN-128,ITF 25,Matrix 25,EAN-128,ISBN |
|
Read distance |
0~7m |
|
2D barcode |
|
|
Moto-SE4500 |
Hardware decoding, the decoding speed and error rate of 0.01% or less; |
|
Honeywell-5180 |
Hardware decoding, the decoding speed and error rate of 0.01% or less; |
|
RFID |
|
|
UHF(902~928MHz) |
Up to 7m distance for EPC C1 GEN2 / ISO18000-6 - c protocol (depend on tags ) |
|
Battery performance |
|
|
The battery |
2350 mah lithium polymer battery, standby time: more than 20 days, working time: more than 3 hours |
|
Appearance design |
Ergonomic design handle, easily to operate,can reduce user’s fatigue |
|
The work environment |
|
|
Operating temperature |
-20℃ ~50℃ |
|
Storage temperature |
-20℃ ~70℃ |
|
Relative humidity |
10%~90%RH,non indensity |
|
Protection grade |
IP65 |
|
Physical parameters |
|
|
The total weight |
720g (including battery, charger are not included); |
|
The fuselage size |
158(L) x81 (W) x 155 (T) ± 2 mm |
|
The attachment |
|
|
Standard |
5V/2A charger, Micro USB data line |
|
