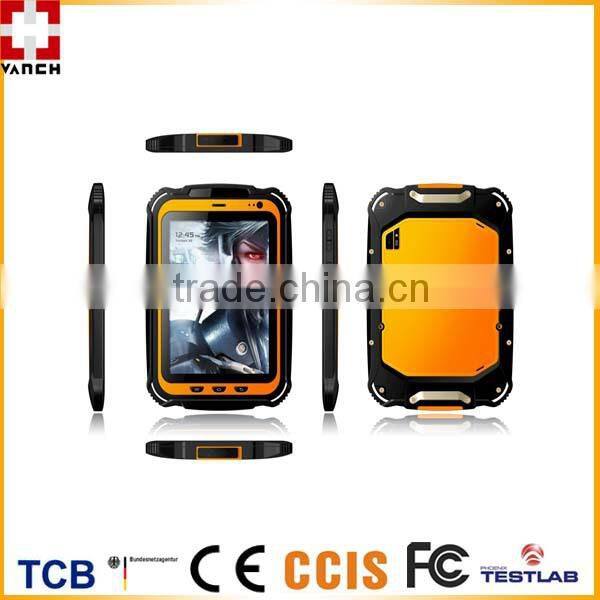

Rugged NFC/RFID Tablet for People Identity Checking

Specification

Model No.

VS-1007B

Dimension

Size(mm)

240.2x178.8x20(mm)(L×W×H)

Weight (g)

650g

Hardware Specification

CPU

MTK8382,Quad Core 1.5GHZ, processor: Mediatek

Telephone and 3G frequency

WCDMA 850/2100  (optional 850/1900) & GSM850/900/1800/1900

Telephone SIM card interface

Support,normal 1.8/3.3V SIM card

O/S

Android 4.2

Navigation

Built-in GPS navigation chip, support A-GPS,EPO

OTG

Support

FM Radio

Support

Bluetooth

BT2.1+EDR,3.0+HS

Gravity Sensor

Support

Accekerometer sensor

Support

Light senor

Support

proximity senor

Support

Geomagnetic sensor

Support

Gyro Sensor

Support

Speaker

20x30 vibration speaker unit

Network Connection

3G Telecommunication

WCDMA 3.75G (HSDPA+ 42.2Mbps,  HSUPA+ 11.5Mbps), Support shared WIFI router

EDGE

Support

GPRS

Support

WAP

Support

WI-FI

Support 802.11 B/G/N

RFID & NFC

Frequency Range

865-868MHZ,902-928MHZ(can be adjusted by different countries and location)

Air Interface Protocol

ISO-18000-6B,ISO-18000-6C(EPC G2)

Reading Distance

Type:NRF24LE1E,     Frequency:2.4GHZ,

Receiving distance:more than 30m

NFC

Type:PN547N2,   Frequency:13.56MHZ,

Reading distance:more than 2cm

Display Screen

Main Display Screen

7.85‘' HD IPS/AFFS display screen 1024*768 400 cd/m2 highlight , Sunlight readable

Touch Screen

G+G 5 points full toughened high strength capacitive touch screen

Camera

Main Camera

13M pixels camera with Autofocus and electronic flash light

VGA Camera

2M pixels camera

Storage

Built-in Memory

 1GB RAM+16GB ROM 2-in-1 low power consumption storage

External memory expansion

Micro SD card ( T-FLASH card)card reader, support max.32GB expansion

Battery & Interface

Battery

7500mAh/15000mAh

Charge Interface

USB Micro  5Pin

Date Interface

USB Micro  5Pin

Earphone Interface

3.5mm

Others

Color

orange

Language

English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified Chinese, Traditional Chinese and more.

Other special industrial design

Industry Interface Reservation

COM:RS232/TTL  number 3;GPIO 3.3V number 3;

controllable power source 200mAh number 1;power source of battery: 200mAh number 2

Interior Structure Reservation

Interior Structure Reservation location 32mmx32mmx5 number 2

Environmental Testing

Anti-vibration

1-19Hz/1.0mm Amplitude 19-200Hz/1.0g accelerated speed

Anti-shock

Conform to MIL-STD-810G/Method516.6/Procedure IV military protection level

Waterproof level

6 degree waterproof

Dustproof level

6 degree dustproof

Reliability

MTBF>50000h;MTTR<0.5h

Working Temp.

-20°C to 65°C

Storage Temp.

-40°C to 80°C

Relative Humidity

5% to 95% under non-condensable status

Working Height

Max. Working Height:4,500 meters(15,000 feet)
