tablet handheld uhf rfid reader for clothes inventory
Attention: we only sell tablet reader with UHF RFID. If you just find consumer electronic products, please don't inquiry us as that is not our advantage. Our advantage is UHF RFID. Thank you for your cooperation.

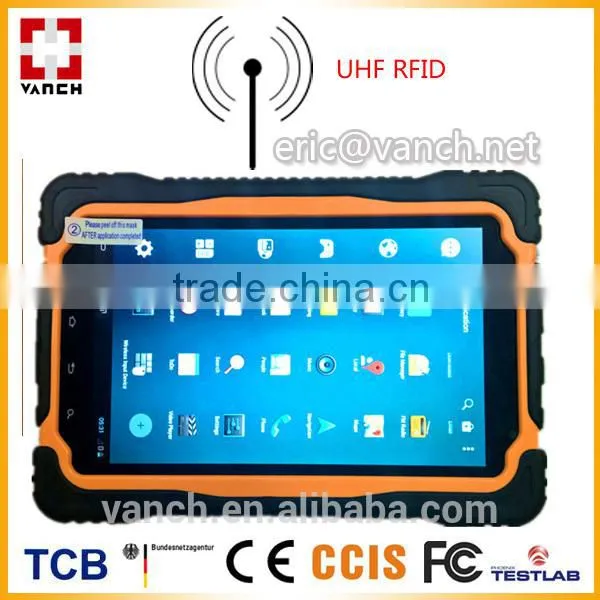

1, The tough tablet PC terminal VS-1007A can be used in many special works such as geography, logistic, forestry, public transportation, construction, maintenance, mining, military security and outdoor work. Product size is 200x132x21(mm), weight of 650g. The protection level is IP67 (guaranteed level IP66). It conform to fall protection of MIL-STD-810G/Method516.6/Procedure IV military protection level, and can bear drop shock from highest 1.8 meters by any angle, static state testing by more than 2 tons of pressure. It is equipped with 10000 mAh mega battery. It also has feature such as readable under sunlight, workable on condition of deep low temperature and more.
2, CPU: 1.2G Hz x4 Cortex A7 Quad Core
3, ROM/RAM:1G+16G low power consumption EMCP integrative storage
4, Display Screen: 7’’ AFFS/IPS full angle 1024x600 resolution, brightness of 400CD/M2, sunlight readable
5, Touch screen: full toughened high strength capacitive touch screen, surface hardness is more than 8H
6, Basic function:2G/3G/Bluetooth/GPS/WIFI/FM/Compass/gyroscope/Gravity Sensor/Accelerometer
7, Extended function: RFID/NFC/Zigbee/finger print scan/1D barcode scan/CPS/Beidou navigation/Glonass navigation
8, Water proof, dust proof, drop proof, full function, high reliability, low power consumption, expandable.
Model No. |
VS-1007A |
|
Dimension | ||
Size(mm) |
200*136*21mm(L×W×H) |
|
Weight (g) |
650g |
|
Hardware Specification | ||
CPU |
MT6589 ( Quad core 1.2Ghz Processor) Cortex A7 |
|
Telephone and 3G frequency |
WCDMA 850/2100 (optional 850/1900) & GSM850/900/1800/1900 |
|
Telephone SIM card interface |
Support,normal 1.8/3.3V SIM card |
|
O/S |
Android 4.2.1 |
|
Navigation |
Built-in GPS navigation chip, support A-GPS,EPO |
|
OTG |
Support |
|
FM Radio |
Support |
|
Bluetooth |
BT4.0 (A2DP+EDR) |
|
Motion Sensor |
Support |
|
Gravity Sensor |
Support |
|
Geomagnetic sensor |
Support |
|
Gyro Sensor |
Support |
|
Speaker |
20x30 vibration speaker unit |
|
Network Connection | ||
3G Telecommunication |
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), Support shared WIFI router |
|
EDGE |
Support |
|
GPRS |
Support |
|
WAP |
Support |
|
WI-FI |
Support 802.11 B/G/N |
|
RFID Reading and Writing |
|
|
Frequency Range |
865-868MHZ,902-928MHZ(can be adjusted by different countries and location) |
|
Air Interface Protocol |
ISO-18000-6B,ISO-18000-6C(EPC G2) |
|
Reading Distance |
Reading Distance >150cm,Writing Distance>15cm |
|
Display Screen | ||
Main Display Screen |
7.0‘' HD IPS/AFFS display screen 1024*600 400 cd/m2 highlight , Sunlight readable |
|
Touch Screen |
G+G 5 points full toughened high strength capacitive touch screen |
|
Camera | ||
Main Camera |
800M pixels camera with Autofocus and electronic flash light |
|
VGA Camera |
200M pixels camera |
|
Storage | ||
Built-in Memory |
1GB RAM+8GB ROM 2-in-1 low power consumption storage |
|
External memory expansion |
Micro SD card ( T-FLASH card)card reader, support max.32GB expansion |
|
Battery & Interface | ||
Battery |
9650mAh |
|
Charge Interface |
USB Micro 5Pin |
|
Date Interface |
USB Micro 5Pin |
|
Earphone Interface |
3.5mm |
|
Others | ||
Color |
Yellow, Green, grey |
|
Language |
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified Chinese, Traditional Chinese and more. |
|
Mass production Date |
August, 2013 |
|
Other special industrial design | ||
Industry Interface Reservation |
COM:RS232/TTL number 3;GPIO 3.3V number 3; controllable power source 200mAh number 1;power source of battery: 200mAh number 2 |
|
Interior Structure Reservation |
Interior Structure Reservation location 32mmx32mmx5 number 2 |
|
Environmental Testing |
Anti-vibration |
1-19Hz/1.0mm Amplitude 19-200Hz/1.0g accelerated speed |
Anti-shock |
Conform to MIL-STD-810G/Method516.6/Procedure IV military protection level |
|
Waterproof level |
6 degree waterproof |
|
Dustproof level |
6 degree dustproof |
|
Reliability |
MTBF>50000h;MTTR<0.5h |
|
Working Temp. |
-20°C to 65°C |
|
Storage Temp. |
-40°C to 80°C |
|
Relative Humidity |
5% to 95% under non-condensable status |
|
|
Working Height |
Max. Working Height:4,500 meters(15,000 feet) |
