3.5 Inch Screen Uhf Rfid Handheld Reader With Writer,wifi 3G Gps Barcode Scanner

3.5 Inch Screen Uhf Rfid Handheld Reader With Writer,wifi 3G Gps Barcode Scanner photo-1

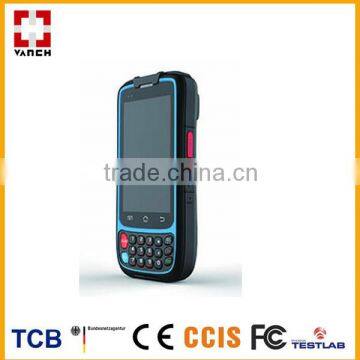

3.5 Inch Screen Uhf Rfid Handheld Reader With Writer,wifi 3G Gps Barcode Scanner photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VANCH
Model Number:
VH-72A
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name VANCH
Model Number VH-72A

3.5 inch screen uhf rfid handheld reader with writer,wifi 3G gps barcode scanner



Product Description

1.  Support Bluetooth, Wi-Fi, GPRS/WCDMA etc. communication method;

2.  Support 1D bar code laser or imager scanner;

3.  Reading distance up to 2m, tags confirm to EPC C1 GEN2/ISO18000-6C, 900MHz;

4.  Support 5 MPx camera with auto focus;

5.  With low-power led flashlight for emergency use;

6.  Confirm to IP65 industrial sealing standard, have better water-proof, crash-proof and dust-proof function;

Using keyboard and handwriting touch screen to input data, fully use the function of applications, fashion design to satisfy customer’s favor, easy to grip, most reduce the tired feeling during using



3.5 inch screen uhf rfid handheld reader with writer,wifi 3G gps barcode scanner

Specification



Item Number

VH-72A

Smartphone Spec. Parameter:

Processor

Cortex A9 Dual Core 1.2GHZ

Operation System

Android 4.4.2

Memory Capacity

ROM:EMMC 4GB  RAM: LPDDR2 1Gb

Screen

4.0’’ IPS Screen, Resolution 480*800, HD, Visible in Sunshine

Wi-Fi (Standard)

Confirm to IEEE 802.11b/g

GPRS (Optional)

GPRS, EDGE , 4-band 900/1800,850/1900

Bluetooth (Optional)

Bluetooth 4.0

WCDMA (3G, Optional)

band 850/2100,Cat.8 HSDPA Cat.6 HSUPA

GPS Navigation

Support Careland, Baidu, Google, A map etc. Navigation Map

Camera (Optional)

Rear 5 MPx Camera, with flashlight

RFID Module Spec. Parameter

Data Transport

High Speed USB2.0 Device End Interface, 3.5 Stick Plug Charging Interface

RFID Module

HF (Optional), UHF (Optional), 2.4G Module (Optional)

Bar Code Module

1D (Optional), 2D (Optional)

Battery

5000mAh Li-Polymer Battery, Standby Time more than 200 Hours, Working Time more than 12 hours, AC charging adaptor (1A), able to working after 360 hours when the wireless communication is closed after full charged, charging time less than 4.5 hours

Accessory

Lithium Battery * 1, Charger * 1, USB Data Cable * 1, DC charging cable * 1

RFID Parameter

HF Module

Working Frequency: 13.56MHz

Protocol

ISO14443A,ISO15693

Reading Distance

0~7cm (According to RFID tag)

UHF Module

Working Frequency: 860MHz~960MHz

Protocol

EPC C1 G2(ISO18000-6C)

Reading Distance

> 3m (According to RFID tag)

2.4G Module

Working Frequency: 2.4GHz~2.5GHz

Reading Distance

More than 200m, reading distance is adjustable

Physical Parameter

Weight (g)

< 300

Size (mm)

158 × 75 × 28

Environmental Parameter

Working Temperature

-20℃~50

Storage Temperature

-20℃~70

Storage Humidity

10%~90%RH, non-condensing



Application

Animal tracking, asset tracking, inventory checking,container management system etc.



Payment

-  We accept Paypal, T/T , Western Union as payment method.
-  We will be happy to Combine shipping for more than 1 item ship to the same address
-  Please make the payment in 3-5 days after you place the order to arrange the production.



Return&Warranty

-  We make sure all of items are 100% in good status before shipment

-  The product have one year warranty from the buying date. It's ok to send back the product for repairing during the warranty.
