Product Details
Place of Origin: | Guangdong, China | Brand Name: | Vanch | Model Number: | VF-747 |
Product Description

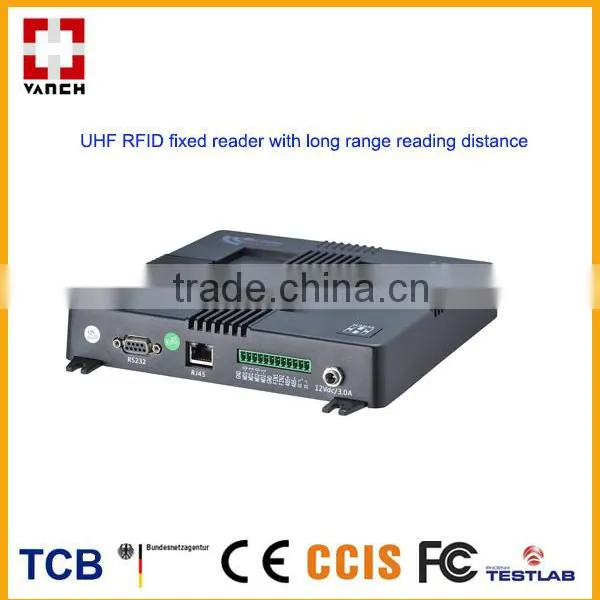

rfid fixed epc gen2 reader with multiple tag 840-960mhz TCP/IP RJ45/Ethernet rs232
1. customized frequency available 2. With CE/FCC certificates 3. good design antenna UHF RFID reader
Specification | |
Model | VF-747 |
Performance Index | |
Frequency range | 860-868MHZ,902-928MHZ(can be customized) |
Frequency modulation | FHSS or fixed-frequency, can be set by software |
RF output | +10.0 to +32.5 dBm;50 ohm load. |
The number of antennas | 1 SMA antenna connector; 2 SMA antenna connector; 4 SMA antenna connectors for selections |
Communication interface | 10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface |
Communication rate | Serial rate 9600~115200bps,RJ45 is 10Mbps |
Secure firmware upgrade | The upgrade mechanism can be extended |
input / output (GPIO) | 2 inputs, 1 output |
Certifications | CE/FCC |
Application software | Supply API SDK and VC and VB, Delphi application routines |
Tag Operation Performance | |
Reading distance | 8dbiAntenna configuration, typical read range: 3 to 25 m (depends on tag) |
Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
Maximum receiver sensitivity | -82 dBm;Maximum return loss: 10 DBm |
Mechanical electrical performance | |
Dimension | 200 (L) * 200 (W) * 35 (H) mm |
Power | With 220V AC input, the output of +12 V/3A DC power converter |
Weight | 1.1KG |
Humidity | 5% to 95%, Non-condensing |
IP rating | IEC IP51 |
Operating Temp. | -20 ºC to +60 ºC |
Storage Temp. | -40°C to 80°C |

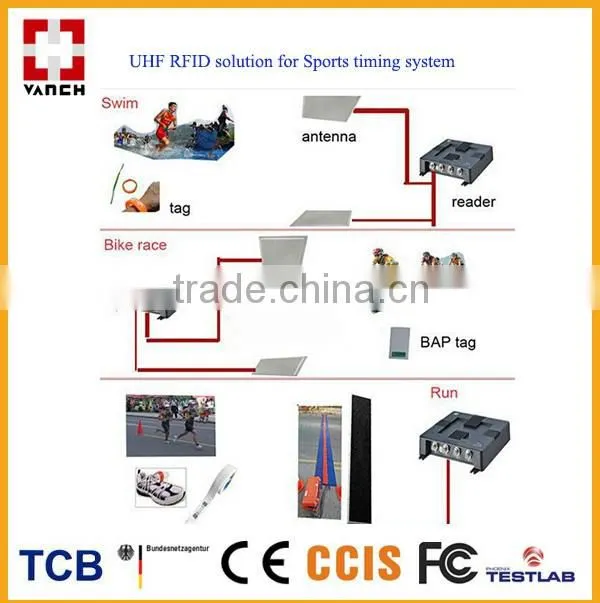

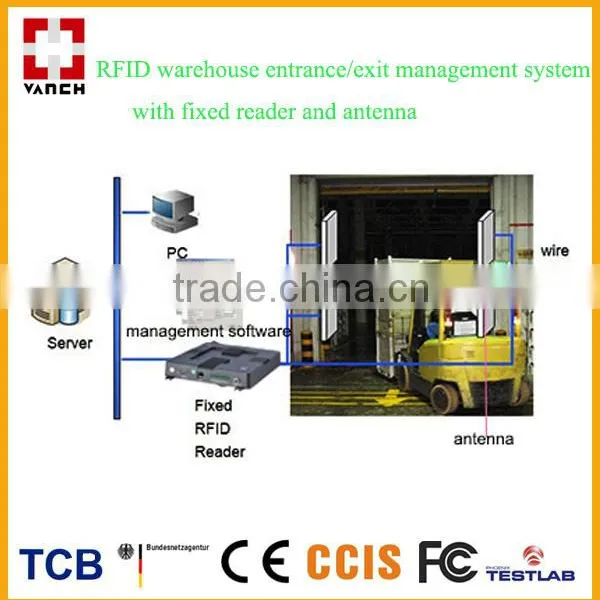

Animal tracking, asset tracking, inventory checking,container management system etc.
