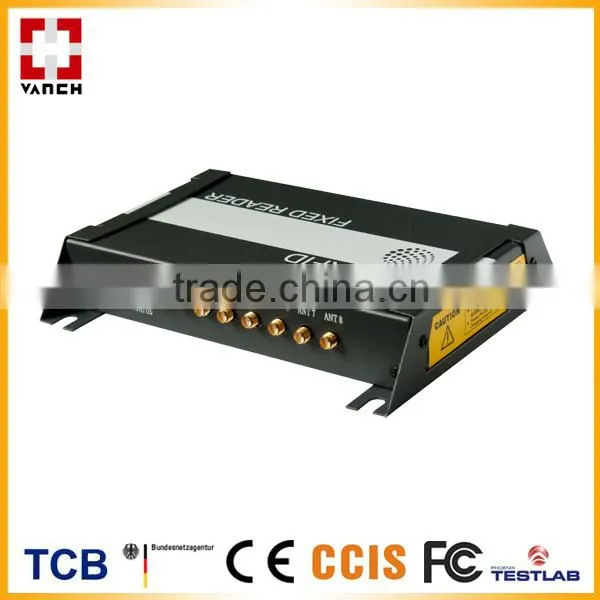

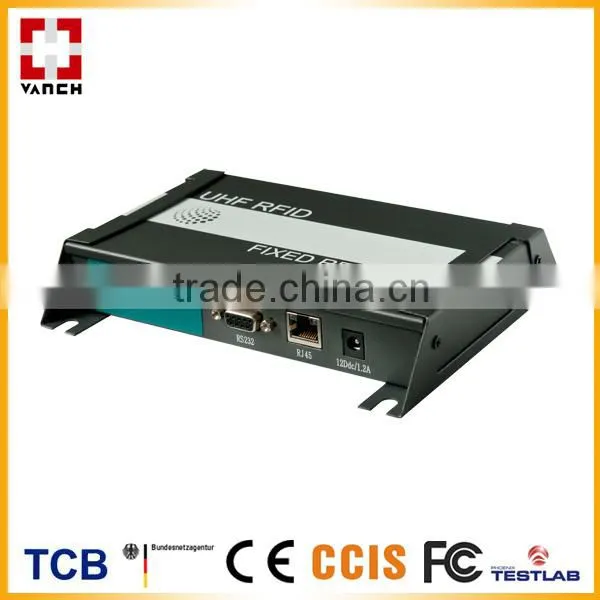

8 Ports UHF RFID Reader for Asset Management

Name: 8 Ports UHF RFID Reader for Asset Management
Brand: VANCH
SKU: 101689227

US$ 790 - 830 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VF-682

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shezhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VF-682

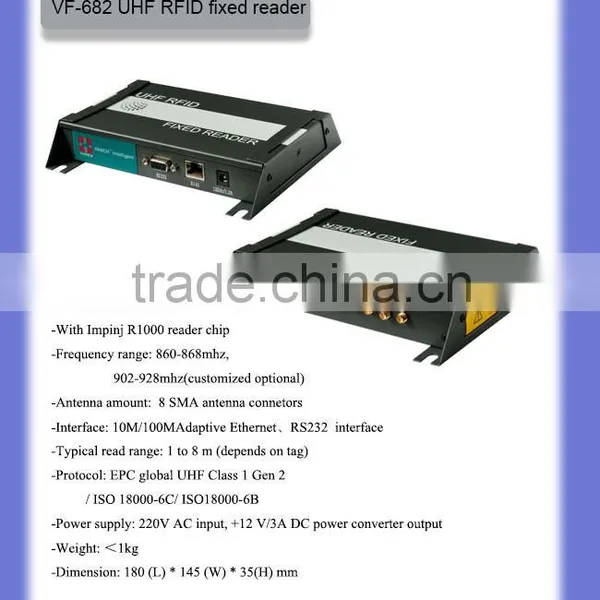

8 ports UHF RFID Reader for asset management

introduction

l Adopt high-performance Impinj UHF reader chip IndyR2000

l The best Intensive reader mode,the maximum read speed and optimum read ranges.

l Application: logistics supply chain,fixed asset management and library and archive management etc.

Features

1. Impinj UHF Reader Chip IndyR1000 and 32 bits ARM processor design frame.

2. Full support tags which meet the standard of EPC global UHF Class 1 Gen 2 / ISO 18000-6C.

3. Frequency: 860-868MHZ,902-928MHZ (can be adjusted according to different countries or regions)

4. Support multi communication mode like RS-232 and TCP/IP

5. Support 8 external SAM antennas connectors

6. Output power can reach 30 dBm, support active mode, command mode and trigger mode etc

7. Highly reliable design for industrial structure, can meet the harsh working environment

Specification

Specification
Model	VF-682

Performance Index
Frequency range	860-868MHZ,902-928MHZ(can be customized)
Frequency modulation	Broad-spectrum frequency modulation (FHSS) or fixed-frequency, can be set by software
RF output	+10.0 to +32.5 dBm;50 ohm load.
The number of antennas	8 SMA antennas connectors
Communication interface	10M/100MAdaptive Ethernet,RS232
Communication rate	Serial rate 9600~115200bps,RJ45: 10Mbps
Secure firmware upgrade	Supply API SDK and VC and VB, Java application routines
Tag Performance
Reading distance	8dbiAntenna configuration, typical read range: 1 to 8 m (depends on tag)
Writing distance	0-1 meter
Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Mechanical electrical performance
Dimension	180 (L) * 145 (W) * 35 (H) mm
Power	With 220V AC input, the output of +12 V/3A DC power converter
Weight	<1KG
Humidity	5% to 95%, Non-condensing
IP rating	IEC IP51
Operating Temp.	-20 ºC to +60 ºC
Storage Temp.	-40°C to 80°C
