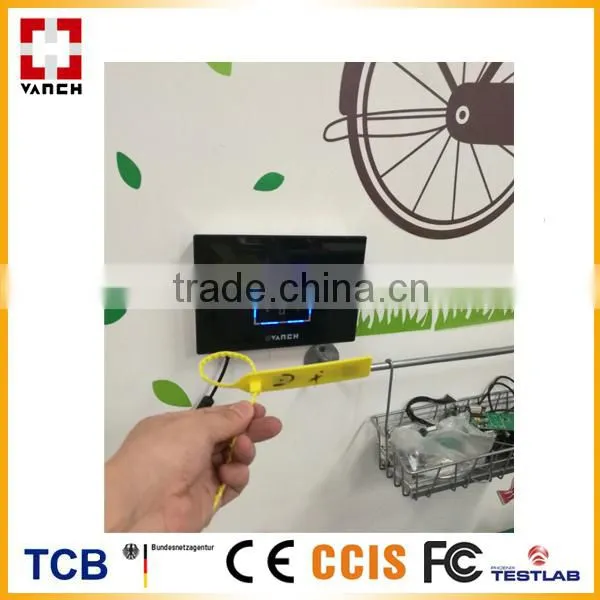

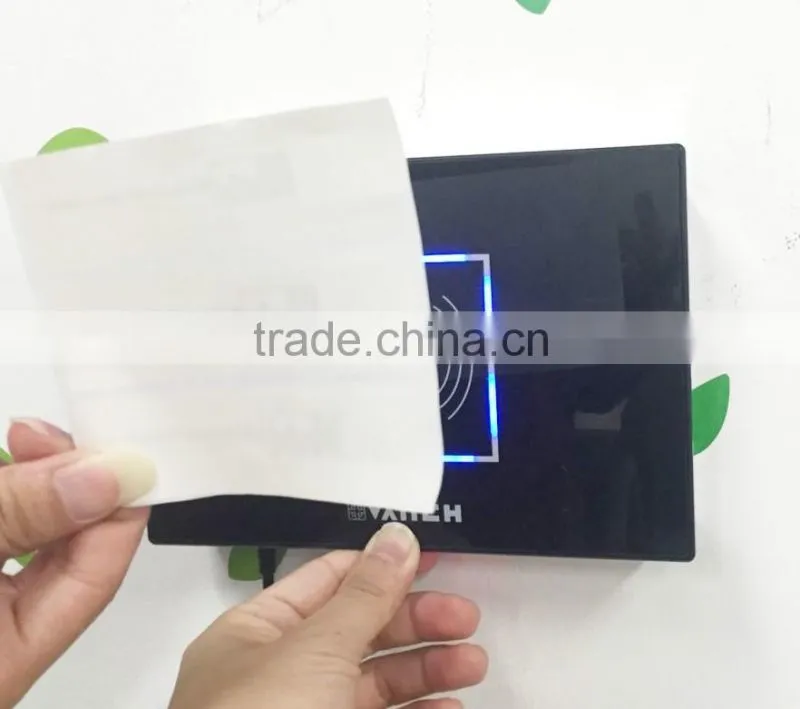

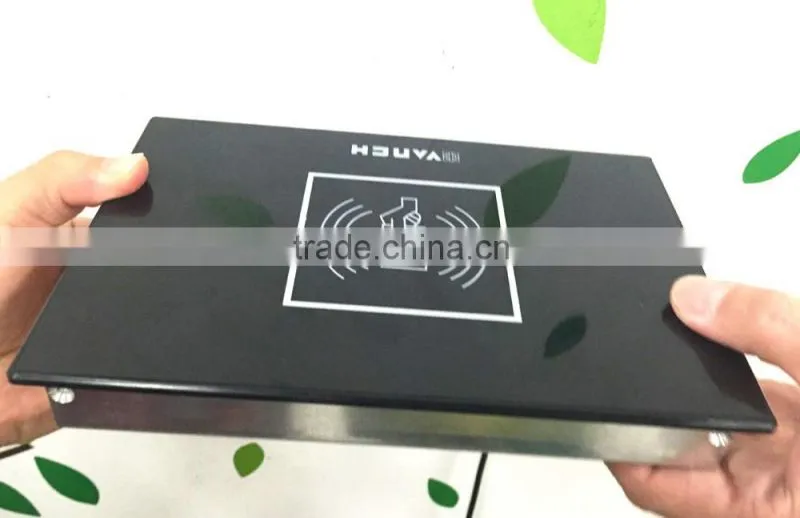

New design ISO18000-6C UHF fixed rfid reader for access control system
Introduction:
UHF RFID card-issuing and stock inventory device with serial port and LAN.
Can read card: write card, authorization, format, stock inventory and so on.
Features:
1. Support ISO-18000-6B, ISO-18000-6C (EPC G2), TK900 Protocol
2. Frequency range: 902-928MHZ (orl customized)
3. Support LAN and serial portl communication interface, the parameter can be customized
4. Read and write cards with fastl speed, supper performance and high sensitivity.
Model |
VD-68 |
Performance index | |
Frequency range |
865-868MHZ(or Customized ) |
Frequency modulation |
FHSS or fixed-frequency, can be set by software |
Antenna connection qty’ |
Built-in antenna |
Communication interface |
TCP/IP, RS232, Wiegand26/34, RS485 can connect with USB port by pallet |
Application software interface |
Provide SDK with DLL, support secondary development |
Tag Operation Performance | |
Reading distance |
Built-in dual-mode antenna, read>50cm, write>30cm |
Air interface |
ISO-18000-6B, ISO-18000-6C(EPC G2), TK900 |
Mechanical and Electrical performance | |
Dimension |
209(L)*138 (W)*33(H)mm |
Power |
DC12V/3A power supply |
Weight |
400g |
Humidity |
5% to 95%, non-condensing |
Protection grade |
IEC IP52 |
Operation temperature |
-20 ºC to +60 ºC |
Storage temperature |
-40°C to 80°C |
