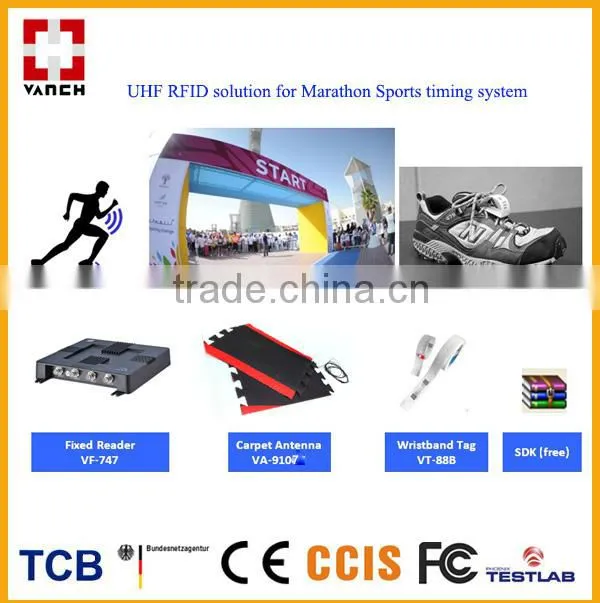

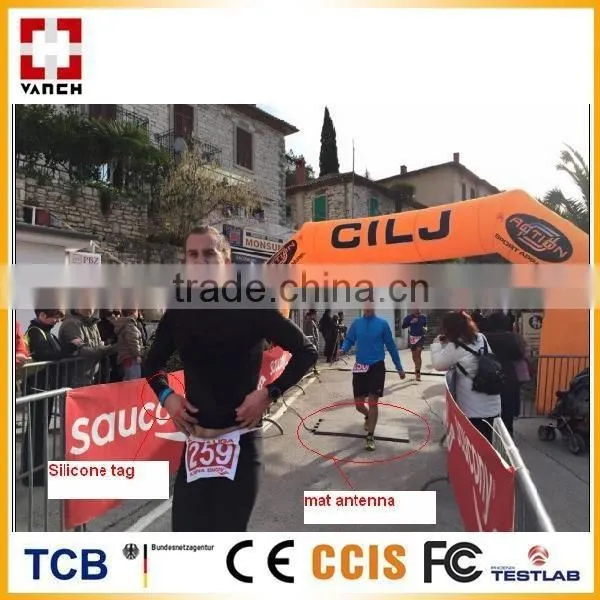

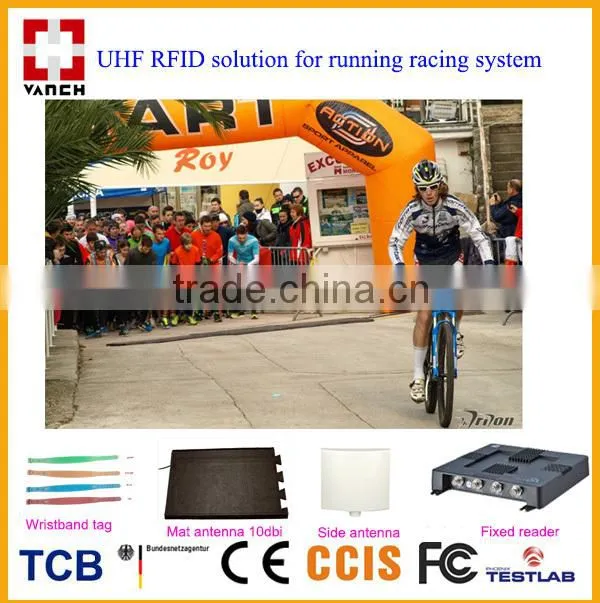

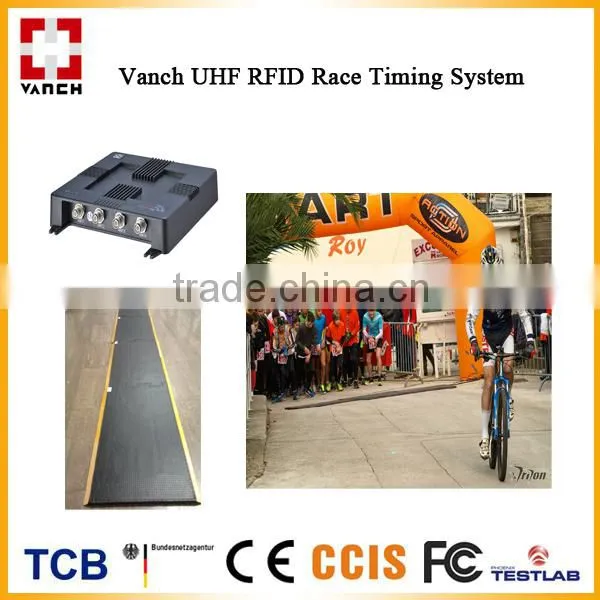

VANCH RFID Race Timing system/racing/marathon/swimming/GO Kart
l Ultra-thin in design, convenience in installation;
l Anti-interference, waterproof and dustproof, workable in extreme operating conditions;
l Fast read and write speed;

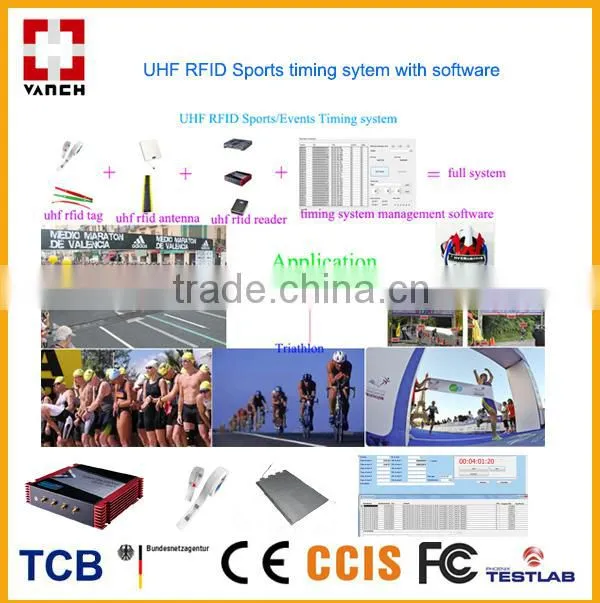

l Applications: sports event timing system, asset management etc.
Specification |
|
Model |
VA-9107 |
| |
Performance Index | |
Connector type |
TNC-male |
Connector location |
bottom |
Antenna Size(mm) |
1260*820mm |
N.W.(kg) |
9.0 |
G.W.(kg) |
9.5 |
Effective area (m2) |
≤1.3 |
Antenna housing material |
PVC/Rubber + EPDM |
Antenna housing color |
Black and red |
Operating temperature(℃) |
-20° to +65°C |
Electric Performance Index | |
Frequency (MHz) |
860-960mhz |
Polarization |
Circular polarization |
Gain (dBi) |
10dBi |
Far-field 3dB beam width |
70° in XZ, 38° in YZ |
Front-to-back ratio(dB) |
8 |
Impedance (Ω) |
50 |
VSWR |
≤1.3 |
IP rating |
IP-67 |
DC grounded protection |
Yes |
1, Supply different kinds of UHF RFID reades,antennas, tags(protocol of EPC C1G2 and ISO-18000/6C 902-928MHZ 865-868MHZ and 2.45GHZ active RFID Products
2, Have our own R&D Department to customize RFID Products for you.
3.Assist you to design different kinds of industry RFID solution
4.Products are CE and FCC certified
Shenzhen Vanch Intelligent was established in2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.VANCH products were widely used in City Smart transportation, Electric power system, asset and logistics management, the world's top 500 enterprises, government and military and other fields
Products available: rfid reader, rfid tag, uhf rfid antenna, rfid transponder,rfid printer,rfid module, active rfid, rfid handheld reader, rfid system, rfid solution, rfid smart card, USB RFID READER, RFID reader/writer. RFID reader writer,FREE SDK, RFID Technical Support, rfid mobile reader, 902-928MHz rfid reader, 915Mhz RFID,865-868MHz rfid reader, customized rfid reader,wifi rfid reader,rfid forklift reader, OEM rfid antenna, rfid transponder, Long Range 2.4G Active RFID Reader, 2.4G RFID Reader, active integrated reader, long distance RFID reader, directional rfid reader, active directional rfid reader, 2.45ghz rfid reader, vehicle access control rfid reader, RFID reader price rfid access control, rfid tracking, rfid laundry tag, passive rfid reader, rfid reader rs232 and so on, and our products are used in warehouse management, assets tracking, Automatic vehicle identification ,vehicle management/tracking, Parking management, bus tracking,tire tracking,highway toll collection,ETC RFID Hardware, Warehousing and logistics ,library & files management, jewelry management, farm management,School & personnel management and positioning , personnel tracking,animal tracking,rfid positioning, sports timing, file/document/library book tracking, high value asset tracking, tire tracking, people safety management and retail,etc.
