Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck

Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck thumbnail-1
Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck thumbnail-2
Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck thumbnail-3
Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck thumbnail-4
Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck thumbnail-5
Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck thumbnail-6
Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck photo-1
Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck photo-2
Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck photo-3
Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck photo-4
Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck photo-5
Foton Ollin 4.3m Refrigerated Truck Body With Stainless Steel Meat Hanging Hook Meat Hook Reefer Truck photo-6
US$ 32,000 - 36,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COLDKING
Model:
AJC4300RE1
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Jinan Atop Industry & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name COLDKING
Model AJC4300RE1
Place of Origin China
Transmission Type Manual
Condition New
Emission Standard Euro 4
Fuel Type Diesel
Dimensions (L x W x H) (mm) 6,000mm (L) x 2,200mm (W) x 3,000mm (H)
Box Dimensions (L x W x H) (mm) 4,300mm (L) x 2,200mm (W) x 2,100mm (H)
Temperature Range +15C To -25C
Gross Vehicle Weight 7360

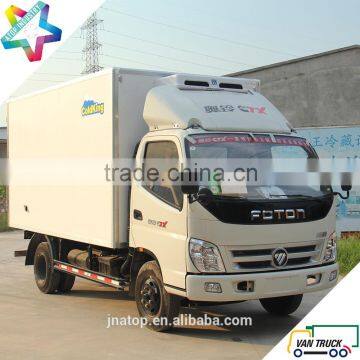

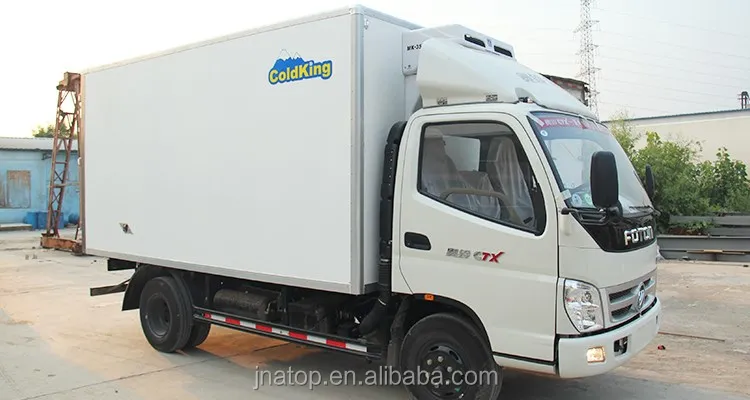

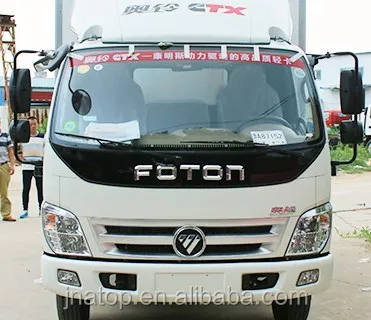

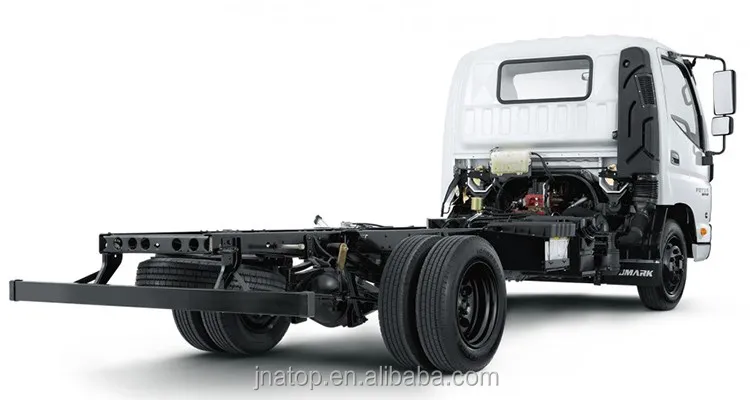

Truck Chassis
Chassis Brand
Foton
Chassis Model
Ollin CTX
Steering Wheel
Left Hand Drive reefer truck body
Drive Train
4 x 2 reefer truck body
Cab Style
Single Cab reefer truck body
Seating Capacity
3 reefer truck body
G.V.W
4,495 Kgs
Kerb Weight
2,805 Kgs reefer truck body
Rated Payload
1,495 Kgs reefer truck body
Overall Dimension
6.0m(L) x 2.2m(W) x 3.1m(H)
Wheelbase
3,360mm  reefer truck body
Max. Speed
95Km/h reefer truck body
Rim/Tires
7.00R16/7.50R16 reefer truck
Front Track
1,730mm  reefer truck body
Rear Track
1,590mm  reefer truck body

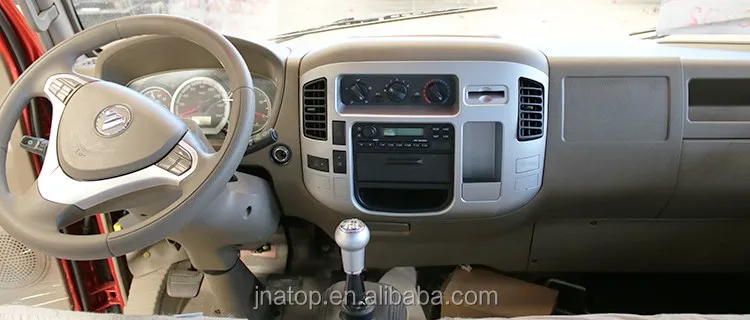

Manual Tiltable & Collapsible Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers;  With 2 Audio Speaker; reefer truck body refrigerated truck body

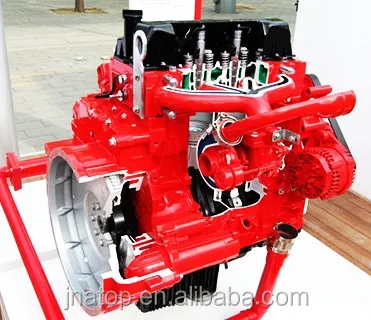

Engine Brand
CUMMINS
Engine Model
ISF3.8s5141 reefer truck body
Engine Emission
EURO 4/EURO 5 reefer truck body
Displacement
3,760cc reefer truck body
Max. Power
105Kw (143Hp) reefer truck body
Max. Torque
450N.m reefer truck body
No. of Cylinder
4 reefer truck body reefer truck
Key Features
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger

Rear suspension - 11+7 multi-leaf main spring with multi-leaf helper, double acting telescopic hydraulic shock absorbers reefer truck body

Front suspension - 9 taper leaf spring, double acting telescopic hydraulic shock absorbers reefer truck body refrigerated truck body

Cold Riveted Ladder Frame 193 x 65 x 6.5mm Side Rail  reefer truck body

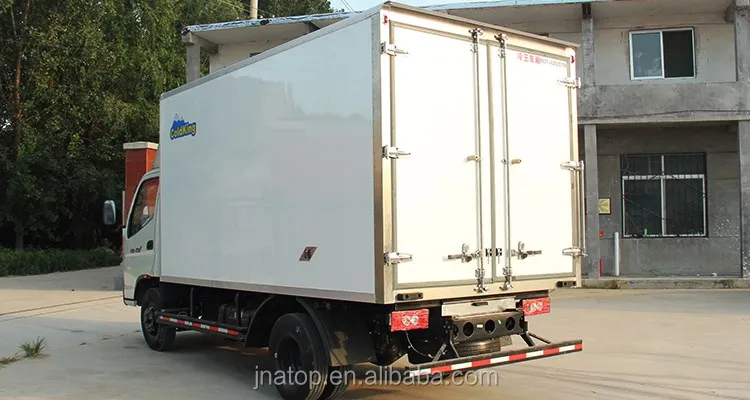

Truck Body Details
Truck Body
Key Features
ColdKing refrigerated body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Truck Body Outer Size
4.3m(L)x2.2m(W)x2.1m(H)
Truck Body Inner Size
4.13m(L)x2.03m(W)x1.89m(H)
Roof/Floor Panel
105mm Thickness
Side Wall Panel
105mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
105mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
None, Optional
Side Door Location
None, Optional
Side Door Type
None, Optional
Side Door Size
None, Optional

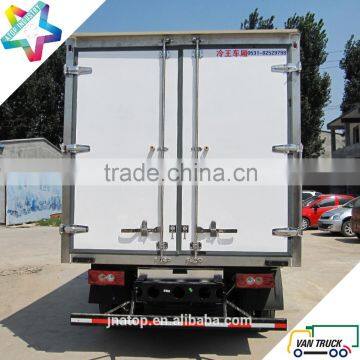

Rear Door Type
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First
Aluminium Rail
4 (Four ) Rows
Aluminium Corner Rail
None, Available & Optional
Meat Hook
60- 80 Units of Stainless Steel Double Meat Hook  refrigerated truck body
Truck Body Flooring
Heavy Duty Aluminum Alloy T Type Airflow Flooring Optional reefer truck body
Truck Body Inside Cargo Control System
None, Optional reefer truck body reefer truck body
Ceiling Light
2 (Two) Sets of 12/24V Multi-Voltage LED
Marker Light
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
None, Optional  refrigerated truck body  refrigerated truck body  refrigerated truck body

Refrigeration Unit          Service Ladder
None, Optional  refrigerated truck body
Refrigeration Unit          Service Platform
None, Optional  refrigerated truck body  refrigerated truck

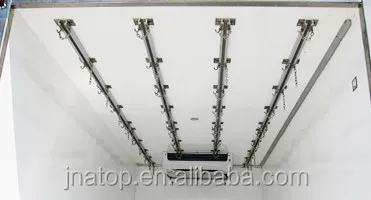

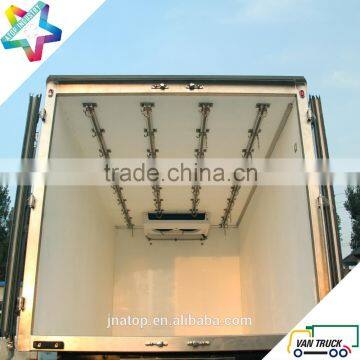

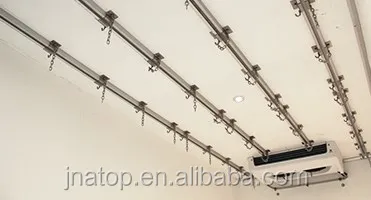

Heavy Duty Meat Hanging System

Extruded Silver Anodized Aluminum Alloy Rails Installed On Specially Designed & Made Truck Body Panel

Stainless Steel Parts

Stainless Steel Meat Hooks And Rail Support Brackets Provides Anti-Rust Working Condition

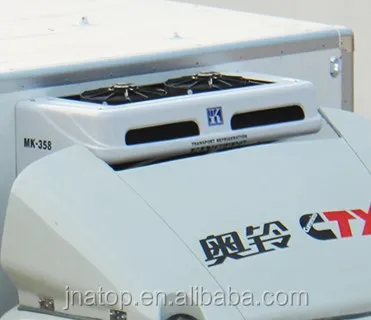

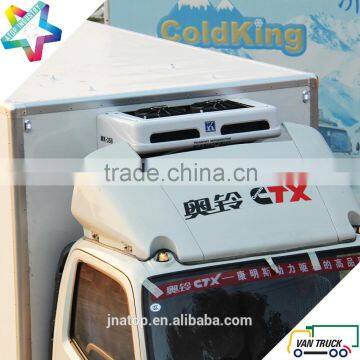

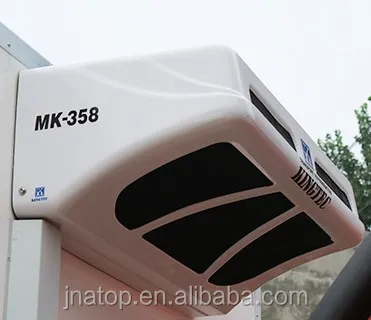

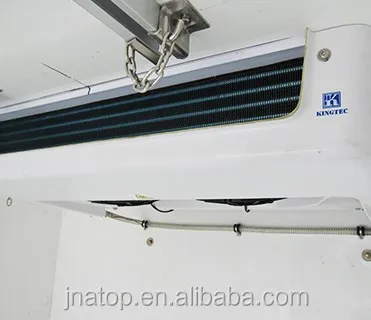

Refrigeration Unit

Refrigeration Unit Brand

Kingtec

Refrigeration Unit Model

MK-358

Refrigeration Unit Type

Truck Engine Driven, Split

Refrigerant

HFC R404a

Airflow Volume

1,600m3/h

Refrigeration Capacity
(+30C Ambient/Road )

2,380W (@ -20C)
4,420W (@ 0C)

Refrigeration Capacity
(+30C Ambient/Standby)

3,420W (@ 0C)
1,750W (@ -20C)

Defrost

Automatic Hot Gas
Compressor
Model/Type
TM16 Swash Plate Type
Number of Cylinders
6   refrigerated truck body
Displacement
162cc  refrigerated truck body
Max. Recommended Speed
3,000rpm
Optional Items

Hydraulic Tail Lift

Aluminium/Steel Platform Hydraulic Tail Lift Available  reefer truck body reefer truck body

Cargo Control System

Smart & customized cargo Loading control system reefer truck body reefer truck body reefer truck body

Products Show

4.5T Refrigerated Truck

4.3m refrigerated/reefer truck body fitted on Foton Aumark 143Hp truck chass

6.6T Refrigerated Truck

4.3m refrigerated/reefer truck body fitted on Isuzu NPR 600P 120Hp truck chassis

6.5T Refrigerated Truck

4.3m refrigerated/reefer truck body fitted on Sino-Truck Howo 143Hp truck chassis
