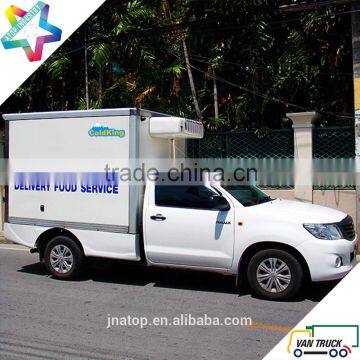

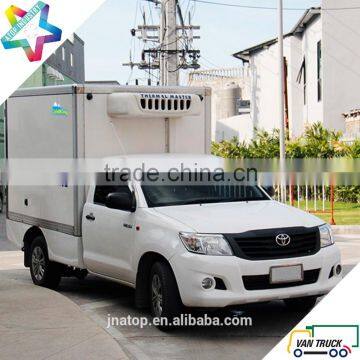

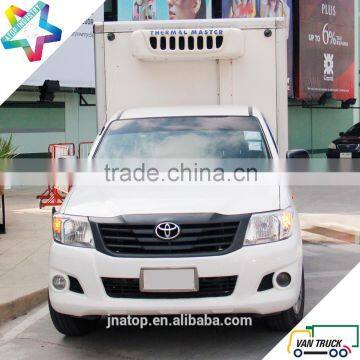

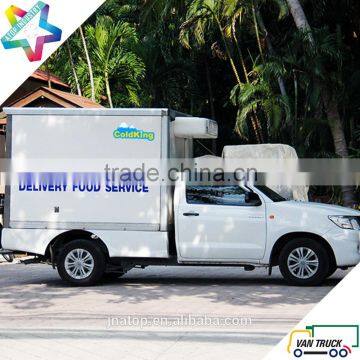

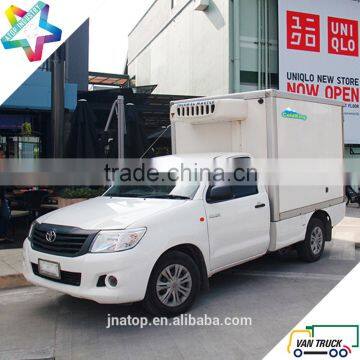

1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks

1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks thumbnail-1
1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks thumbnail-2
1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks thumbnail-3
1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks thumbnail-4
1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks thumbnail-5
1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks thumbnail-6
1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks photo-1
1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks photo-2
1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks photo-3
1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks photo-4
1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks photo-5
1.0 Tonne 2.4m Reefer Truck Body UTE Pickup Trucks photo-6
US$ 3,000 - 11,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COLDKING
Model:
AJC2400IC2
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Jinan Atop Industry & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name COLDKING
Model AJC2400IC2
Place of Origin China
Transmission Type Manual
Condition New
Emission Standard Euro 4
Fuel Type Diesel
Dimensions (L x W x H) (mm) 5000mm(L) x 1850mm(W) x 2250mm(H)
Box Dimensions (L x W x H) (mm) 2400mm(L) x 1800mm(W) x 1500mm(H)
Temperature Range +10C to -40C, -40C To -25C
Gross Vehicle Weight 3000
Truck Body Details


Pickup Truck Body Key Features
ColdKing pickup truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Pickup Truck Body Outer Size
2.4m(L)x1.8m(W)x1.5m(H)
pickup trucks body
Pickup Truck Body Inner Size
2.23m(L)x1.63m(W)x1.33m(H)
pickup trucks body
Roof/Floor Panel
85mm Thickness
Side Wall Panel
85mm Thickness
Front Wall Panel
85mm Thickness
Rear Door Panel
85mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
None  pickup trucks body
Side Door Location
None pickup trucks body
Side Door Type
None pickup trucks body
Side Door Size
None pickup trucks body
Rear Door Type
Full Size Double Opening Rear Door/600mm(W) x 900mm(H) Single Opening Rear Door
Truck Body Flooring
Reinforced Floor Covered With Aluminum Checkered Plate/Stainless Steel Sheet
Pickup Truck Body Inside Cargo Control System
None, Optional pickup trucks body pickup trucks body
Ceiling Light
ice cream truck body
1 (One) Set of 12/24V Multi-Voltage LED
Marker Light
ice cream truck body
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch  ice cream truck body  ice cream truck body
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch

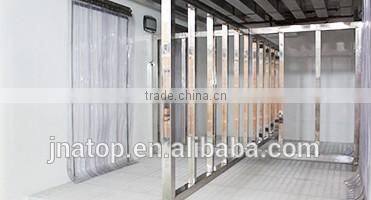

Insulating Curtain  ice cream truck body  ice cream truck body
European Standard -40C PVC Strip Curtain System For Doors

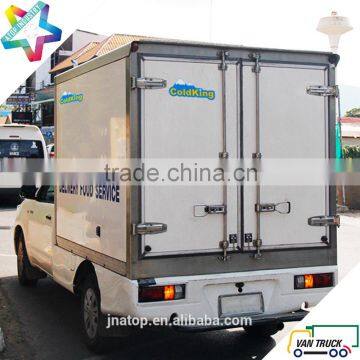

Full Size Double Opening Rear Door

Full Size Double Opening Rear Door With Full Sets of Stainless Steel Lock Sets & Hinges For Rapid Unloading & Delivery of Cargo In-city Daily Delivery pickup truck body

Aluminum Checkered Plate Flooring

Reinforced Floor Covered With Aluminum Checkered Plate, Stainless Steel Sheet Flooring are Optional pickup trucks body pickup trucks body pickup trucks body pickup trucks

1.7m(W) x 1.5m(H) Rear Door

pickup trucks body pickup trucks body

1.8m(W) x 1.5m(H) Rear Door

pickup trucks body pickup trucks body

1.8m(W) x 1.3m(H) Rear Door

pickup trucks body pickup trucks body

Refrigeration Unit
Optional Refrigeration Unit - 1
Refrigeration Unit Brand
Carrier reefer truck body
Refrigeration Unit Model
V300
Refrigeration Unit Type
Truck Engine Direct Driven, Condenser & Evaporator Split pickup trucks body
Refrigerant
HFC R404a
Condenser Mounted Method
Over-Cab
Compressor Model
Carrier 130
Compressor No. of Cylinders
6 reefer truck body
Compressor Displacement
131cm3 reefer truck body
Max. Recommended Speed
2,400rpm
Airflow Volume
1,000m3/Hr
Discharge Velocity (Air Throw)
pickup trucks body
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
Return Air To Evaporator
0C
-20C
Refrigeration Capacity
(On Engine Power @2400rpm)
2,760W
1,530W
Electric Stand-By System
Unavailable
Refrigeration Capacity
(On Electric Stand-By)
Defrost
Automatic Hot Gas Defrost/Manual Defrost
Optional Refrigeration Unit - 2
Refrigeration Unit Brand
Kingtec
Refrigeration Unit Model
K125
Refrigeration Unit Type
Truck Engine Direct Driven, Condenser & Evaporator Split pickup trucks body
Refrigerant
HFC R404a
Condenser Mounted Method
Over-Cab
Compressor Model
X214 reefer truck body
Compressor No. of Cylinders
5 reefer truck body
Compressor Displacement
108cm3 reefer truck body
Max. Recommended Speed
3000rpm
Airflow Volume
1,200m3/Hr
Discharge Velocity (Air Throw)
pickup trucks body
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
Return Air To Evaporator
0C
-20C
Refrigeration Capacity
(On Engine Power @2400rpm)
2,020W
1,130W
Electric Stand-By System
Unavailable
Refrigeration Capacity
(On Electric Stand-By)
Defrost
Automatic Hot Gas Defrost/Manual Defrost
Optional Items

Body Ladder & Top Brackets

Stainless Steel Body Ladder & Top Brackets For Additional Cargo & Used Packages pickup trucks body pickup trucks body pickup trucks body pickup trucks body pickup trucks

Roll Carts

For rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of pickup trucks body

Internal Dividers

Internal Dividers In Stainless Steel To Divide Different Cargo Space For Rapid & Efficient Loading & Delivery  pickup trucks body pickup trucks body pickup trucks

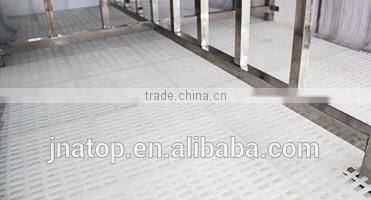

Removable PVC Grating

Removable PVC Grating Is Good At Prevent Cargo Packages From Condensing Water Damage pickup trucks body pickup trucks body pickup trucks body pickup trucks

Products Show

2.4m Ice Cream Pickup Body

2.4m Eutectic ice cream pick up truck Body fitted on Toyota Hilux pickup truck chassis pickup trucks body

2.45m UTE Pickup Truck

2.45m 1 Tonne UTE pickup trucks  pickup trucks body pickup trucks body pickup trucks body pickup trucks

4.8m Ice Cream Truck Body

4.8m ice cream truck body fitted on Isuzu NPR truck chassis pickup trucks body pickup trucks body pickup trucks
