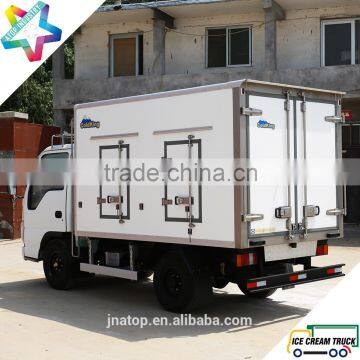

1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice

1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice thumbnail-1
1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice thumbnail-2
1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice thumbnail-3
1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice thumbnail-4
1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice thumbnail-5
1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice thumbnail-6
1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice photo-1
1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice photo-2
1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice photo-3
1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice photo-4
1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice photo-5
1.5 - 3.0T Double-temperature 3.1m Reefer Truck Body Light Duty Yogurt Ice Cream Truck Supplier's Choice photo-6
US$ 28,000 - 31,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COLDKING
Model:
AJC3100MT1
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Jinan Atop Industry & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name COLDKING
Model AJC3100MT1
Place of Origin China
Transmission Type Manual
Condition New
Emission Standard Euro 4
Fuel Type Diesel
Dimensions (L x W x H) (mm) 4.75m(L) x 1.89m(W) x 2.63m(H)
Box Dimensions (L x W x H) (mm) 3.1m (L) x 1.8m (W) x 1.75m (H)
Temperature Range +30C to -25C
Gross Vehicle Weight 4200

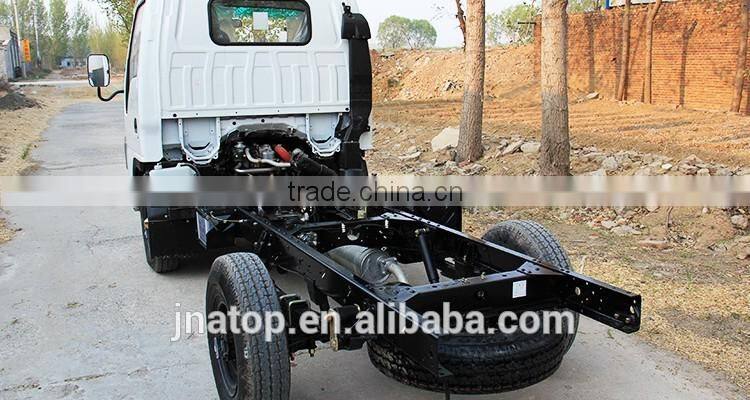

Truck Chassis
Chassis Brand
China Isuzu
Chassis Model
NMR
Steering Wheel
Left Hand Drive   ice cream truck
Drive Train
4 x 2  ice cream truck body
Cab Style
Single Cab ice cream truck
Seating Capacity
2 ice cream truck
G.V.W
4,200Kgs
Kerb Weight
2,650Kgs ice cream truck
Rated Payload
1,550Kgs ice cream truck
Overall Dimension
4.75m(L)x1.89m(W)x2.63m(H)
Wheelbase
2,490mm  ice cream truck
Max. Speed
98km/h  ice cream truck
Tires
7.00R15 (4+1) ice cream truck
Front Track
1,385mm  ice cream truck
Rear Track
1,395mm  ice cream truck

Left Hand Steering Wheel Rim; Manual Tiltable Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With Manual Windows; With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers; With 2 Audio Speaker

Engine Brand
Isuzu
Engine Model
4JB1-CN ice cream truck body
Engine Emission
EURO 4 ice cream truck
Displacement
2,771cc
Max. Power
72Kw (98Hp) ice cream truck
Max. Torque
220N.m ice cream truck body
No. of Cylinder
4
Key Features
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger

Hydraulic Power Assisted Rack & Pinion;Leaf Spring With Live Beam Axle Suspension.

Vacuum Boosted Hydraulic System  ice cream truck  ice cream truck ice cream truck

Manual Adjustable & Manual Folding Side Mirrors; Front Fog Light  ice cream truck  ice cream truck

Truck Body Details
Truck Body
Key Features
ColdKing refrigerated body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Truck Body Outer Size
3.1m(L)x1.8m(W)x1.75m(H)
Truck Body Inner Size
2.89m(L)x1.59m(W)x1.54m(H)
Roof/Floor Panel
105mm Thickness
Side Wall Panel
105mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
105mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
4 (One) Sets
Side Door Location
2 Sets On Left/2 Sets On Right
Side Door Type
Single Opening
Side Door Size
600mm(W)x900mm(H)
Rear Door Type
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First
Multi-Temperature
System Type
Double Temperature Configuration, Divided To Front & Rear Space, None-Liftable, None-Slidable Partition Wall With Full Size Double Opening Access Door
Front Space Temp.
-25C
Rear Space Temp.
Ambient Temperature
Partition Wall Panel
45mm Thickness
Partition Wall Door
Full Size Double Opening
Multi-Temperature Pressure Relief Ventilation
None, Optional
Mulit-Temperature Adjusting Ventilation System
None, Optional
Truck Body Flooring
Anti-Slip FRP Reinforced Flooring For Pallet Trolley Operation
Truck Body Inside Cargo Control System
None, Optional
Ceiling Light
2 (Two) Sets of 12/24V Multi-Voltage LED
Marker Light
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
European Standard -40C PVC Strip Curtain System For Side & Rear Doors
Refrigeration Unit      Service Ladder
Stainless Steel
Refrigeration Unit      Service Platform
Stainless Steel + Aluminum Checkered Plate

Full Size Double Opening Rear Door With Stainless Steel Lock Sets & Hinges

600mm(W) x 900mm(H) Single Opening Side Door With Stainless Steel Lock Sets & Hinges

Double Temperature Partition Wall With Full Size Double Opening Access Door

European Standard -40C PVC Strip Curtain System For Side & Rear Doors

Stainless Steel Refrigeration Unit Service Ladder & Platform

Refrigeration Unit

Refrigeration Unit Brand

Kingtec

Refrigeration Unit Model

S293E

Refrigeration Unit Type

Truck Engine Driven, Split

Refrigerant

HFC R404a

Airflow Volume

1380m3/h

Refrigeration Capacity
(+30C Ambient/Road )

1880W (@ -20C);
3320W (@ 0C)

Refrigeration Capacity
(+30C Ambient/Standby)

1255W (@ -20C);
1980W (@ 0C)

Defrost

Automatic Hot Gas
Compressor
Model/Type
Swash plate with magnetic clutch
Number of Cylinders
6
Displacement
147cc
Max. Recommended Speed
3,000rpm

The road compressor is powered by the vehicles engine and while a second compressor is powered by an electric motor.

It possible to use electric standby to drive the unit.The stand-by units are installed in the condensing units.

Powerful  evaporator provided 1380m3/h (810 cu ft/min) airflow volume refrigerated truck body refrigerated truck

Smart in-cab control and wiring harness refrigerated truck body refrigerated truck body  refrigerated truck body

Optional Items

Hydraulic Tail Lift

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available refrigerated truck body refrigerated truck body refrigerated truck body refrigerated truck body

Cargo Control System

Smart & customized cargo Loading control system  refrigerated truck body refrigerated truck body refrigerated truck body refrigerated truck body refrigerated truck body

Products Show

3.3T Refrigerated Truck

4.3m refrigerated/reefer truck body fitted on Isuzu NPR 600P truck chassis

4.5T Refrigerated Truck

4.3m refrigerated/reefer truck body fitted on Foton Aumark truck chassis

1.5T Refrigerated Truck

3.4m refrigerated/reefer truck body fitted on Foton K1 2800 truck chassis
