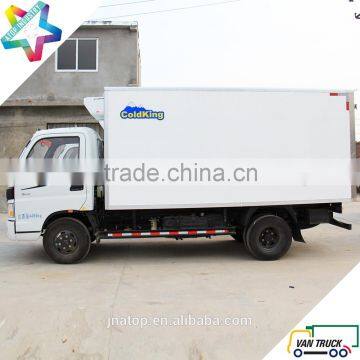

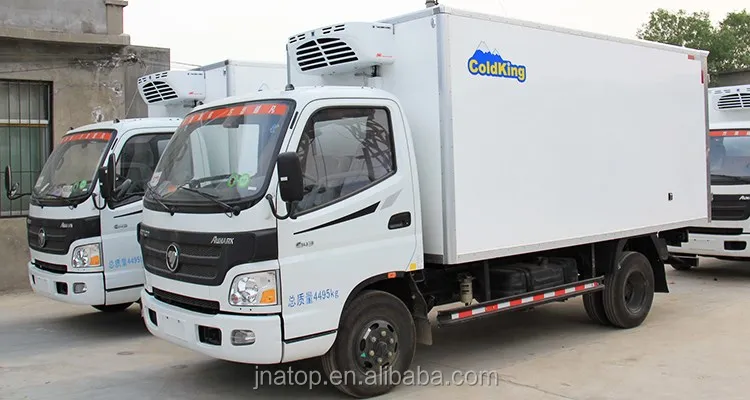

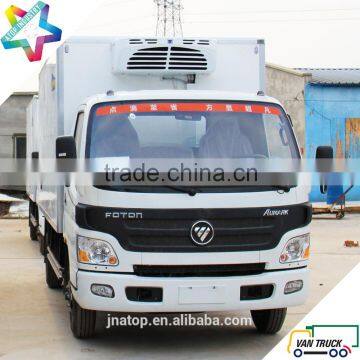

Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice

Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice thumbnail-1
Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice thumbnail-2
Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice thumbnail-3
Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice thumbnail-4
Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice thumbnail-5
Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice thumbnail-6
Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice photo-1
Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice photo-2
Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice photo-3
Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice photo-4
Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice photo-5
Foton Aumark 4.3m Reefer Truck Body 1.1T - 4.6T Ice Cream Truck Supplier's Choice photo-6
US$ 32,000 - 35,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COLDKING
Model:
AJC4300RE1
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Jinan Atop Industry & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name COLDKING
Model AJC4300RE1
Place of Origin China
Transmission Type Manual
Condition New
Emission Standard Euro 4
Fuel Type Diesel
Dimensions (L x W x H) (mm) 6,000mm (L) x 2,200mm (W) x 3,100mm (H)
Box Dimensions (L x W x H) (mm) 4,300mm (L) x 2,200mm (W) x 2,100mm (H)
Temperature Range +15C To -25C
Gross Vehicle Weight 4495

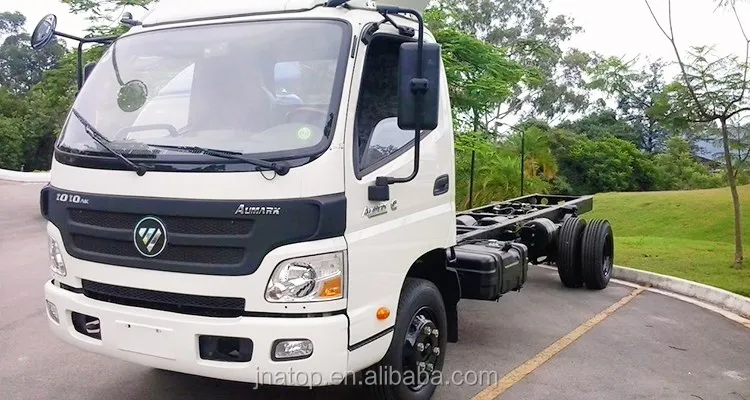

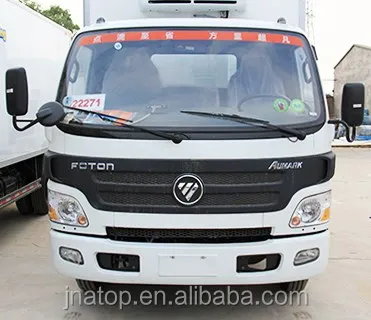

Truck Chassis
Chassis Brand
Foton
Chassis Model
Aumark C143
Steering Wheel
Left Hand Drive ice cream truck
Drive Train
4 x 2 ice cream truck
Cab Style
Single Cab ice cream truck
Seating Capacity
3  ice cream truck
G.V.W
4,495 Kgs
Kerb Weight
2,805 Kgs ice cream truck
Rated Payload
1,495 Kgs ice cream truck
Overall Dimension
6.0m(L) x 2.2m(W) x 3.1m(H)
Wheelbase
3,360mm ice cream truck
Max. Speed
95Km/h ice cream truck
Rim/Tires
7.00R16/7.50R16 reefer truck
Front Track
1,730mm ice cream truck
Rear Track
1,590mm ice cream truck

Manual Tiltable & Collapsible Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers;  With 2 Audio Speaker; ice cream truck ice cream truck ice cream truck

Engine Brand
CUMMINS
Engine Model
ISF3.8s5141 ice cream truck
Engine Emission
EURO 4/EURO 5 ice cream truck
Displacement
3,760cc  ice cream truck
Max. Power
105Kw (143Hp) ice cream truck
Max. Torque
450N.m ice cream truck
No. of Cylinder
4  ice cream truck
Key Features
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger

Rear suspension - 11+7 multi-leaf main spring with multi-leaf helper, double acting telescopic hydraulic shock absorbers  ice cream truck ice cream

Front suspension - 9 taper leaf spring, double acting telescopic hydraulic shock absorbers  ice cream truck ice cream truck ice cream truck

Cold Riveted Ladder Frame 193 x 65 x 6.5mm Side Rail  ice cream truck ice cream truck ice cream truck ice cream

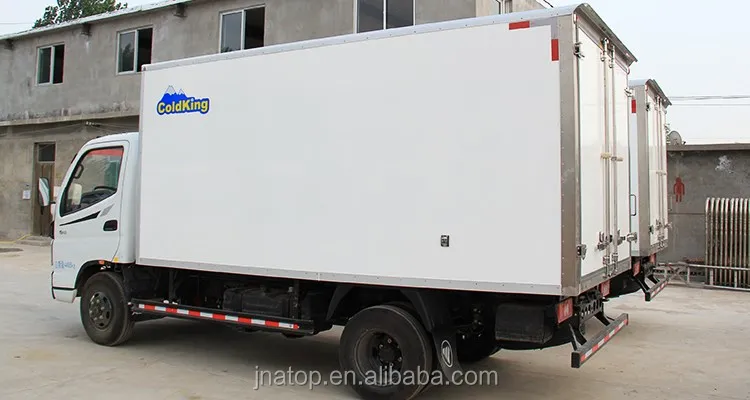

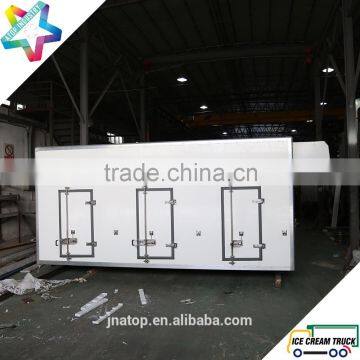

Truck Body Details
Truck Body
Key Features
ColdKing refrigerated body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Truck Body Outer Size
4.3m(L)x2.2m(W)x2.1m(H)
Truck Body Inner Size
4.13m(L)x2.03m(W)x1.89m(H)
Roof/Floor Panel
105mm Thickness
Side Wall Panel
85mm Thickness
Front Wall Panel
85mm Thickness
Rear Door Panel
85mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
None, Optional
Side Door Location
None, Optional
Side Door Type
Single/Double Opening
Side Door Size
Customized
Rear Door Type
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First
Multi-Temperature
System Type

None, Optional ice cream truck ice cream truck ice cream truck ice cream truck ice cream truck ice cream truck ice cream truck ice cream truck ice cream truck ice cream truck
Truck Body Flooring
Heavy Duty Aluminum Alloy T Type Airflow Flooring
Cargo Control System
None, Optional
Ceiling Light
2 (Two) Sets of 12/24V Multi-Voltage LED
Marker Light
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
European Standard -40C PVC Strip Curtain System For Rear Doors

Refrigeration Unit         Service Ladder
None, Optional
Refrigeration Unit       Service Platform
None, Optional

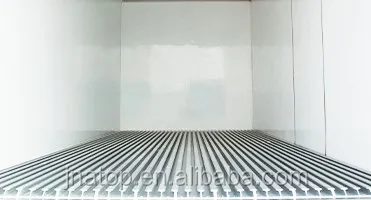

Airflow Flooring

Heavy Duty Aluminum Alloy T Type Airflow Flooring

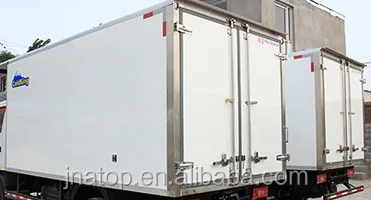

Rear Door Assembly

Stainles  Steel Rear Door Frame With Stainless Steel Lock Sets & Stainless Steel Hinges.

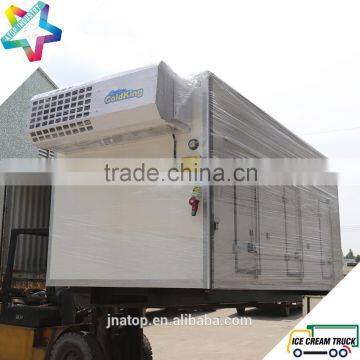

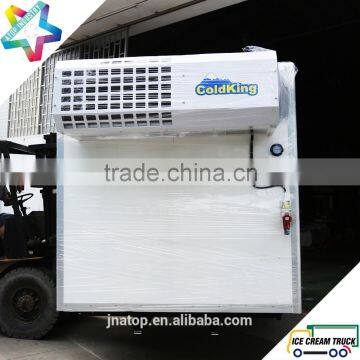

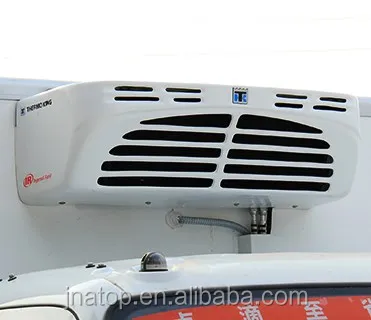

Refrigeration Unit

Refrigeration Unit Brand

Thermo King

Refrigeration Unit Model

KV-300

Refrigeration Unit Type

Truck Engine Driven, Split

Refrigerant

HFC R404a

Airflow Volume

1,050m3/h

Refrigeration Capacity
(+30C Ambient/Road )

1,740W (@ -18C)
3,700W (@ 2C)

Refrigeration Capacity
(+30C Ambient/Standby)

Available Optional

Defrost

Automatic Hot Gas
Compressor
Model/Type
TM16
Number of Cylinders
6
Displacement
163cc
Max. Recommended Speed
2,400rpm
Optional Items

Hydraulic Tail Lift

Aluminium/Steel Platform Hydraulic Tail Lift Available

Cargo Control System

Smart & customized cargo Loading control system

Internal Dividers

Internal Dividers In Stainless Steel To Divide 4 (Four) Cargo Space For Rapid & Efficient Loading & Delivery. mini ice cream truck body ice cream truck body

Roll carts

Roll carts for rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of refrigeration truck body

Multi-Temperature Partition

Mult-temperature purpose longitudinally moveable, insulated transverse partition wall.
