4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck

4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck thumbnail-1
4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck thumbnail-2
4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck thumbnail-3
4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck thumbnail-4
4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck thumbnail-5
4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck thumbnail-6
4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck photo-1
4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck photo-2
4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck photo-3
4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck photo-4
4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck photo-5
4.0T Light Duty Foton K1 2800 Chassis Refrigeration Reefer Truck photo-6
US$ 28,000 - 31,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COLDKING
Model:
AJC3400MT1
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Jinan Atop Industry & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name COLDKING
Model AJC3400MT1
Place of Origin China
Transmission Type Manual
Condition New
Emission Standard Euro 4
Fuel Type Diesel

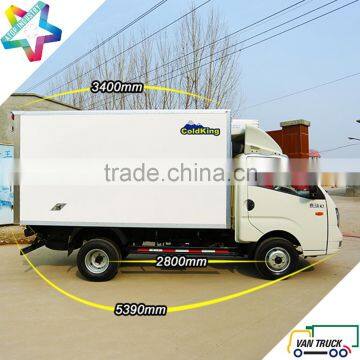

Dimensions (L x W x H) (mm) 5.39m(L) x 1.74m(W) x 2.67m(H)
Box Dimensions (L x W x H) (mm) 3.4m (L) x 1.74m (W) x 1.85m (H)
Temperature Range +30C to -25C
Gross Vehicle Weight 4000
Truck Chassis
Chassis Brand
Foton
Chassis Model
K1 2800
Steering Wheel
Left Hand Drive truck body
Drive Train
4 x 2 truck body
Cab Style
Single Cab reefer truck
Seating Capacity
2 reefer truck
G.V.W
4,000Kgs
Kerb Weight
2,150Kgs truck body
Rated Payload
1,850Kgs reefer truck
Overall Dimension
5.39m(L) x 1.74m(W) x 2.67m(H)
Wheelbase
2,800mm truck body
Max. Speed
90km/h  reefer truck
Tires
6.00-15 (6+1) truck body
Front Track
1,385mm  reefer truck
Rear Track
1,280mm  truck body
Fuel Tank
125L  truck body

Left Hand Steering Wheel Rim; Manual Tiltable Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With Auto Windows; With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers; With 2 Audio Speaker;

Engine Brand
QUANCHAI
Engine Model
4A1-68C40 reefer truck
Engine Emission
EURO 4  truck body
Displacement
1,809cc   reefer truck
Max. Power
50Kw (69Hp)  truck  body
Max. Torque
170N.m   truck body
No. of Cylinder
4  reefer truck
Key Features
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger

Hydraulic Power Assisted Rack & Pinion;Leaf Spring With Live Beam Axle Suspension.

Vacuum Boosted Hydraulic System truck body

Manual Adjustable & Manual Folding Side Mirrors; Front Fog Light reefer truck

Truck Body Details
Key Features

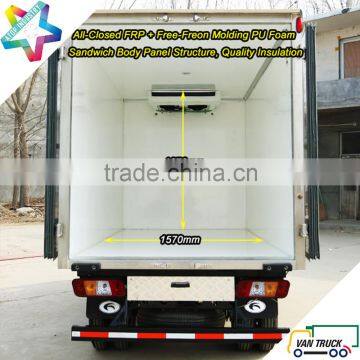

ColdKing refrigerated body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Truck Body Outer Size
3.4m(L)x1.74m(W)x1.85m(H)
Truck Body Inner Size
3.23m(L)x1.57m(W)x1.64m(H)
Roof/Floor Panel
105mm Thickness
Side Wall Panel
85mm Thickness
Front Wall Panel
85mm Thickness
Rear Door Panel
85mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
None truck body
Side Door Location
None reefer truck
Side Door Type
None truck body
Side Door Size
None reefer truck
Rear Door Type
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First truck body
Multi-Temperature System Type

None, Optional reefer truck  truck body

Front Space Temp.
None truck body
Rear Space Temp.
None reefer truck
Partition Wall Panel
None truck body
Partition Wall Door
None  reefer truck
Multi-Temperature Pressure Relief Ventilation
None truck body
Mulit-Temperature Adjusting Ventilation System
None reefer truck
Truck Body Flooring
FRP Reinforced Flooring For Pallet Trolley Operation truck body  reefer truck
Cargo Control System
None, Optional reefer truck truck body
Ceiling Light
2 (Two) Sets of 12/24V Multi-Voltage LED
Marker Light
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
European Standard -40C PVC Strip Curtain System For Rear Doors
Refrigeration Unit Service Ladder
None, Optional reefer truck truck body
Refrigeration Unit Service Platform
None, Optional reefer truck truck body

White Color FRP Sheet Panel Skin reefer truck truck body

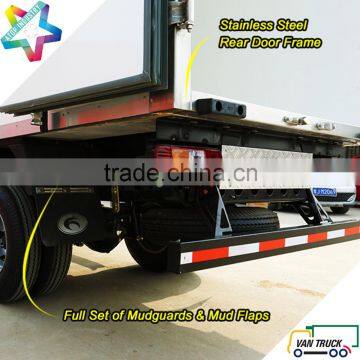

Full Size Double Opening Rear Door With Stainless Steel Lock Sets & Hinges reefer truck truck body

FRP Reinforced Flooring For Pallet Trolley Operation reefer truck truck body

Stainless Steel Rear Door Frame With Rubber Bumper reefer truck

Anodized Aluminum Alloy Decoration Profiles reefer truck truck body

Refrigeration Unit
Refrigeration Unit Brand
Kingtec
Refrigeration Unit Model
S293E
Refrigeration Unit Type
Truck Engine Driven, Split
Refrigerant
HFC R404a
Airflow Volume
1380m3/h
Refrigeration Capacity
(+30C Ambient/Road )
1880W (@ -20C);
3320W (@ 0C)
Refrigeration Capacity
(+30C Ambient/Standby)
1255W (@ -20C);
1980W (@ 0C)
Defrost
Automatic Hot Gas
Compressor
Model/Type
Swash plate with magnetic clutch
Number of Cylinders
6 reefer truck
Displacement
147cc reefer truck truck body
Max. Recommended Speed
3,000rpm

The road compressor is powered by the vehicles engine and while a second compressor is powered by an electric motor. reefer truck

It possible to use elecetric standby to drive the unit.The stand-by units are installed in the condensing units.

Powerful  evaporator provided 1380m3/h (810 cu ft/min) airflow volume

Smart in-cab control and wiring harness

Optional Items

Side Door

Customized size single opening side door

Cargo Control System

Smart & customized cargo Loading control system

Access Ladder

Foldable zinc-coated access ladder for side door and/or rear door.

Roll carts

Roll carts for rapid and efficient loading, delivery and unloading goods.

Multiple Temperature Partition

Multiple temperature purpose longitudinally moveable, insulated transverse partition wall.

FAQ

Q1. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance payment.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your deposit payment. The specific delivery time depends
on the items and the quantity of your order.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
