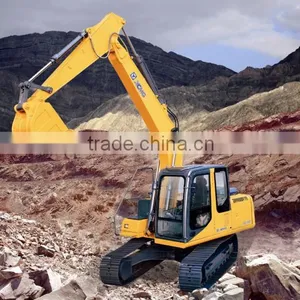

XCMG XE150D Crawler Excavator

Name: XCMG XE150D Crawler Excavator
Brand: XCMG
SKU: 101672249
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

XCMG

Model Number:

XE150D

Condition:

New

Jiangsu Sinma Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name XCMG

Model Number XE150D

Condition New

Moving Type Crawler Excavator

Operating Weight 14400kg

Bucket capacity 0.52-0.61m³

Maximum Digging Height 8641mm

Maximum Digging Depth 5538

Machine Weight 14400kg

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

XCMG excavator is widely used in construction sites,mining,road construction and etc.

Model		Unit	XE150D
Model		Unit	XE150D
Operating weight		kg	14400
Standard bucket capacity		m³	0.52-0.61
Engine	Engine Model	/	CUMMINS 4BTAA3.9
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	85.4/2200
	Max. torque/speed	N.m	447/1500
	Displacement	L	3.927
The main performance	Travel speed	km/h	5.2/3.4
	Swing speed	r/min	12.3
	Max. gradeability	/	≥35
	Ground pressure	kPa	38
	Max.Bucket digging force	kN	85
	Max.arm crowd force	kN	65
	Max.traction force	kN	135
Hydraulic system	Main pump	/	2 plunger pump
	Rate flow of main pump	L/min	2×120
	Max pressure of prime relief valve	MPa	31.4/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	25
	Max pressure of pilot system	MPa	3.9
Oil capacity	Fuel tank capacity	L	250
	Hydraulic tank capacity	L	130
	Engine lubrication	L	14
Overall dimensions	A Overall length	mm	7801
	B Overall width	mm	2590
	C Overall height	mm	2880
	D Overall width of upperstructure	mm	2512
	E Track length	mm	3660
	F Overall width of undercarriage	mm	2590
	G Crawer width	mm	600
	H Track length on ground	mm	2910
	I Crawer gauge	mm	1990
	J Clearance under counter weight	mm	964
	K Ground clearance	mm	478
	L Min.tail swing radius	mm	2325
Working range	A Max. digging height	mm	8641
	B Max. dumping height	mm	6181
	C Max. digging depth	mm	5538
	D 8inch horizonal digging depth	mm	5287
	E Max. vertical wall digging depth	mm	4727
	F Max. digging reach	mm	8296
	G Min. swing radius	mm	2335
	Angle of arm deflection	Degree	——
