XCMG XE470C Crawler Excavator

Name: XCMG XE470C Crawler Excavator
Brand: XCMG
SKU: 101672277
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

XCMG

Model Number:

XE470C

Condition:

New

Jiangsu Sinma Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name XCMG

Model Number XE470C

Condition New

Moving Type Crawler Excavator

Operating Weight 46100kg

Bucket capacity 1.9-2.3m³

Maximum Digging Height 10675mm

Maximum Digging Depth 7337

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

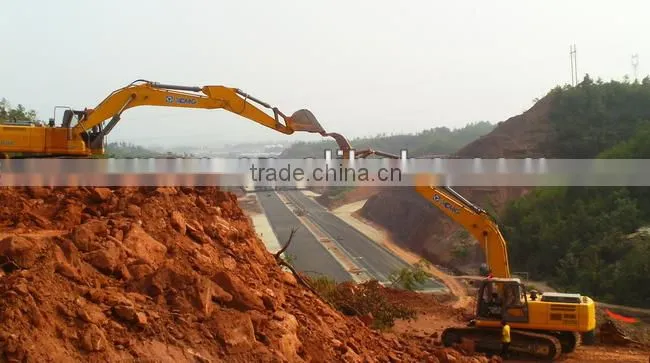

XCMG excavator is widely used in construction sites,mining,road construction and etc.

Model		Unit	XE470C
Operating weight		kg	46100
Standard bucket capacity		m³	1.9~2.3
Engine	Engine Model	/	Cummins QSM11
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	250/2000
	Max. torque/speed	N.m	1790/1400
	Displacement	L	11
The main performance	Travel speed	km/h	5.4/3.2
	Swing speed	r/min	9
	Max. gradeability	/	≥30
	Ground pressure	kPa	82.7
	Max.Bucket digging force	kN	271
	Max.arm crowd force	kN	231
	Max.traction force	kN	338
Hydraulic system	Main pump	/	2 Plunger pump
	Rate flow of main pump	L/min	2×360
	Max pressure of prime relief valve	MPa	31.4/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	28.4
	Max pressure of pilot system	MPa	3.9
Oil capacity	Fuel tank capacity	L	650
	Hydraulic tank capacity	L	360
	Engine lubrication	L	38
Overall dimensions	A Overall length	mm	12030
	B Overall width	mm	3580
	C Overall height	mm	3842
	D Overall width of upperstructure	mm	2995
	E Track length	mm	5220
	F Overall width of undercarriage	mm	3580
	G Crawer width	mm	600
	H Track length on ground	mm	4180
	I Crawer gauge	mm	2392/2890
	J Clearance under counter weight	mm	1360
	K Ground clearance	mm	703
	L Min.tail swing radius	mm	3665
Working range	A Max. digging height	mm	10675
	B Max. dumping height	mm	7409
	C Max. digging depth	mm	7337
	D 8inch horizonal digging depth	mm	7117
	E Max. vertical wall digging depth	mm	5225
	F Max. digging reach	mm	11631
	G Min. swing radius	mm	4909
	Angle of arm deflection	Degree
