Specifications
1.24-port Layer 3 managed POE ethernet switch2.IPTV Manipulated by MVR and IGMP Snooping v3
3.Vlan support

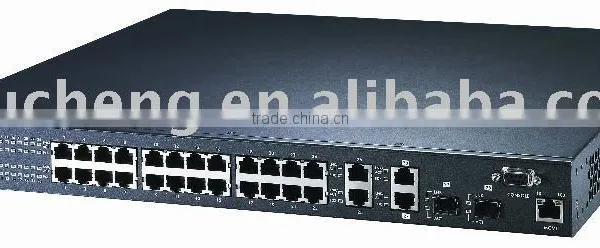

24-port L3 managed POE ethernet switch ES-3124PWR
Introduction
Ethernet switch ES-3124PWR consists of full-featured Fast Ethernet switches that provide comprehensive Layer-2 switching capabilities. With multi-layer security, intelligent QoS, redundant design, quick recovery and convenient network management features, this type is the best Edge switch for enterprises to build reliable, high-performance networks.
Key Benefits
Intelligent QoS for Multi-Service Optimization
Harnessing cost-cutting IP applications such as VoIP, IPTV and video conferencing in today’s modern business environment makes a big difference in market advantages. This type provides superior QoS capability to fully utilize the power of applications. Features like multilayer (L2/L3/L4) ACL, 8 priority queues, DSCP and WFQ scheduling algorithm allow you to maximize network bandwidth usage and to provide superior network service quality. With support to MVR and IGMP snooping features, this type enables successful IP TV multicasting transmission across multi-VLAN environments. In addition, Fast Leave eradicates streaming quality disturbance when user surf between different channels, while bandwidth control with granularity of 64 kbps brings effortless bandwidth administration to network operators.
Complete Multi-layer Protection
Ethernet switch ES-3124PWR comes with a 4-layer protection framework against network threats. Multilayer (L2/L3/L4) ACL enables policy-based protection by setting (L2/L3/L4) parameters such as MAC, VLAN, IP Protocol, TCP/UDP, and DSCP. The 4K VLAN range allows maximum administrative freedom on the network. For device access control, MAC freeze and MAC filtering can be
configured and the number of MAC addresses on a port can be limited as well. Besides user authentication, IEEE 802.1x provides central network access management and offers further access control on VLAN, bandwidth and traffic priority queues. The intrusion lock feature on this type is designed to prevent unauthorized access, and supports to VLAN Stacking can be applied for enterprise-class L2VPN applications. Ethernet switch ES-3124PWR allows you to implement stricter Layer-1 to Layer-4 security policies.
Convenient, Hassle-free Network Management
Exclusive iStacking™ technology allows you to manage a switch cluster of up to 24 switches through a single master Switch, and various network management options like Web, Telnet and the console port are supported. Network administrators can choose to manage the switch using the friendly Web-based configuration or the convenient text-based CLI (Command Line Interface). Since GS-3124PWR supports centralized SNMP-based management software, maintenance tasks can be performed remotely, and this also helps reducing operating cost and improving efficiency. For security, SSHv1/v2 and SSL are used to encrypt management sessions. With these sophisticated features, network administrators can set up powerful corporate networks and streamline their management efforts.
Specification
Operating Temperature 0°C ~ 45°C
Storage Temperature -25°C ~ 70°
Operating Humidity 10% ~ 90%, (non-condensing)
Features
Standard Compliance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-Tx Ethernet
IEEE 802.ab 1000 Base-T Ethernet
IEEE 802.3z
IEEE 802.3x flow control
IEEE 802.1D spanning tree protocol
IEEE 802.1w rapid spanning tree protocol
IEEE 802.1s multiple spanning tree protocol
IEEE 802.1p class of service, priority protocols
IEEE 802.1Q VLAN tagging
IEEE 802.1x port authentication
IEEE 802.3ad LACP aggregation
IEEE 802.1ad VLAN stacking
IEEE 802.3af power over Ethernet
Certification
UL 60950-1
CSA 60950-1
EN 60950-1
IEC 60950-1
EU RoHS compliant
