Original Quidway supplier HUAWEI compute node CH220 cloud computing blade server
|
2*E5-2600 V2 CPU 24*DDR3 DIMMs 2*2.5“ SSDs, SAS HDDs, or SATA HDDs |

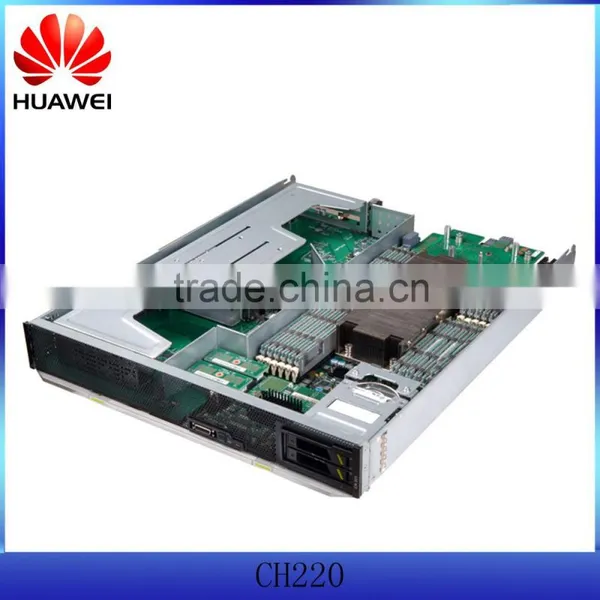

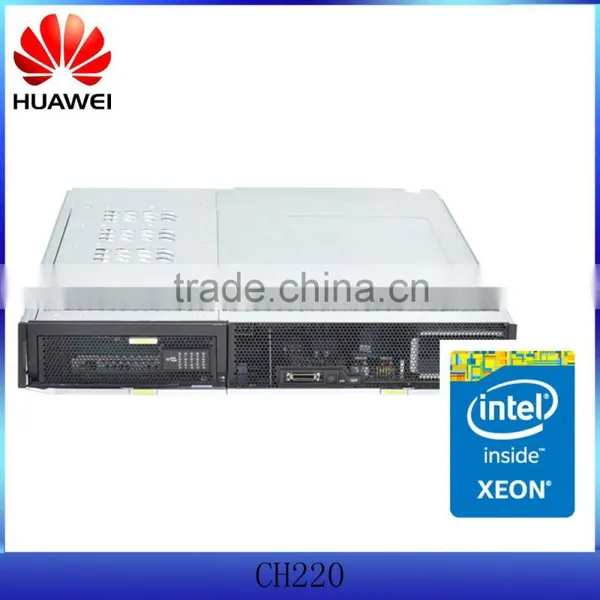

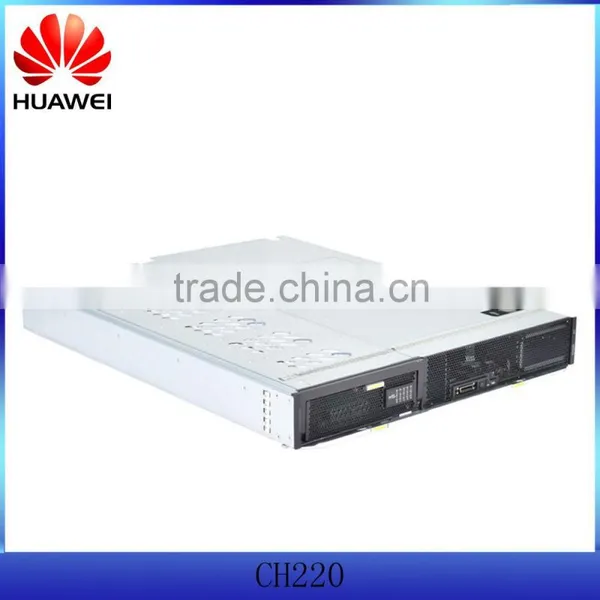

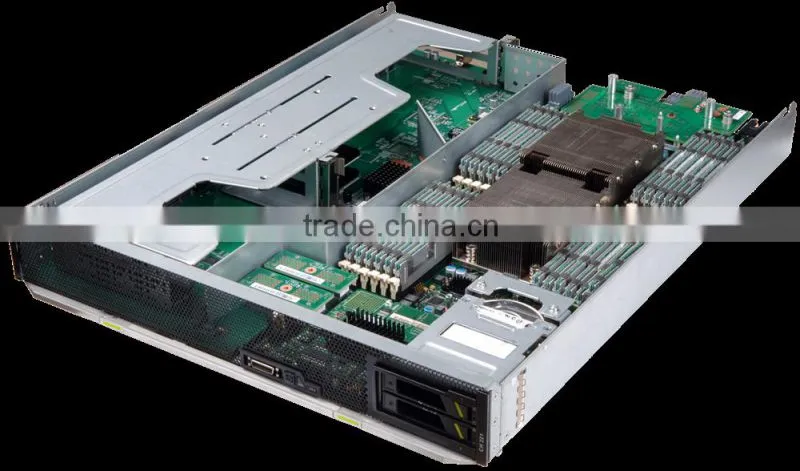

Original Quidway supplier HUAWEI compute node CH220 cloud computing blade server
Overview
This compute node is designed for application acceleration, VDI, virtualization, and databases. It also provides superior scalability and a huge memory capacity.
The node features Intel® Xeon® processors and supports up to 24 DIMM slots, 2 internal hard disks, and 4 standard PCI x8 full-height, half-length cards. It can be expanded for I/O acceleration components such as PCIe SSDs and GPUs.
Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
Features --- Outstanding expandability, easy to manage, and saves energy
- Intel® Xeon® E5-2600 (up to 130W) and E5-2600 V2 full series processors deliver up to 2 x 12-core, 2.7 GHz computing power
- 24 DIMMs apply mainstream granules and double the memory capacity up to 1.5 TB DDR3, providing the highest cost-efficiency for large-memory applications
-
Provides 4 PCIe* x8 full-height half-length slots for installing 4 GPUs or PCIe SSDs, providing the best possible PCIe expansion capability on a single compute node
*Card quantity is determined by card’s physical size and signal bandwidth - Reduces O&M costs by supporting remote deployment and fault location technologies such as SOL, KVM-over-IP, virtual DVD-ROM drive, WebUI, and IPMI 2.0-compliance
- Efficient, secure power consumption analysis and control capabilities include power-off mode, and Intel® NM 3.0 compliance
Original Quidway supplier HUAWEI compute node CH220 cloud computing blade server

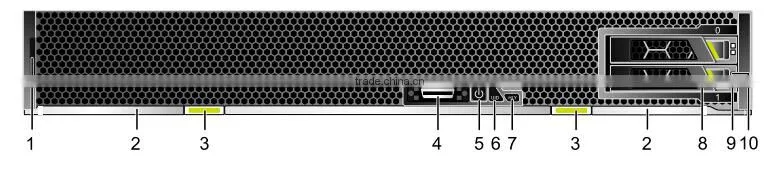

Front panel of a CH220
| 1 | Customization label | 2 | Ejector lever |
| 3 | Spring | 4 | High-density port |
| 5 | Power button/indicator | 6 | UID button/indicator |
| 7 | HLY indicator | 8 | Hard disk ejector lever |
| 9 | Hard disk active indicator | 10 | Hard disk fault indicator |

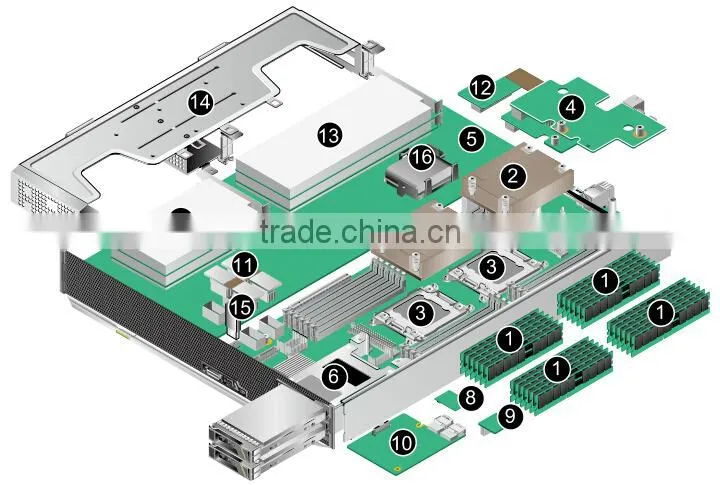

Components of the CH220
| 1 | DIMM | 2 | Heat sink |
| 3 | CPU | 4 | Mezz module |
| 5 | Mainboard | 6 | Hard disk tray |
| 7 | Hard disk | 8 | (Optional) USB flash Card |
| 9 | (Optional) TPM | 10 | RAID controller card |
| 11 | PCIe converter A | 12 | PCIe converter B |
| 13 | PCIe card | 14 | PCIe card tray |
| 15 | (Optional) USB 2.0 | 16 | iBBU |
Original Quidway supplier HUAWEI compute node CH220 cloud computing blade server
| Item | Specifications |
| Physical Specifications | |
| Dimensions (H x W x D) | 60.46 mm × 423 mm × 537.2 mm (2.4 in. x 16.65 in. x 21.14 in.) |
| Color |
Front panel: black Cover: silver white |
| Weight | Full configuration with 2 hard disks: 13.0 kg |
| Environmental Specifications | |
| Temperature |
Operating temperature: 5°C to 40°C (41°F to 104°F) Storage temperature: -40°C to +65°C (-40°F to +149°F) |
| Temperature change rate | 15°C/h (27°F/h) |
| Humidity |
Operating humidity: 5% RH to 85% RH (noncondensing) Storage humidity: 5% RH to 95% RH (noncondensing) |
| Altitude |
900 m (2952.72 ft) at 40°C (104°F) When the device is used in an altitude of 900 m to 3000 m, the operating temperature decreases by 1°C (1.8°F) as the altitude increases by 300 m (984.24 ft). |
| Technical Specifications | |
| Form Factor | Full-width 2-socket compute node |
| Number of processors | 1 or 2 |
| Processor Model | Intel® Xeon® E5-2600 and E5-2600 v2 series |
| Number of DIMMs | 24 DDR3 DIMMs, providing a maximum memory capacity of 1.5 TB |
| Number of Hard Disks | 2 x 2.5-inch SAS/SATA HDDs or SSDs |
| RAID Support | RAID 0 and 1 |
| PCIe Expansion |
2 PCIe x 16 Mezz modules (Note: One module has been occupied.) 4 standard PCIe x8 full-height, half-length cards |
| OS Support |
Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Citrix XenServer VMware |
| Power | |
| Rated input voltage | 12 V DC |
| Maximum power consumption | 777 W |
