Original Quidway supplier Huawei CH221 2U cloud server with 2 processors
|
2*E5-2600 V2 CPU 24*DDR3 DIMMs 2*2.5“ SSDs, SAS HDDs, or SATA HDDs |
Original Quidway supplier Huawei CH221 2U cloud server with 2 processors
Overview
Graphics processing for applications such as oil exploration, animation rendering, scientific computing, and seismic processing requires this high-performance node. It also provides superior scalability and an outstanding memory capacity.
It forms part of the CH100 and CH200 families of compute nodes, which are fully compatible with Huawei’s E9000 Blade Server.
This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power.
Carrier-class design, manufacturing, and components ensure high quality.
Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
Features --- Huawei’s CH221 I/O Expansion Compute Node provides high-performance graphics processing, scalability, and cost-effective large-memory capability
- Intel® Xeon® Processor E5-2600 and E5-2600 V2 series provide up to two 12-core, 2.7 GHz high-performance processors per node
- 24 DDR4 DIMMs — at 1.5 times the usual height — apply mainstream granules and double memory capacity up to 1.5 TB, providing the highest cost-efficiency for large-memory applications
- Reduces O&M costs with remote deployment and fault location technologies such as SOL, KVM over IP, virtual DVD-ROM drive, WebUI, and IPMI 2.0-compliance
- Nodes include efficient, secure power consumption analysis and control capabilities, including power-off mode, and Intel® NM 2.0 compliance
Original Quidway supplier Huawei CH221 2U cloud server with 2 processors

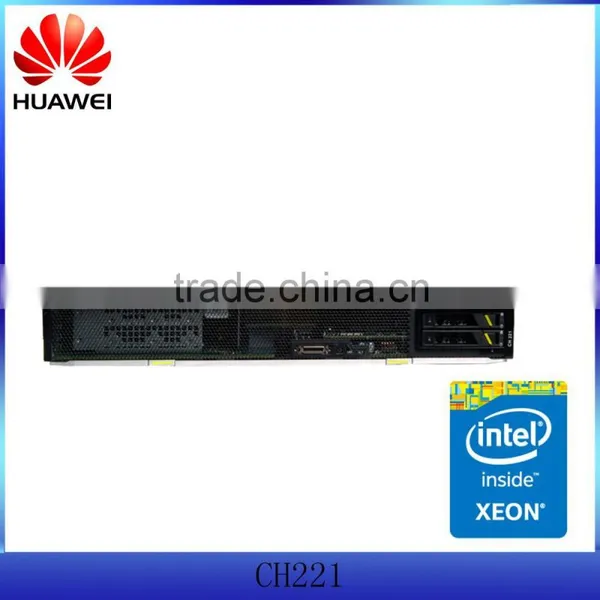

Front panel of a CH221
| 1 | Customization label | 2 | Ejector lever |
| 3 | Spring | 4 | High-density port |
| 5 | Power button/indicator | 6 | UID button/indicator |
| 7 | HLY indicator | 8 | Hard disk ejector lever |
| 9 | Hard disk active indicator | 10 | Hard disk fault indicator |

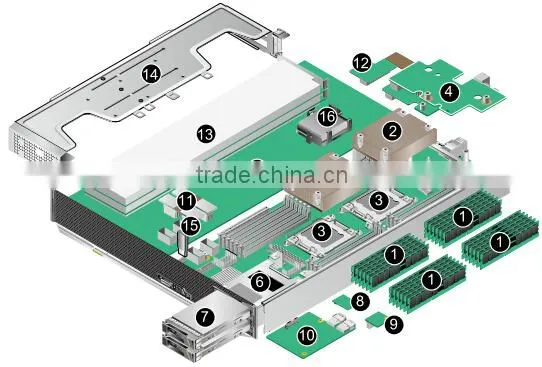

Components of the CH221
| 1 | DIMM | 2 | Heat sink |
| 3 | CPU | 4 | Mezz module |
| 5 | Mainboard | 6 | Hard disk tray |
| 7 | Hard disk | 8 | (Optional) USB flash Card |
| 9 | (Optional) TPM | 10 | RAID controller card |
| 11 | PCIe converter A | 12 | PCIe converter B |
| 13 | GPU card | 14 | PCIe card tray |
| 15 | (Optional) USB 2.0 | 16 | iBBU |
Original Quidway supplier Huawei CH221 2U cloud server with 2 processors
| Item | Specifications |
| Physical Specifications | |
| Dimensions (H x W x D) | 60.46 mm × 423 mm × 537.2 mm (2.4 in. x 16.65 in. x 21.14 in.) |
| Color |
Front panel: black Cover: silver white |
| Weight | Full configuration with 2 hard disks: 13.0 kg |
| Environmental Specifications | |
| Temperature |
Operating temperature: 5°C to 40°C (41°F to 104°F) Storage temperature: -40°C to +65°C (-40°F to +149°F) |
| Temperature change rate | 15°C/h (27°F/h) |
| Humidity |
Operating humidity: 5% RH to 85% RH (noncondensing) Storage humidity: 5% RH to 95% RH (noncondensing) |
| Altitude |
900 m (2952.72 ft) at 40°C (104°F) When the device is used in an altitude of 900 m to 3000 m, the operating temperature decreases by 1°C (1.8°F) as the altitude increases by 300 m (984.24 ft). |
| Technical Specifications | |
| Form Factor | Full-width 2-socket compute node |
| Number of processors | 1 or 2 |
| Processor Model | Intel® Xeon® E5-2600 and E5-2600 v2 series |
| Number of DIMMs | 24 DDR3 DIMMs, providing a maximum memory capacity of 1.5 TB |
| Number of Hard Disks | 2 x 2.5-inch SAS/SATA HDDs or SSDs |
| RAID Support | RAID 0 and 1 |
| PCIe Expansion |
2 PCIe x 16 Mezz modules (Note: One module has been occupied) 2 standard PCIe x 16 full-height full-length cards |
| OS Support |
Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Citrix XenServer VMware |
| Power | |
| Rated input voltage | 12 V DC |
| Maximum power consumption | 777 W |
Trade Info
Trade terms: FOB,CIF,CFR,etc
Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
Payment Terms: T/T in advance
MOQ:1 pcs
FOB Price:US $1 - 1,000 / Piece
Port: Shanghai
Lead time: Within 5 working days after receiving payment.
Shipment: Express, Air, Sea
Supply capability: 200 Piece/Pieces per Week
Sample availability: Yes( not free)
Package information: carton/wooden package
