Original Quidway supplier HUAWEI CH140 2U cloud server with 2 compute nodes
| 2*2*E5-2600 V2 CPU 2*8*DDR3 DIMMs 2*1*2.5“ SSDs, SAS HDDs, or SATA HDDs |
Original Quidway supplier HUAWEI CH140 2U cloud server with 2 compute nodes
Overview
Combines ultra-high-density computing with a large memory. It is optimized for enterprise service applications such as virtualization, cloud computing, and HPC. It’s powered by Intel® Xeon® processors.
This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
Features --- Combines ultra-high computing density and large memory capacity for enterprise service applications
- Intel® Xeon® Processor E5-2600 and E5-2600 v2 family contains up to four 12-core, 2.7 GHz processors to power each compute node; two independent 2-socket compute nodes available
- Eight DIMM slots on a 2-socket compute node support a DDR3 memory capacity of up to 512 GB on a 2-socket compute node
- Remote deployment and fault location technologies such as SOL, KVM over IP, virtual DVD-ROM drive, WebUI, and IPMI 2.0 compliance reduce O&M costs
- Nodes include efficient, secure power consumption analysis and control capabilities, including intelligent and secure power-off mode, and Intel® NM 2.0 compliance
Original Quidway supplier HUAWEI CH140 2U cloud server with 2 compute nodes

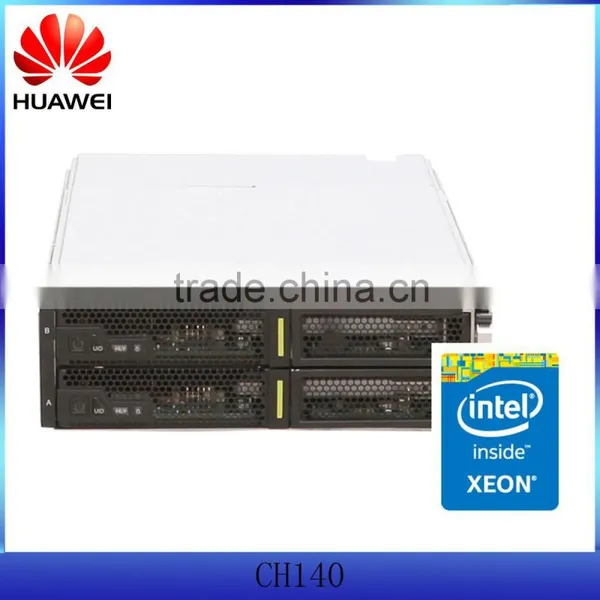

Front panel of a CH140
| 1 | Customization label | 2 | Power button/indicator |
| 3 | UID button/indicator | 4 | Health indicator |
| 5 | Hard disk indicator | 6 | Spring |
| 7 | Ejector lever (child compute node) | 8 | Child compute node A |
| 9 | Child compute node B | 10 | Ejector leve |
| 11 | Ejector lever extension bar | 12 | Release button |

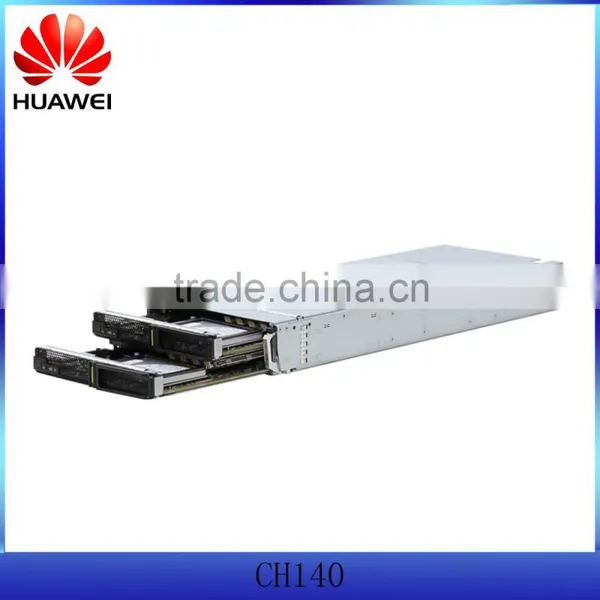

Components of the CH140
| 1 | Child compute node A | 2 | Child compute node B |
| 3 | Mezz card | 4 | Connection board |

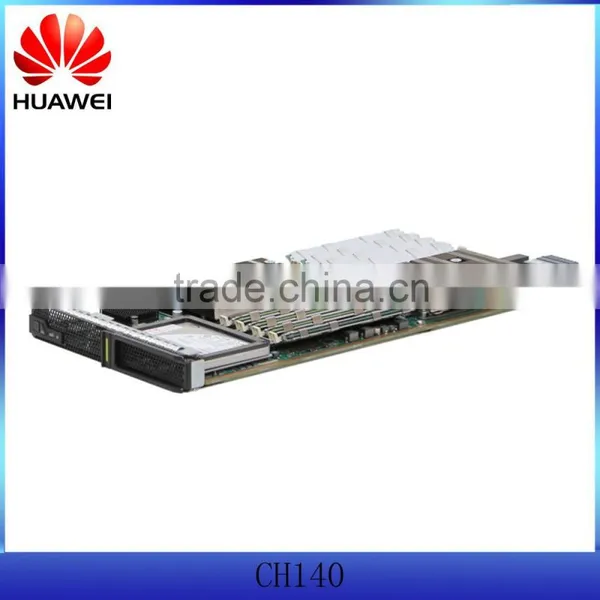

Components of a child compute node
| 1 | Hard disk | 2 | Hard disk tray |
| 3 | (Optional) Trusted Platform Module (TPM) | 4 | (Optional) Micro SD card |
| 5 | Dual inline-memory module (DIMM) | 6 | Heat sink |
| 7 | CPU | 8 | Main board |
Original Quidway supplier HUAWEI CH140 2U cloud server with 2 compute nodes
| Item | Specifications |
| Physical Specifications | |
| Dimensions (H x W x D) | 60.46 mm × 210 mm × 537.2 mm (2.4 in. x 8.26 in. x 21.14 in.) |
| Color | Front panel: black Cover: silver white |
| Weight | Compute node net weight: 10.7 kg (23.59 lb) |
| Environmental Specifications | |
| Temperature | Operating temperature: 5°C to 40°C (41°F to 104°F) Storage temperature: -40°C to +65°C (-40°F to +149°F) |
| Temperature change rate | 15°C/h (27°F/h) |
| Humidity | Operating humidity: 5% RH to 85% RH (noncondensing) Storage humidity: 5% RH to 95% RH (noncondensing) |
| Altitude | 900 m (2952.72 ft) at 40°C (104°F) When the device is used in an altitude of 900 m to 3000 m, the operating temperature decreases by 1°C (1.8°F) as the altitude increases by 300 m (984.24 ft). |
| Technical Specifications | |
| Form Factor | Two 2-socket twin compute nodes in a half-width slot |
| Number of processors | 1 or 2 in each 2-socket compute node |
| Processor Model | Intel® Xeon® E5-2600 and E5-2600 v2 series |
| Number of DIMMs | 8 DDR3 DIMMs for each 2-socket compute node |
| Number of Hard Disks | One 2.5-inch SSD/SAS/SATA for each 2-socket compute node |
| RAID Support | N/A |
| PCIe Expansion | 2 twin nodes share 2 PCIe x 8 Mezz modules |
| OS Support | Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Citrix XenServer VMware |
| Power | |
| Rated input voltage | 12 V DC |
| Maximum power consumption | 783 W |
Trade Info
Trade terms: FOB,CIF,CFR,etc
Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
Payment Terms: T/T in advance
MOQ:1 pcs
FOB Price:US $1 - 1,000 / Piece
Port: Shanghai
Lead time: Within 5 working days after receiving payment.
Shipment: Express, Air, Sea
Supply capability: 200 Piece/Pieces per Week
Sample availability: Yes( not free)
Package information: carton/wooden package
