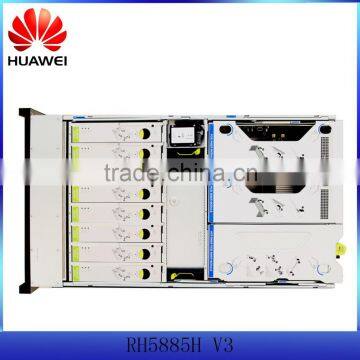

Quidway Supplier HUAWEI Dual System Mode Rack Server RH5885H V3 photo-3

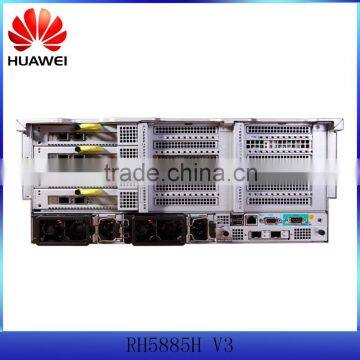

Quidway Supplier HUAWEI Dual System Mode Rack Server RH5885H V3 photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Rack
Max Memory Capacity:
Other, 768GB
Contact Supplier Request Quote Chat Now
Shanghai Chu Cheng Information Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Rack
Max Memory Capacity Other, 768GB
Max Processors 2
Processor Main Frequency 2.5GHz
Processor Type Intel Xeon E5-2600 or E5-2600V2 series
Brand Name HUAWEI (Quidway)
Model Number RH5885H V3
Place of Origin China



  HUAWEI dual system mode rack server RH5885H V3



Processors

Intel® Xeon® E7-4800 v2 or E7-8800 v2 processors

Memory

96 DDR3 RDIMMs

Internal Storage

8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs



Product Description

HUAWEI dual system mode rack server RH5885H V3

New-generation 4U four-socket rack server supports Intel® Xeon® E7 v2 series processors with up to 60 cores and 6 TB memory capacity, boosting performance. Ideal for mission-critical applications such as databases, Enterprise Resource Planning (ERP), Business Intelligence (BI), Big Data, and virtualization.

53 RAS features provide memory mirroring, memory sparing, and Predictive Failure Analysis (PFA) for enhanced stability. Modular design and fault diagnosis LCD touch panel provide simple, tool-free maintenance.

Get high reliability and better performance with Huawei’s RH5885H V3 rack server.

Huawei server with Intel® Xeon® processor.

Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.



Appearance

HUAWEI dual system mode rack server RH5885H V3

Front panel

RH5885H V3 front panel

Quidway supplier HUAWEI dual system mode rack server RH5885H V3

1

Fan module 1

2

Fan module 2

3

Fan module 3

4

Fan module 4

5

Fan module 5

6

Network port link status indicator

7

Health indicator

8

UID button/indicator

9

Power button/indicator

10

Hard disk fault indicator

11

Hard disk active indicator

12

Hard disk

13

DVD-ROM

14

LCD

15

VGA port

16

USB port 2

17

USB port 1

–

–



Rear panel

 RH5885H V3 rear panel

Quidway supplier HUAWEI dual system mode rack server RH5885H V3

1

PCIe card status indicator (hot-swappable PCIe card)

2

PCIe card power indicator (hot-swappable PCIe card)

3

PCIe card hot swap button (hot-swappable PCIe card)

4

Standard PCIe riser card 1

5

LOM NIC

6

UID indicator

7

Serial port

8

VGA port

9

iMana 200 management network port

10

USB port

11

Standard PCIe riser card 2

12

PSU 2

13

PSU indicator

14

PSU 1

15

Hot-swappable PCIe riser card

-

-





Specification

HUAWEI dual system mode rack server RH5885H V3

Technical Specification

Category

Item

Specifications

Mechanical specifications

Chassis dimensions (H x W x D)

175 mm x 447 mm x 790 mm (6.89 in. x 17.60 in. x 31.10 in.)

Installation space

The server fits into a universal rack complying with the IEC 297 standard.

  • Rack width: 19 in.
  • Rack depth: > 1000 mm (39.37 in.)
Guide rail installation requirements are as follows:
  • L-shaped guide rail: applies only to Huawei cabinets.
  • Adjustable guide rail: The distance between the front rear mounting bars is 550 mm to 860 mm.
  • Holding rail: The distance between the front rear mounting bars is 610 mm to 914 mm.

Weight

Net weight: 62 kg (136.69 lb)

Packaging material: 3.6 kg (7.94 lb)

Environmental specifications

Temperature
  • Operating temperature: 5°C to 40°C (41°F to 104°F)
  • Storage temperature: -40°C to +65°C (-40°F to +149°F)
NOTE:
The maximum operating temperature is 35°C (95°F) if a SSD card or a GPU card is configured.

Humidity
  • Operating humidity: 10% to 90% RH (non-condensing)
  • Storage humidity: 5% to 95% RH (non-condensing)

Altitude

≤ 3000 m (9842.40 ft). When the altitude is higher than 900 m (2952.72 ft), the operating temperature decreases by 1°C (1.8°F) per 300 m (984.24 ft).

Acoustic Noise
The data listed in the following is the declared A-weighted sound power levels (LWAd) and declared average bystander position A-weighted sound pressure levels (LpAm) when the server is operating in a 23°C (73.4°F) ambient environment. Noise emissions are measured in accordance with ISO 7999 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
  • Idle:
    • LWAd: 7.1Bels
    • LpAm: 58.8dBA
  • Operating:
    • LWAd: 7.1Bels
    • LpAm: 58.8dBA
NOTE:
The actual sound levels generated during server operating vary depending on the server configuration, load, and ambient temperature.

PSU input specifications

Input voltage

Two PSUs mode:

  • 2500 W DC PSU: –48 V DC to –60 V DC
  • 2000 W AC PSU:
    • 90 V AC to 264 V AC, 50 Hz/60 Hz
    • 192 V DC to 288 V DC
  • 3000 W AC PSU:
    • 90 V AC to 264 V AC, 50 Hz/60 Hz
    • 192 V DC to 288 V DC

Four PSUs mode:

800 W AC PSU:
  • 90V AC to 264V AC, 50 Hz/6 0Hz
  • 192V DC to 288V DC
NOTE:

The recommended current specifications for the external power circuit breaker connected to the RH5885H V3are as follows:

  • AC: 32 A
  • DC: 63 A
  • 380 V HV DC: 32 A

Input current
  • DC PSU: 63 A
  • AC PSU: 10 A or 16 A
  • HTDC PSU: 10 A or 16 A
NOTE:
  • The 2000 W PSU uses the internal fuse of 25 A.
  • The 2500 W PSU uses the internal fuse of 50 A.
  • The 3000 W PSU uses the internal fuse of 25 A.
  • The 800 W PSU uses the internal fuse of 12.5 A.

Power specifications

Rated power

The RH5885H V3 supports two PSUs mode and four PSUs mode. The following lists the rated power for each type of PSU:

Two PSUs mode:

  • 2500 W DC PSU: 2500 W (input voltage: –48 V DC to –60 V DC)
  • 2000 W AC PSU:
    • 800 W (input voltage: 90 - 143 V AC)
    • 1800 W (input voltage: 180 - 242 V AC)
    • 2000 W (input voltage: 198 - 264 V AC)
    • 2000 W (input voltage: 192 - 288 V DC)
  • 3000 W AC PSU:
    • 1200 W (input voltage: 90 - 143 V AC)
    • 2500 W (input voltage: 180 - 242 V AC)
    • 3000 W (input voltage: 198 - 264 V AC)
    • 3000 W (input voltage: 192 - 288 V DC)

Four PSUs mode:

800 W AC PSU:

  • 600 W (input voltage: 90 - 130 V AC)
  • 800 W (input voltage: 180 - 264 V AC)
  • 800 W (input voltage: 192 - 288 V DC)
