Products Status Stock
Type Rack
Max Memory Capacity Other, 768GB
Max Processors 2
Processor Main Frequency 2.5GHz
Processor Type Intel Xeon E5-2600 or E5-2600V2 series
Brand Name HUAWEI (Quidway)
Model Number RH5885 V3
Place of Origin China



    HUAWEI 4U rack server RH5885 V3



Processors

Intel® Xeon® E7-4800 v2 or E7-8800 v2 processors

Memory

48 DDR3 RDIMMs

Internal Storage

8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs



Product Description

HUAWEI 4U rack server RH5885 V3

New-generation 4U 4-socket rack server with Intel® Xeon® E7 v2 processors that have up to 60 cores, boosting performance.

Flexible component configuration creates a cost-effective server for databases, Enterprise Resource Planning (ERP), Business Intelligence (BI), Big Data, and virtualization.

Fifty-three Remote Access Server (RAS) features provide memory mirroring, memory sparing, and Predictive Failure Analysis (PFA) for stability. Modular design and diagnosis panel enable simple, tool-free maintenance.

Flexibly expand your network and improve stability, reliability, and energy efficiency with Huawei’s RH5885 V3 rack server.



Appearance

HUAWEI 4U rack server RH5885 V3

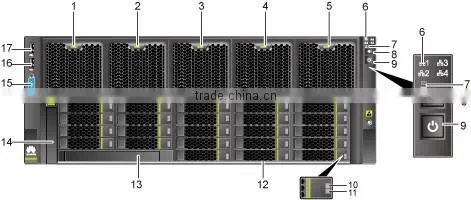

Front panel

RH5885 V3 front panel

Quidway supplier HUAWEI 4U rack server RH5885 V3

1

Fan module 1

2

Fan module 2

3

Fan module 3

4

Fan module 4

5

Fan module 5

6

Network port link status indicator

7

Health indicator

8

UID button/indicator

9

Power button/indicator

10

Hard disk fault indicator

11

Hard disk active indicator

12

Hard disk

13

DVD-ROM

14

LED diagnosis panel

15

VGA port

16

USB port 2

17

USB port 1

–

–

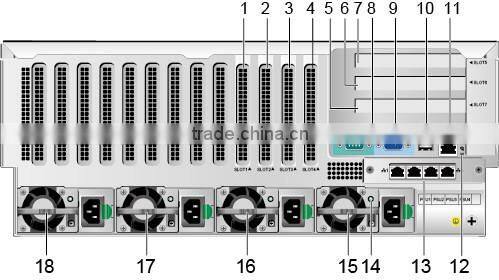

Rear panel

RH5885 V3 rear panel

Quidway supplier HUAWEI 4U rack server RH5885 V3

1

PCIe SLOT1

2

PCIe SLOT2

3

PCIe SLOT3

4

PCIe SLOT4

5

PCIe SLOT7

6

PCIe SLOT6

7

PCIe SLOT5

8

 Serial port

9

VGA port

10

USB port

11

iMana management network port

12

 UID indicator

13

 NIC

14

 PSU indicator

15

 PSU 4

16

PSU 3
17 PSU 2 18 PSU 1



PCIe slot description

PCIe Slot Slot Type PCIe Card Type Number of CPUs
SLOT1 PCIe x16 PCIe 3.0 x8 Processor 2
SLOT2 PCIe x8 PCIe 3.0 x8 Processor 2
SLOT3 PCIe x8 PCIe 3.0 x8 Processor 2
SLOT4 PCIe x8 PCIe 2.0 x4 PCH
SLOT5 PCIe x16 PCIe 3.0 x16 Processor 1
SLOT6 PCIe x8 PCIe 3.0 x4 Processor 2
SLOT7 PCIe x8 PCIe 3.0 x4 Processor 2

When configuring PCIe cards, observe the following rules:

  • The PCI slots are available only when the corresponding CPU is installed.
  • For a PCIe x16 card, SLOT5 is preferred to achieve the maximum bandwidth and optimal performance.
  • For a PCIe x8 card, SLOT1, SLOT2, and SLOT3 are preferred, followed by SLOT5.



Specification

HUAWEI 4U rack server RH5885 V3

Technical Specification

Category

Item

Specifications

Mechanical specifications

Chassis dimensions (H x W x D)

175 mm x 447 mm x 790 mm (6.89 in. x 17.60 in. x 31.10 in.)

Installation dimensions
The rack server can be installed in a common rack that complies with the IEC 297 standard:
  • Width: 19 inches
  • Depth: > 1000 mm (39.37 inches)
Guide rail installation requirements are as follows:
  • L-shaped guide rail: applies only to Huawei cabinets.
  • Adjustable guide rail: The distance between the front rear mounting bars is 550 mm to 860 mm.
  • Holding rail: The distance between the front rear mounting bars is 610 mm to 914 mm.

Weight

Net weight: 70 kg (157.32 lb)

Packaging material: 3.6 kg (7.94 lb)

Environmental specifications

Temperature
  • Operating temperature: 10°C to 40°C (50°F to 104°F)
  • Storage temperature: -40°C to +65°C (-40°F to +149°F)
NOTE:
The maximum operating temperature is 35°C (95°F) if a SSD card is configured.

Humidity
  • Operating humidity: 8% to 80% RH (non-condensing)
  • Storage humidity: 5% to 95% RH (non-condensing)

Altitude

≤ 3000 m (9842.40 ft). When the altitude is higher than 900 m (2952.72 ft), the operating temperature decreases by 1°C (1.8°F) per 300 m (984.24 ft).

Acoustic Noise
The data listed in the following is the declared A-weighted sound power levels (LWAd) and declared average bystander position A-weighted sound pressure levels (LpAm) when the server is operating in a 23°C (73.4°F) ambient environment. Noise emissions are measured in accordance with ISO 7999 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
  • Idle:
    • LWAd: 7.1Bels
    • LpAm: 58.8dBA
  • Operating:
    • LWAd: 7.1Bels
    • LpAm: 58.8dBA
NOTE:
The actual sound levels generated during server operating vary depending on the server configuration, load, and ambient temperature.

PSU input specifications

Input voltage
  • DC PSU: –48 V DC to –60 V DC
  • AC PSU:
    • AC: 100 V AC to 240 V AC
    • 240 V high-voltage (HV) DC PSUs: 240 V DC
    • 380 V HV DC PSUs: 260 V to 400 V DC
NOTE:

The recommended current specifications for the external power circuit breaker connected to the RH5885 V3 are as follows:

  • AC and DC: 32A
  • 380 V HV DC: 32 A
  • AC module LITEON 750W-AC (PS-2751-7H) supports the 240 V high tension directing current.
  • AC module LITEON 1200W-AC (PS-2122-3H) supports the 240 V high tension directing current.

Input current

 10A

PSU output specifications

Rated input voltage

12 V DC

Rated input current
  • 1200 W AC module: 100A
  • 750 W AC module: 62.5A
  • 800 W DC module: 65.6A

Power specifications

Rated power
The RH5885 V3 supports four PSUs. The following lists the rated power for each type of PSU:
  • 1200W AC PSU:
    • 800 W (input voltage: 100 V AC, 50 to 60 Hz)
    • 900 W (input voltage: 110 V AC to 127 V AC, 50 to 60 Hz)
    • 1200 W (input voltage: 200 V AC to 240 V AC, 50 to 60 Hz)
    • 1200W (input voltage: 240 V DC)
  • 750 W AC PSU:800 W DC PSU: 800 W (–48 V DC to –60 V DC)
    • 750 W (input voltage: 100 V AC to 240 V AC, 50 to 60 Hz)
    • 750 W (input voltage: 240 V DC)
