Professional Server supplier HUAWEI RH2288H V3 2U fusion storage system server
Processors |
One or two Intel® Xeon® E5-2600 v3 series processors |
Memory |
24 DDR4 RDIMMs/LRDIMMs |
Internal Storage |
Hard disk configurations:
each module provides two 2.5-inch SAS/SATA HDDs or SSDs, or two 3.5-inch SAS/SATA HDDs
Built-in flash memory:
|
Skype:live:michael.hu_14
HUAWEI 2U cloud computing server RH2288H V3 with GE ports
New-generation 2U, 2-socket rack server delivers high performance and large storage capacity, and scalability. Ideal for Internet, Big Data, cloud computing, High-Performance Computing (HPC), telecom services, and mission-critical applications.
Industry-leading RAID technologies and flexible storage ensure flexible resource expansion. Dynamic Energy Management Technology (DEMT), power capping, and other features cut energy consumption.
Black box function and independent Baseboard Management Controller (iBMC) simplify management and maintenance.
Meet today’s demands and prepare for the future with Huawei’s flexible, easy-to-manage RH2288H V3 rack server.
Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
HUAWEI 2U cloud computing server RH2288H V3 with GE ports
Front Panel

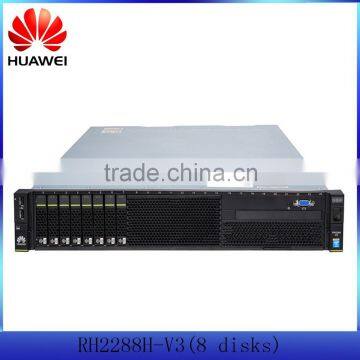

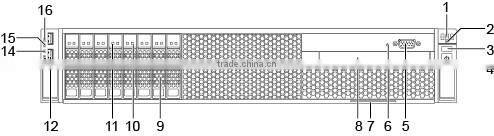

Front panel of the RH2288H V3 (with 8 hard disks)
| 1 | Fault diagnosis digital tube | 2 | Health indicator |
| 3 | UID button/indicator | 4 | Power button/indicator |
| 5 | VGA port | 6 | NMI button |
| 7 | Label (including ESN label) |
8 | Built-in DVD drive or touchable LCD diagnosis panel |
| 9 | Hard disk (numbered 0 to 7 from left to right) | 10 | Hard disk active indicator |
| 11 | Hard disk fault indicator | 12 | USB 2.0 port |
| 13 | Ethernet port indicator 4 | 14 | Ethernet port indicator 3 |
| 15 | Ethernet port indicator 2 | 16 | Ethernet port indicator 1 |

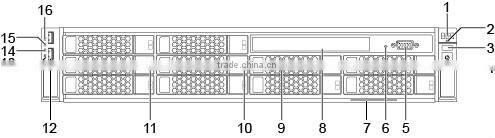

Front panel of the RH2288H V3 (with 10 hard disks)
| 1 | Fault diagnosis digital tube | 2 | Health indicator |
| 3 | UID button/indicator | 4 | Power button/indicator |
| 5 | VGA port | 6 | NMI button |
| 7 | Label (including ESN label) |
8 | Built-in DVD drive or touchable LCD diagnosis panel |
| 9 | Hard disk (numbered 0 to 9 from top to bottom and from left to right) | 10 | Hard disk active indicator |
| 11 | Hard disk fault indicator | 12 | USB 2.0 port |
| 13 | Ethernet port indicator 4 | 14 | Ethernet port indicator 3 |
| 15 | Ethernet port indicator 2 | 16 | Ethernet port indicator 1 |

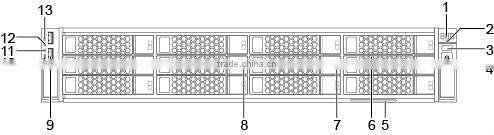

| 1 | Fault diagnosis digital tube | 2 | Health indicator |
| 3 | UID button/indicator | 4 | Power button/indicator |
| 5 | Label (including ESN label) |
6 | Hard disk (numbered 0 to 11 from top to bottom and from left to right) |
| 7 | Hard disk active indicator | 8 | Hard disk fault indicator |
| 9 | USB 2.0 port | 10 | Ethernet port indicator 4 |
| 11 | Ethernet port indicator 3 | 12 | Ethernet port indicator 2 |
| 13 | Ethernet port indicator 1 |

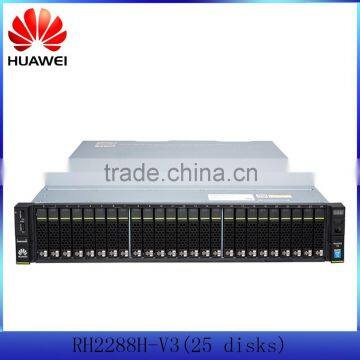

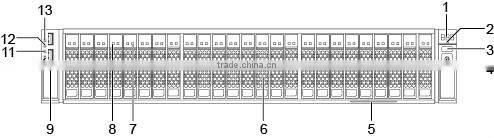

Front panel of the RH2288H V3 (with 25 hard disks)
| 1 | Fault diagnosis digital tube | 2 | Health indicator |
| 3 | UID button/indicator | 4 | Power button/indicator |
| 5 | Label (including ESN label) |
6 | Hard disk (numbered 0 to 24 from left to right) |
| 7 | Hard disk active indicator | 8 | Hard disk fault indicator |
| 9 | USB 2.0 port | 10 | Ethernet port indicator 4 |
| 11 | Ethernet port indicator 3 | 12 | Ethernet port indicator 2 |
| 13 | Ethernet port indicator 1 |
Rear Panel

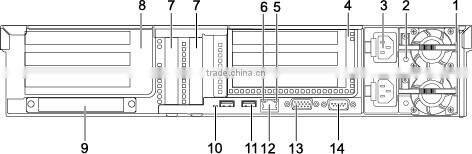

Rear panel of the RH2288H V3
| 1 | PSU | 2 | PSU indicator |
| 3 | Power socket for a PSU | 4 | I/O module 2 |
| 5 | Connection status indicator | 6 | Data transmission status indicator |
| 7 | Onboard PCIe slot | 8 | I/O module 1 |
| 9 | NIC | 10 | UID indicator |
| 11 | USB 3.0 port | 12 | Mgmt management network port |
| 13 | VGA port | 14 | Serial port |
MA5603T can
also be used
as DSLAM
