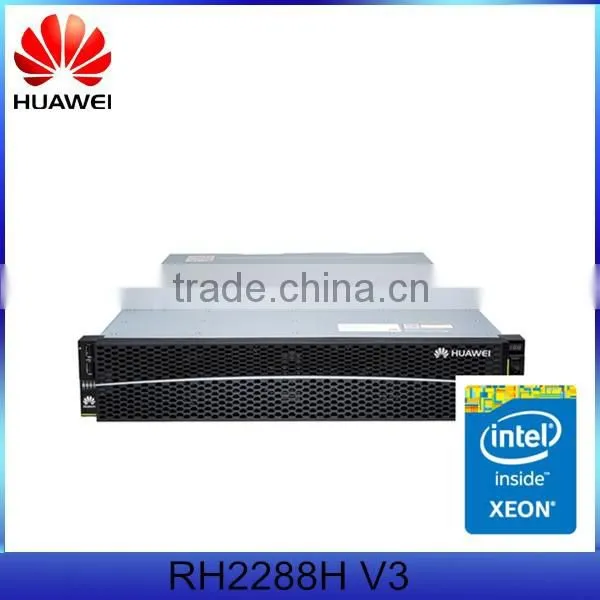

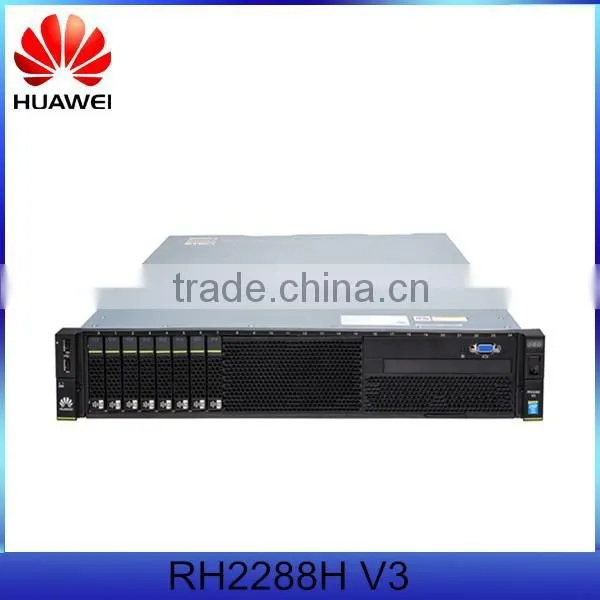

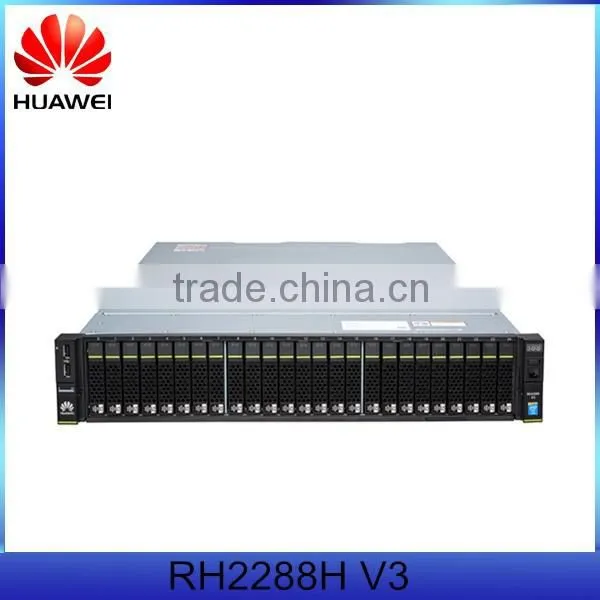

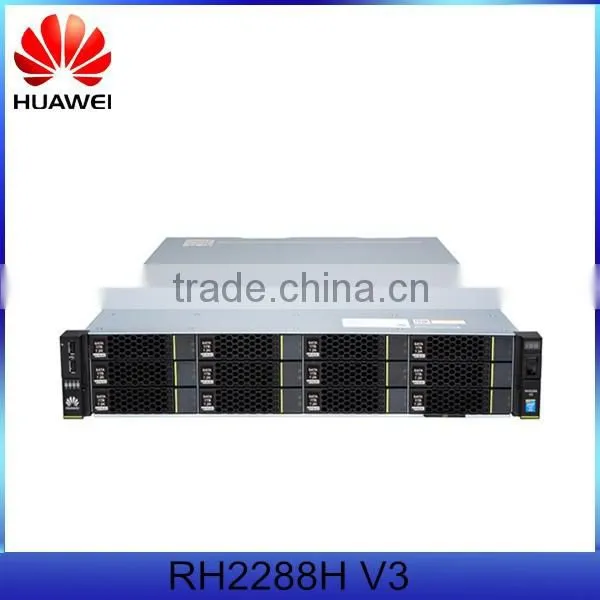

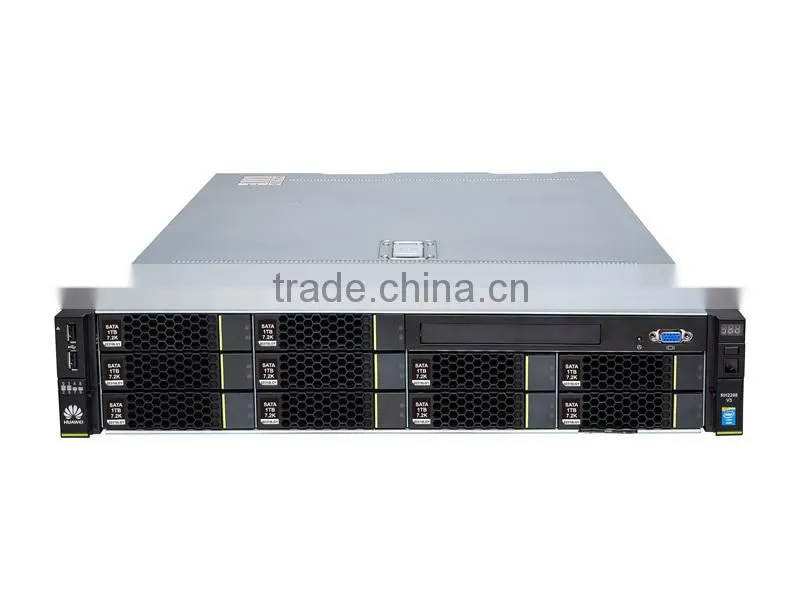

Low Cost FusionServer RH2288H V3 2U Huawei Server
New-generation 2U, 2-socket rack server delivers high performance and large storage capacity, and scalability. Ideal for Internet, Big Data, cloud computing, High-Performance Computing (HPC), telecom services, and mission-critical applications.
Industry-leading RAID technologies and flexible storage ensure flexible resource expansion. Dynamic Energy Management Technology (DEMT), power capping, and other features cut energy consumption.
Black box function and independent Baseboard Management Controller (iBMC) simplify management and maintenance.
Meet today’s demands and prepare for the future with Huawei’s flexible, easy-to-manage RH2288H V3 rack server.

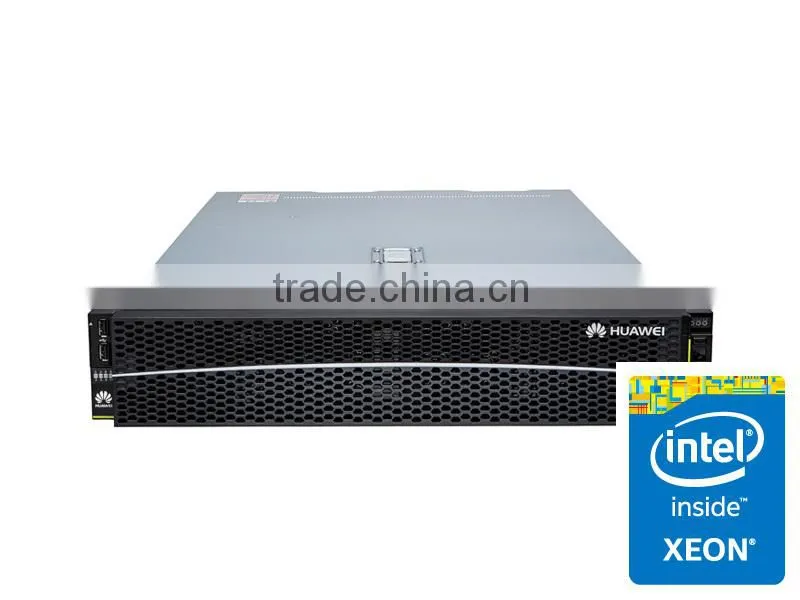

Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
The HUAWEI FusionServer RH2288H V3 (RH2288H V3 for short) is a new-generation 2U dual-socket rack server. It provides flexible resource expansion capabilities as well as high computing performance. It is an ideal choice for Internet, big data, cloud computing, highperformance computing (HPC), and enterprise key applications.
•Provides large local storage space to quickly respond to fast data increase
•Supports up to two high-performance processors to implement efficient computing.
•Ensures high energy efficiency by using intelligent fine-grained power control technologies.
•Provides a touchscreen management panel to facilitate management.
| RH2288H V3 | |
| Form factor | 2U rack server |
| Number of processors | 1 or 2 |
| Processor model | Intel®Xeon®E5-2600 v3 series processor |
| Number of memory slots | 24 slots for DDR4 RDIMMs or LRDIMMs |

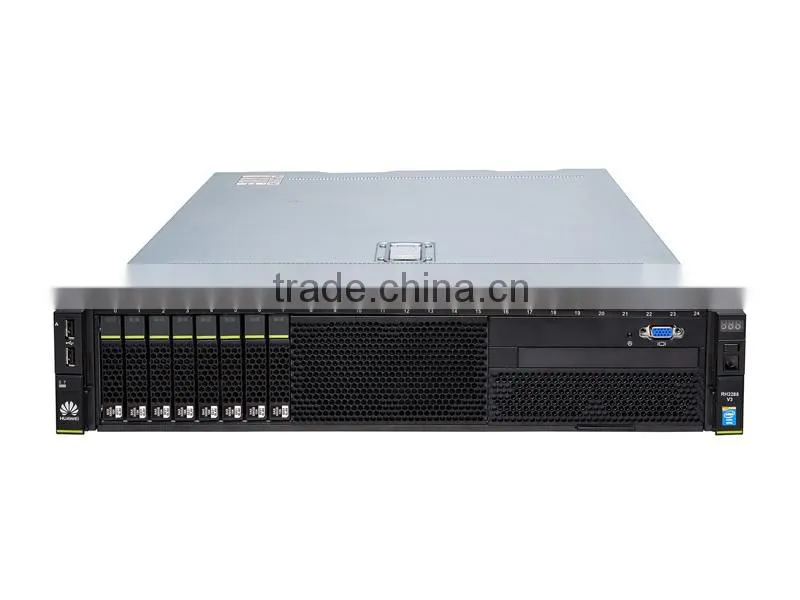

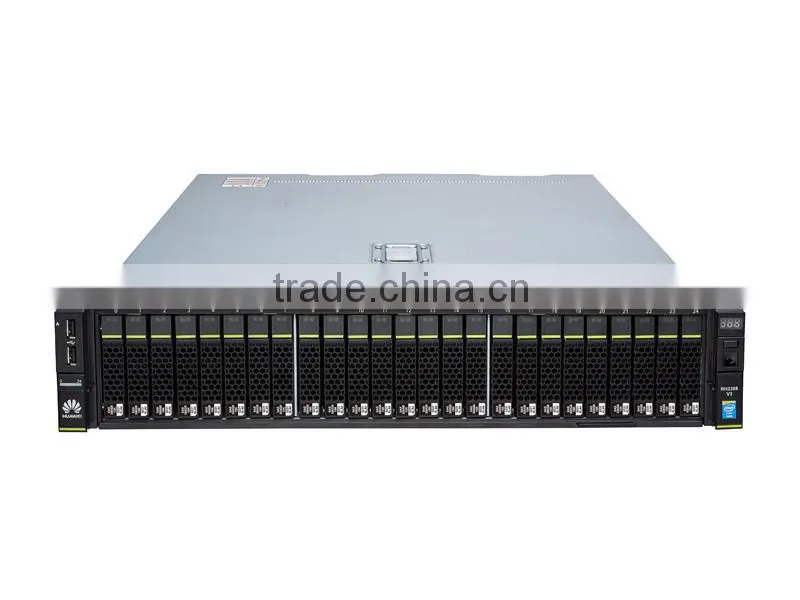

| Maximum local storage | Supports the following hard disk configurations: • Eight front 2.5-inch SSDs or SAS or SATA HDDs Supports built-in Flash: |
| RAID | Supports RAID 0, 1, 10, 5, 50, 6, and 60 Uses a supercapacitor to protect RAID cache data from power failures |
| Network ports | Supports the following network configurations: • Two GE electrical ports, supporting Network Controller Sideband Interface (NC-SI), WOL, and PXE |
| PCIe expansion | Supports a maximum of 9 PCIe slots |
| Fan | Hot-swappable fan modules in N+1 redundancy |
| Power supply | 2 hot-swappable power supplies in 1+1 redundancy |
| Management | The on-board iBMC module supports Intelligent Platform Management Interface (IPMI), SOL, KVM over IP, and virtual media, and provides a 1 Gbit/s RJ45 management network port supporting NC-SI. |
| Supported OSs | CentOS Citrix XenServer |
| Operating temperature | 5°C to 45°C (41°F to 113°F) |
| Certification | CE, UL, FCC, CCC, and RoHS |
| Installation suite | Guide rails Holding rails and cable management arm (optional) |

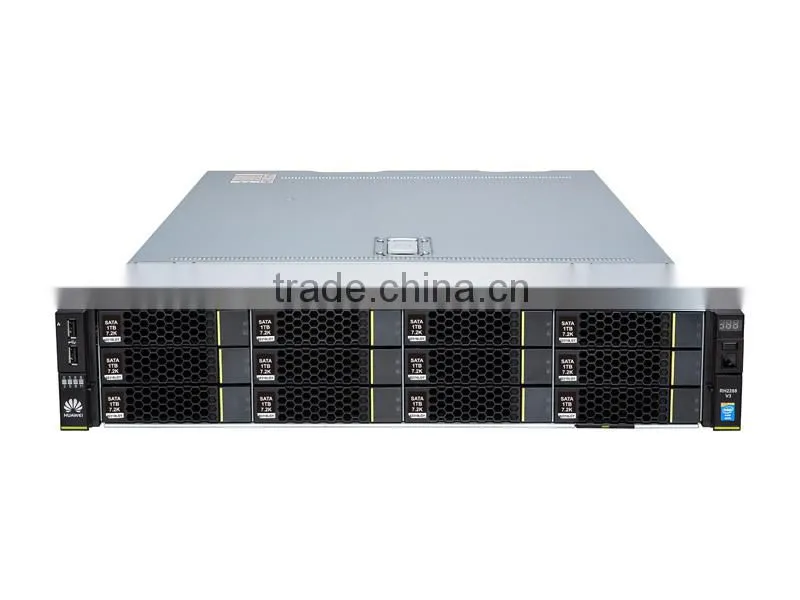

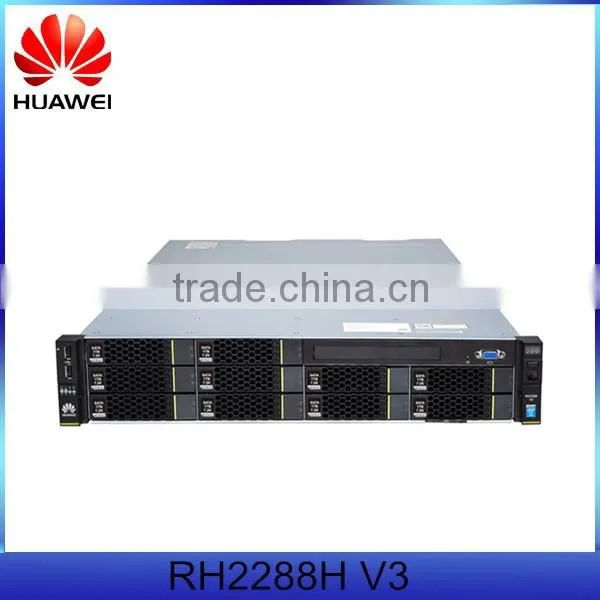

| Dimensions (W x D x H) | RH2288H V3 with 3.5-inch hard disks: 447 mm × 748 mm x 86.1 mm (17.60 in. x 29.45 in. x 3.39 in.) RH2288H V3 with 2.5-inch hard disks: 447 mm × 708 mm x 86.1 mm (17.60 in. x 27.84 in. x 3.39 in.) |
High performance allows rapid respond to business growth
1) Supports up to two Intel®Xeon® E5-2600 v3 processors. Each processor supports a maximum of 18 cores and provides two 9.6 GT/s QuickPath Interconnect (QPI) links between processors.
2) Supports up to twenty-four 2133 MHz DDR4 DIMMs to provide a maximum memory capacity of 1.5 TB.
3) Provides up to nine PCIe slots and two dual-slot high-performance GPUs, offering extraordinary floating-point arithmetic capability.
4) Provides I/O performance surpassing traditional hard disks when used with Huawei PCIe SSD cards.
Intelligent power control increases energy efficiency
1) Uses 80 Plus Platinum power supply units (PSUs), meeting Energy Star specifications.
2) Uses the dynamic energy management technology (DEMT) to adjust server operating status dynamically and limit the power consumption to an optimal level.
3) Uses power capping to allocate cooling and power supply resources on demand, and increase resource utilization and deployment density without affecting services.
4) Supports high-voltage DC power supplies, preventing conversion between AC and DC power supplies and minimizing the power loss in power conversion.
5) Uses proportion integration differentiation (PID) to control heat dissipation and speed adjustment policies, implements stepless speed regulation and on-demand allocation of heat dissipation resources, minimizing power consumption and noise.
Efficient management and maintenance
1) Provides a touchscreen liquid crystal display (LCD) to facilitate equipment operation and management.
2) Provides a data recorder, similar to a flight recorder, to facilitate fault locating when the server collapses.
3) Uses an independent iBMC module to implement Serial over LAN (SOL), remote KVM, and functions such as remote startup and shutdown of the server.
1.Trade terms: FOB,CIF,CFR,etc
2.Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
3.Payment Terms: T/T in advance
4.MOQ: 1 pcs
5.FOB Price:US $1 - 1,000 / Piece
6.Port: Shanghai
7.Lead time: Within 5 working days after receipt payment.
8.Shipment: Express, Air, Sea
9.Supply capability: 200 Piece/Pieces per Week
10.Sample availability: Yes( not free)
11.Package information: carton package with Huawei original package
We can provide detail documents and remote help for device installation and configuration.
Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days ,returned goods must keep original state and it’s accessories are complete.
