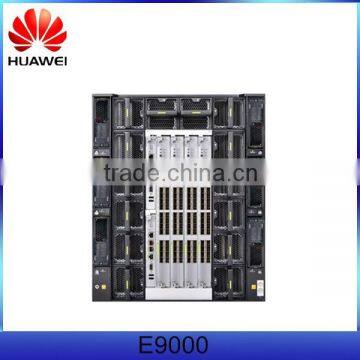

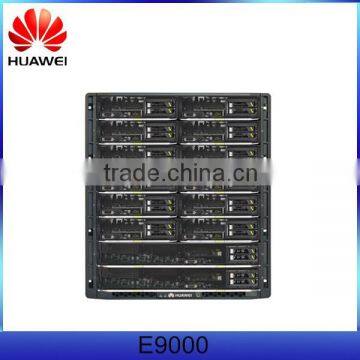

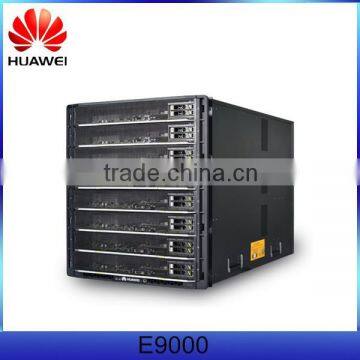

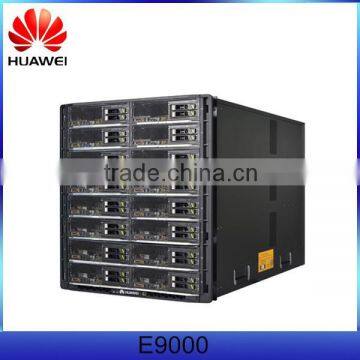

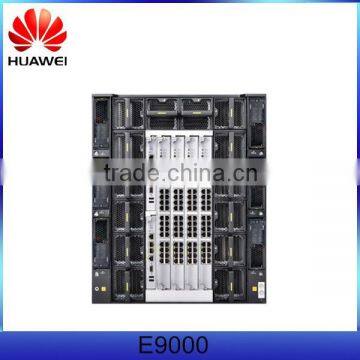

Huawei E9000 Huawei Server Chassis

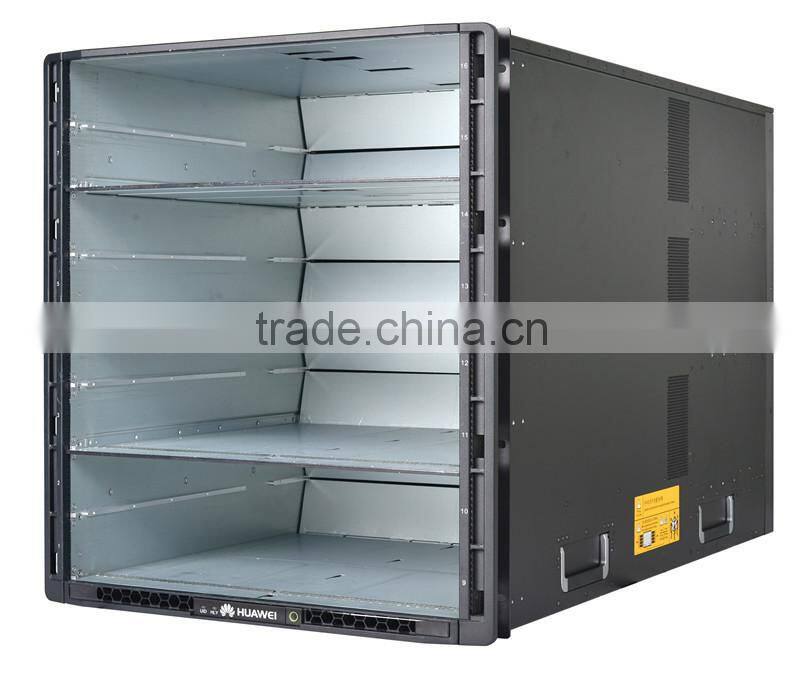

Provides 16 slots in a 12U chassis that includes redundant Power Supply Units (PSUs), heat-dissipation modules, management modules, and switch modules. This converged infrastructure platform features an optimized layout to make best use of the available space.
The Huawei E9000 chassis can be installed in a standard 19-inch rack at a depth of at least 1m. The chassis is available with AC or DC power setups to suit data center requirements.
Leverage Huawei’s deep experience in computing, storage, and networking to help reduce system deployment time from a few days to a few hours.
Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

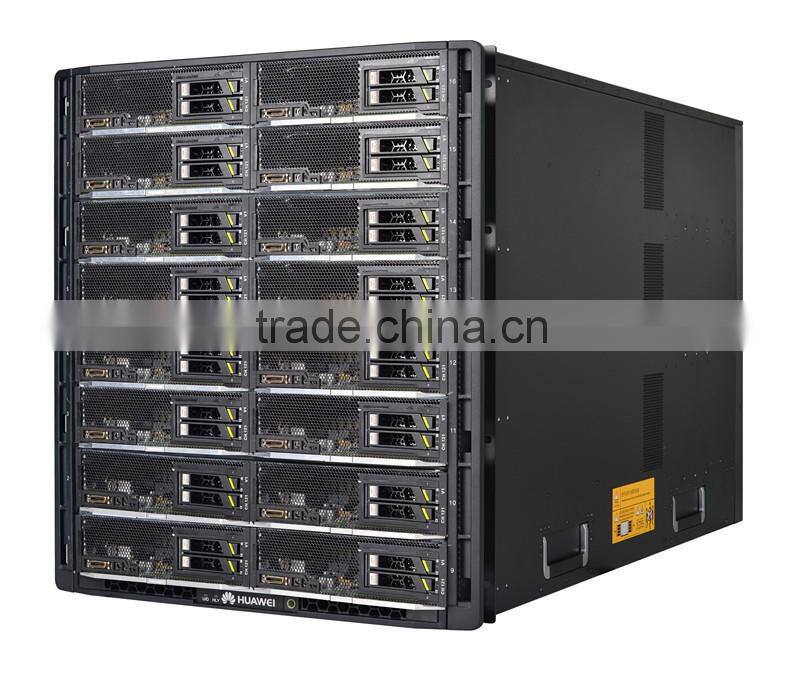

The E9000 is a new-generation blade server that integrates computing, storage, switching, and management subsystems to forma powerful converged infrastructure platform. The E9000 is an industry-leading hardware computing platform that improves competitiveness based on its availability, computing density, energy consumption, low emissions, midplane bandwidth, intelligent management and services, elastic configuration, flexible computing and storage expansion capabilities, low network latency, and acceleration functions.

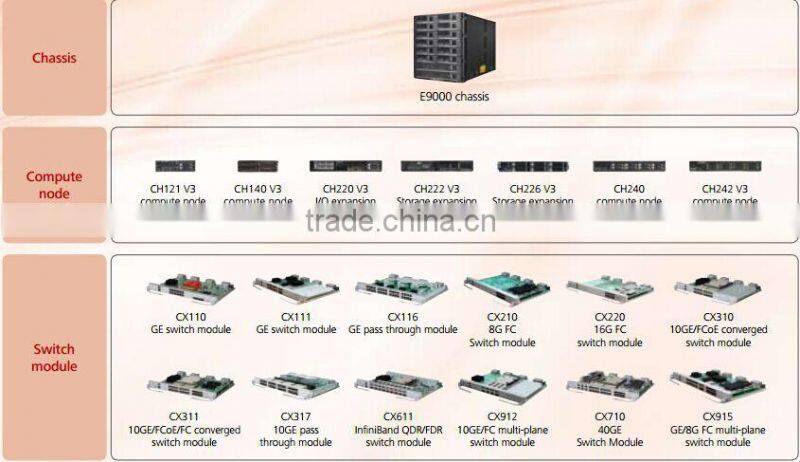

Form Factor |
12U |
Blade |
16 half-width slots or 8 full-width slots Supports flexible configurations of single-slot, dual-slot, full-width, and half-width nodes |
Switch Modules |
4 slots for Huawei CX series switch modules provide a midplane switching capability of 15.6 Tbit/s CX110 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink CX111 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink CX116 GE pass-through module: 32 x GE uplink, 32 x GE downlink CX210 8G FC switch module: 8 x 8G FC uplink, 16 x 8G FC downlink CX220 16G FC Switch Module: 8 x 16G FC uplink, 16 x 16G FC downlink CX310 10 GE switch module: 16 x 10 GE uplink, 32 x 10 GE downlink CX311 10 GE/FCoE converged switch module: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE downlink CX317 10 GE pass through module: 32 x 10 GE uplink, 32 x 10 GE downlink CX611 InfiniBand switch module (QDR 40 Gbit/s, FDR 56 Gbit/s): 18 x QDR/FDR uplink, 16 x QDR/FDR downlink CX710 40 GE switch module: 8 x 40 GE uplink, 16 x 40 GE downlink CX912 multi-plane switch module; supports FC ports: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE + 16 x 8G FC downlink CX915 multi-plane switch module: 4 x 10 GE + 12 x GE + 8 x 8G FC uplink, 32 x GE + 16 x 8G FC downlink |
PSU |
AC/DC PSU: maximum six 3,000W/2,000W AC or six 2,500W DC hot-swappable PSUs in N+N or N+M redundancy mode |
Fan Modules |
Provides 14 hot-swappable fan modules in N+1 redundancy mode |
Management |
|
Power Supply |
110V/220V AC or –48V DC |
|
Operating Temperature |
5°C to 40°C |
Dimensions |
Height: 530 mm (20.87 in.) Width: 442 mm (17.40 in.) Depth: 840 mm (33.07 in.) |
Highest computing density in a chassis
Supports Intel •®Xeon®E5, E5 v2, E5 v3, and E7 v2 series processors.
Supports two small 2-socket compute nodes in a half-width slot.
Supports large-capacity, cost-effective DIMMs at 1.5 times the usual height.
Best internal storage capability
Supports 2 x 2.5" hard disks on a half-width compute node.
Supports 8 x 2.5" hard disks on a full-width, 4-socket compute node.
Supports 15 x 2.5" hard disks on a full-width storage expansion compute node.
Best scalability
Supports free combinations of 2-socket and 4-socket compute nodes.
Supports standard PCIe card expansion on half-width compute nodes.
Supports 4 standard PCIe card expansion or 2 full-height full-length dual slots GPGPU cards on full-width compute nodes.
Supports 3 standard PCIe card expansion on a 4-socket compute node.
Highest switching and I/O capability
Supports a midplane capable of 15.6Tbit/s.
Provides 128 x 10GE ports on a chassis.
Supports 10GE/FCoE/FC/InfiniBand switching and evolution to 100GE/ InfiniBand EDR.
5.After-Sales Service
1) We can provide detail documents and remote help for device installation and configuration.
2) Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3) Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
1.Trade terms: FOB,CIF,CFR,etc
2.Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
3.Payment Terms: T/T in advance
4.MOQ: 1 pcs
5.FOB Price:US $1 - 1,000 / Piece
6.Port: Shanghai
7.Lead time: Within 5 working days after receipt payment.
8.Shipment: Express, Air, Sea
9.Supply capability: 200 Piece/Pieces per Week
10.Sample availability: Yes( not free)
11.Package information: carton package with Huawei original package
We can provide detail documents and remote help for device installation and configuration.
Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days ,returned goods must keep original state and it’s accessories are complete.
