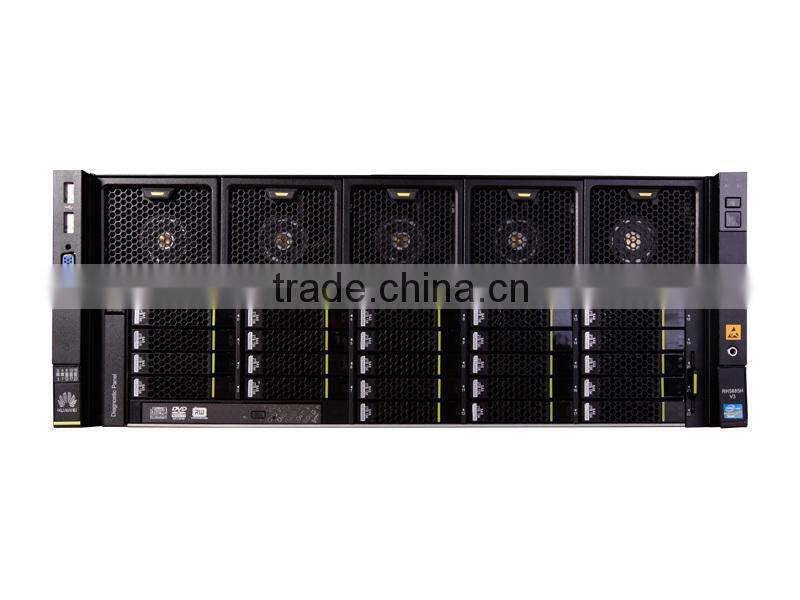

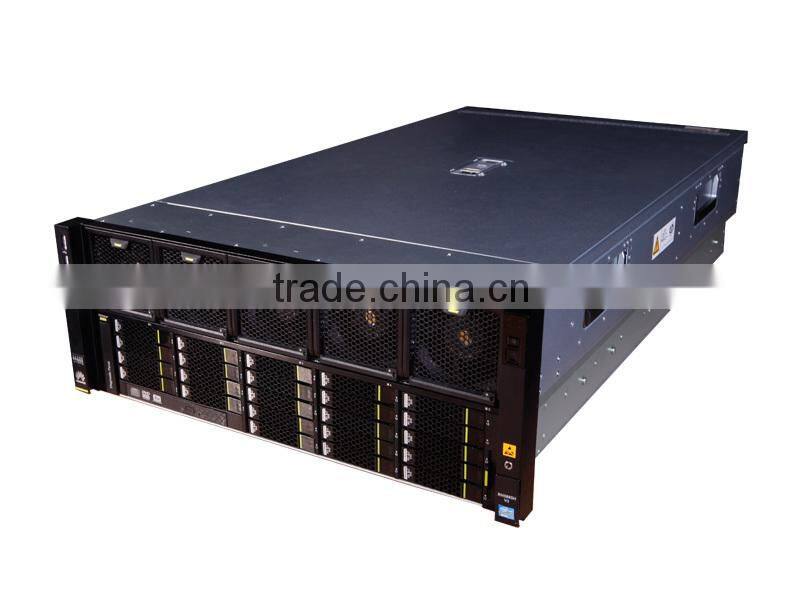

4U Huawei FusionServer RH5885H V3 Rack Server
New-generation 4U four-socket rack server supports Intel® Xeon® E7 v2 series processors with up to 60 cores and 6 TB memory capacity, boosting performance. Ideal for mission-critical applications such as databases, Enterprise Resource Planning (ERP), Business Intelligence (BI), Big Data, and virtualization.
53 RAS features provide memory mirroring, memory sparing, and Predictive Failure Analysis (PFA) for enhanced stability. Modular design and fault diagnosis LCD touch panel provide simple, tool-free maintenance.
Get high reliability and better performance with Huawei’s RH5885H V3 rack server.
Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
The Huawei FusionServer RH5885H V3 (RH5885H V3 for short) is a standard 4U 4-socket rack server and supports Intel®Xeon®E7 v2 processors. To meet the requirements of missioncritical applications such as databases, virtualization, business intelligence (BI), and highperformance computing (HPC), the RH5885H V3 provides up
to 60 computing cores and a memory capacity of up to 6 TB.
| RH5885H V3 | |
| Form factor | 4U rack server |
| Number of processors | 2 or 4 |
| Processor model | Intel®Xeon®E7-4800 v2 or E7-8800 v2 processors, with an L3 cache capacity of 37.5 MB maximum |
| Maximum memory capacity | 96 DDR3 DIMMs, up to 6 TB (using 64 GB DIMMs) |
| Maximum local storage | 8 or 23 x 2.5" SAS/SATA HDDs or SSDs |
| RAID support | RAID 0, 1, 10, 5, and 6 |
| LOM network port | 2 or 4 x GE ports, or 2 x 10GE ports |
| Expansion slot | A maximum of 16 PCIe slots |
| USB port | 6 (front: 2; rear: 2; built-in: 2) |
| Fan module | 5 hot-swappable, counter-rotating fan modules in N+1 redundancy mode |
| PSU | Hot-swappable, redundant PSUs |
| Management |
Integrated BMC that supports the following: IPMI 2.0, SNMPv3, SNMP Trap v1, CIM, and WS-MAN |
| Operating systems supported |
Microsoft Windows Server Red Hat Enterprise Linux |
| Power supply | 110 V/220 V AC or –48 V DC |
| Operating temperature | 5ºC – 40ºC |
| Dimensions |
Height: 175 mm (6.89 in.) Width: 447 mm (17.60 in.) |
Fault-tolerant design to ensure stable system operation
1) Chip-level fault-tolerant features, such as automatic recovery for processors and links, ensure stable system operation.
2) Memory mirroring and memory sparing prevent system shutdown caused by memory hardware faults.
3) Full redundancy and hot swap maintenance are supported for key components, such as PSUs, fan modules, and hard disks, without the need for opening the chassis cover. These features facilitate quick replacement for faulty components during normal system operation, ensuring high system reliability.
4) Some PCIe slots support hot swap without the need for opening the chassis cover. This ensures that there are no interruptions to the system operation during PCIe device replacement.
5) The integrated intelligent management software monitors system operation, triggers warnings, and rectifies faults.
6) A diagnosis panel facilitates fault location, which reduces the time required to rectify faults.
Double the performance compared with our previous-generation product
1) The RH5885H V3 supports four Intel®Xeon®E7-4800 v2 or E7-8800 v2 processors. The maximum number of cores per processor is increased from 10 to 15, and the maximum cache capacity increased from 30 MB to 37.5 MB.
2) To maximize the concurrent processing capability, up to 60 cores and 120 concurrent threads are supported.
3) The overall performance is increased by 100% compared with the previous-generation Westmere-EX.
4) A maximum of 96 DIMMs can be configured in the RH5885H V3. Using 64 GB DIMMs, the RH5885H V3 supports a maximum memory capacity of 6 TB, which meets large memory requirements for virtualization. In addition, the RH5885H V3 supports DIMMs at 1.5 times the normal height to provide higher cost effectiveness.
5) Configured with Huawei ES series PCIe solid-state drives (SSDs), the RH5885H V3 provides excellent
input/output (I/O) performance, eliminating disk performance bottlenecks.
6) The RH5885H V3 supports up to four dual-slot GPUs, greatly improving floating-point computing and graphics processing performance.
Outstanding scalability for various application scenarios
1) Supporting PCIe 3.0, the RH5885H V3 offers a data throughput rate of 8 Gbit/s, with a rate increase of 60% compared with PCIe 2.0.
2) A maximum of 16 full-height, full-length PCIe cards can be configured. Four of the PCIe cards are hot swappable and can be maintained without the need for opening the chassis cover.
3) The RH5885H V3 supports eight or twenty-three 2.5" hard disks, which allows flexible configuration of the local storage capacity. This applies to distributed databases and big data analysis.
4) Two built-in USB ports are provided for preinstalling an OS or encryption certificate.
5) A plug-in NIC is used to provide LAN on motherboard (LOM). GE or 10GE ports can be flexibly configured.
Optimized energy efficiency to reduce OPEX
1) Power capping is adopted to increase the server deployment density without the need for changing the equipment room design.
2) The dynamic energy-saving technology adjusts the processor frequency and voltage according to the processor usage, reducing energy consumption.
3) Platinum PSUs offer power efficiency of up to 94% at 50% loads.
