Huawei 8 CPU cloud computing server RH8100 V3
- 4 or 8 Intel® Xeon® E7-8800 v2 series processors
- 192 DDR3 DIMMs, up to 12TB memory
- RAID 0, 1, 10, 5, 50, 6, or 60
Huawei 8 CPU cloud computing server RH8100 V3
New-generation flagship server with up to eight Intel® Xeon® E7-8800 v2 series processors and industry-leading architecture provides robust computing performance and extensibility. Ideal for mission-critical applications, either as a single instance database or a cluster of multiple 8-socket servers.
Up to 60 Reliability, Availability, and Serviceability (RAS) features ensure system stability, reliability, and serviceability. Hardware partitioning technology addresses future processing requirements, maximizes resource utilization and ensures high ROI.
Rely on Huawei’s RH8100 V3 server for mission-critical services and data mining analysis.
Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
Huawei 8 CPU cloud computing server RH8100 V3

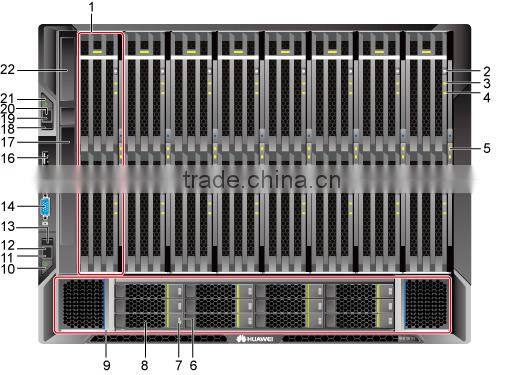

1 | Compute modules 1 to 8 from left to right | 2 | Memory board button/status indicator |
| 3 | Memory board ATTN indicator | 4 | Memory board sparing indicator |
| 5 | Compute module status indicator | 6 | Hard disk fault indicator |
7 | Hard disk active indicator | 8 | Hard disk |
| 9 | FM-A | 10 | Secondary power button/indicator |
| 11 | Secondary health indicator | 12 | Secondary VGA indicator |
| 13 | Secondary UID button/indicator | 14 | VGA port |
| 15 | USB port 2 | 16 | USB port 1 |
| 17 | DVD | 18 | Primary UID button/indicator |
| 19 | Primary VGA indicator | 20 | Primary health indicator |
| 21 | Primary power button/indicator | 22 | LCD |
Huawei 8 CPU cloud computing server RH8100 V3
The HUAWEI RH8100 V3 server (RH8100 V3 for short) is a general-purpose 8-socket rack server developed for Internet, Internet data center (IDC), cloud computing, enterprise, and telecom service applications.
The RH8100 V3 features high-performance computing (HPC), large memory capacity, and high scalability and reliability, and is easy to deploy and manage. It is ideal for applications, including HPC, in-memory databases, virtualization, basic enterprise applications, and telecom services.
- The RH8100 V3 in single-system mode operates as a whole system, and the system supports a maximum of eight CPUs.
- The RH8100 V3 in dual-system mode operates as two independent systems, which are named systems A and B or partitions A and B. Each system or partition supports a maximum of four CPUs. The technology used is called Huawei FusionPar technology or hard partitioning technology.
Huawei 8 CPU cloud computing server RH8100 V3
Processors | 4 or 8 Intel® Xeon® E7-8800 v2 series processors |
Memory | 192 DDR3 RDIMMs/LRDIMMs with up to 12 TB memory capacity |
Internal Storage | Hard disk configurations:
|
RAID Support | RAID 0, 1, 10, 5, 50, 6, or 60 |
LOM Network Ports | Two LOM mezzanine cards, up to 8 x GE ports or 4 x 10 GE ports |
PCIe Expansion | Up to 16 PCIe 3.0 slots (4 slots support hot-swap) |
Fan Modules | 8 hot-swappable fan modules in N+1 redundancy mode |
PSUs | 4 hot-swappable PSUs in 2+2 redundancy mode
|
Management |
|
Operating Temperature | 5ºC to 40ºC (41ºF to 104ºF) |
