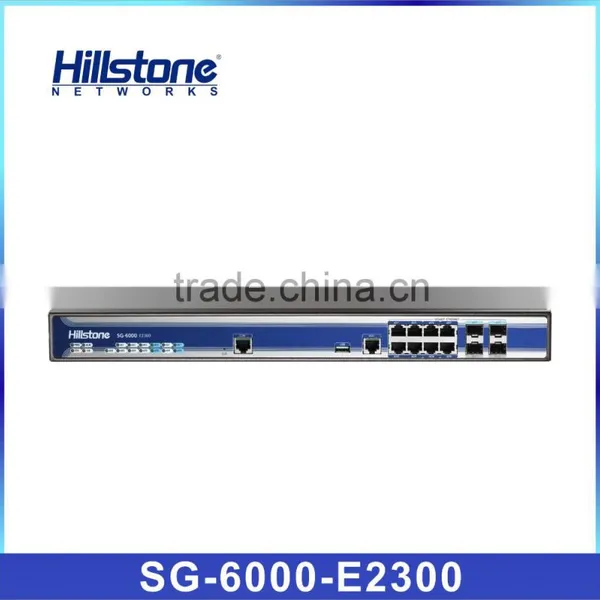

Hillstone E-Series Next-Generation Firewall SG-6000-E2300
Hillstone E-Series next generation firewalls provide visibility and control of web applications regardless of port,protocol, or evasive action. It can identify and prevent potential threats associated with high-risk applications while providing policy-based control over applications, users, and user-groups. Policies can be defined that guarantee bandwidth to mission-critical applications while restricting or blocking inappropriate or malicious applications. Hillstone E-Series firewalls incorporate comprehensive network security and advanced firewall features. They provide superior price performance, excellent energy efficiency, and a smaller size when compared to competing products.
- Granular Application Control
Hillstone E-Series firewalls provide fine-grained control of web applications regardless of port, protocol, or evasive action. It can identify and prevent potential threats associated with high-risk applications while providing policy-based control over applications, users, and user-groups. Policies can be defined that guarantee bandwidth to mission-critical applications while restricting or blocking inappropriate or
malicious applications. Applications are classified by: name, category, subcategory, technology and risk. Policies can be created using one or more of these classifications to fine-tune permissible applications for selected users and groups. Policy based routing and bandwidth management can also be created for users/groups based on time of day and application attributes. In addition, selected features within an application (e.g., games, file sharing) can be blocked or bandwidth managed by user/group, time of day, and other criteria.
- Proactive Threat Protection
Hillstone E-Series firewalls provide real-time protection for application and network attacks including viruses, spyware, worms, botnets, ARP spoofing, DoS/DDoS, Trojans, buffer overflows, and SQL injections. It incorporates a unified malware detection engine that shares packet details with multiple security defenses (IPS, URL filtering, and Anti-Virus), which significantly reduces latency.
- Visibility and Control
Hillstone E-Series provides visibility and control of network traffic. An intuitive user interface displays all applications traversing the network along with application categories and bandwidth. An administrator can
quickly choose an application and see all the users who are accessing that application along with bandwidth consumption. If a particular user is of interest the administrator can see all the applications that user is using - now and in the past. Inappropriate applications can be blocked or limited by bandwidth or time of day. Multiple reports show top applications, top users, top URLs, top URL categories, top threats, etc.
- Network Services
- Dynamic routing (OSPF, BGP, RIPv2)
- Static and Policy routing
- Route controlled by application
- Built-in DHCP, NTP, DNS Server and DNS proxy
- Tap mode – connect to SPAN port
- IPv6 Support: Mgt. over IPv6, IPv6 routing protocols, IPv6 tunneling, IPv6 logging and HA
- Interface modes: sniffer, port aggregated, loopback, VLANS (802.1Q and Trunking)
- L2/L3 switching & routing
- Virtual wire (Layer 1) transparent inline deployment
- Firewall
- Operating modes: NAT/route, transparent (bridge), and mixed mode
- Policy objects: predefined, custom, and object grouping
- Application Level Gateways and session support: MSRCP, PPTP, RAS, RSH, SIP, FTP, TFTP, HTTP, dcerpc, dns-tcp, dns-udp, H.245 0, H.245 1, H.323
- NAT support: NAT46, NAT64, NAT444, SNAT, DNAT, PAT, Full Cone NAT, STUN
- NAT configuration: per policy and central NAT table
- VoIP: SIP/H.323/SCCP NAT traversal, RTP pin holing
- Global policy management view
- Schedules: one-time and recurring
- QoS Traffic Shaping:
- Max/guaranteed bandwidth tunnels or IP/user basis
- Tunnel allocation based on security domain, interface, address, user/user group, server/server group, application/app group, TOS,VLAN
- Bandwidth allocated by time, priority, or equal bandwidth sharing
- Type of Service (TOS) and Differentiated Services (DiffServ) support
- Prioritized allocation of remaining bandwidth
- Maximum concurrent connections per IP
- Virtual Firewall: Up to 250 vSYS load balanced firewalls
- Load balancing:
- Weighted hashing, weighted least-connection, and weighted round-robin
- Session protection, session persistence and session status monitoring
- Bidirectional link load balancing
- Outbound link load balancing includes policy based routing, ECMP and weighted, embedded ISP routing and dynamic detection
- Inbound link load balancing supports SmartDNS and dynamic detection
- Automatic link switching based on bandwidth and latency
- Link health inspection with ARP, PING, and DNS
- VPN
- IPSec VPN:
- IPSEC Phase 1 mode: aggressive and main ID protection mode
- Peer acceptance options: any ID, specific ID, ID in dialup user group
- Supports IKEv1 and IKEv2 (RFC 4306)
- Authentication method: certificate and pre-shared key
- IKE mode configuration support (as server or client)
- DHCP over IPSEC
- Configurable IKE encryption key expiry, NAT traversal keep alive frequency
- Phase 1/Phase 2 Proposal encryption: DES, 3DES, AES128, AES192,AES256
- Phase 1/Phase 2 Proposal authentication: MD5, SHA1, SHA256,SHA384, SHA512
- Phase 1/Phase 2 Diffie-Hellman support: 1,2,5
- XAuth as server mode and for dialup users
- Dead peer detection
- Replay detection
- Autokey keep-alive for Phase 2 SA
- IPSEC VPN realm support: allows multiple custom SSL VPN logins associated with user groups (URL paths, design)
- IPSEC VPN configuration options: route-based or policy based
- IPSEC VPN deployment modes: gateway-to-gateway, full mesh,hub-and-spoke, redundant tunnel, VPN termination in transparent mode
- One time login prevents concurrent logins with the same username
- SSL portal concurrent users limiting
- SSL VPN port forwarding module encrypts client data and sends the data to the application server
- Supports clients that run iOS, Android, and Windows XP/Vista including 64-bit Windows OS
- Host integrity checking and OS checking prior to SSL tunnel connections
- MAC host check per portal
- Cache cleaning option prior to ending SSL VPN session
- L2TP client and server mode, L2TP over IPSEC, and GRE over IPSEC
- View and manage IPSEC and SSL VPN connections User and Device Identity
- Local user database
- Remote user authentication: LDAP, Radius, Active Directory
- Single-sign-on: Windows AD
- 2-factor authentication: 3rd party support, integrated token server with physical and SMS
- User and device-based policies
- IPSec VPN:
- IPS
- 7,000+ signatures, protocol anomaly detection, rate-based detection, custom signatures, manual, automatic push or pull signature updates, integrated threat encyclopedia
- IPS Actions: default, monitor, block, reset (attackers IP or victim IP, incoming interface) with expiry time
- Packet logging option
- Filter Based Selection: severity, target, OS, application or protocol
- IP exemption from specific IPS signatures
- IDS sniffer mode
- IPv4 and IPv6 rate based DoS protection with threshold settings against TCP Syn flood, TCP/UDP/SCTP port scan, ICMP sweep, TCP/UDP/SCIP/ICMP session flooding (source/destination)
- Active bypass with bypass interfaces
- Predefined prevention configuration
- Threat Protection
- Over 1.3 million AV signatures
- Botnet server IP blocking with global IP reputation database
- Flow-based Antivirus: protocols include HTTP, SMTP, POP3, IMAP
- FTP/SFTP
- Flow-based web filtering inspection
- Manually defined web filtering based on URL, web content and MIME header
- Dynamic web filtering with cloud-based real-time categorization database: over 140 million URLs with 64 categories (8 of which are security related)
- Additional web filtering features:
- Filter Java Applet, ActiveX or cookie
- Block HTTP Post
- Log search keywords
- Exempt scanning encrypted connections on certain categories for privacy
- Web filtering profile override: allows administrator to temporarily assign different profiles to user/group/IP
- Web filter local categories and category rating override
- Proxy avoidance prevention: proxy site category blocking, rate URLs by domain and IP address, block redirects from cache & translation sites, proxy avoidance application blocking, proxy behavior blocking (IPS)
- Inspect SSL encryption traffic
- Application Control
- Over 3,000 applications that can be filtered by name, category, subcategory, technology and risk
- Each application contains a description, risk factors, dependencies, typical ports used, and URLs for additional reference
- Actions: block, reset session, monitor, traffic shaping
- High Availability
- Redundant heartbeat interfaces
- Active/Active and Active/Passive
- Standalone session synchronization
- HA reserved management interface
- Failover:
- Port, local & remote link monitoring
- Stateful failover
- Sub-second failover
- Failure notification
- • Deployment Options:
- HA with link aggregation
- Full mesh HA
- Geographically dispersed HA
- Administration
- Management access: HTTP/HTTPS, SSH, telnet, console
- Central Management: Hillstone Security Manager (HSM), web service
- APIs
- System Integration: SNMP, syslog, alliance partnerships
- Rapid deployment: USB auto-install, local and remote script execution
- Dynamic real-time dashboard status and drill-in monitoring widgets
- Language support: English
- Logs & Reporting
- Logging facilities: local memory and storage (if available), multiple syslog servers and multiple Hillstone Security Audit (HSA) platforms
- Encrypted logging and log integrity with HSA scheduled batch log uploading
- Reliable logging using TCP option (RFC 3195)
- Detailed traffic logs: forwarded, violated sessions, local traffic, invalid packets
- Comprehensive event logs: system and administrative activity audits, routing & networking, VPN, user authentications, WiFi related events
- IP and service port name resolution option
Specification | SG-6000-E2300 |
FW Throughput (Maximum) | 2.5Gbps/4Gbps |
IPSec Throughput | 1Gbps |
Maximum Concurrent Sessions (Standard/Maximum) | 1M/1M |
AV Throughput | 700Mbps |
IPS Throughput | 1Gbps |
New Sessions/s | 50,000 |
IPSec Tunnel Number | 1,000 |
Maximum SSL VPN Users | 1,000 |
Management Ports | 1 x Console Port,1×USB port |
Fixed I/O Ports | 5 x GE, 4XCombo |
Available Slots for Extension Modules | No |
Expansion Module Option | No |
Maximum Power Consumption | 45W Redundancy 1+1 |
Power Supply | AC 100-240V 50/60Hz DC -40~-60V |
Dimension (W×D×H, mm) | 1U 17.4X9.5X1.7in(442x241x44mm) |
Weight | 5.5lb (2.5kg) |
Temperature | 32-104 F (0-40℃ ) |
Relative Humidity | 10-95% (no dew) |
Specification | IOC-8GE-M | IOC-8SFP-M |
Pictures | | |
Name | 8GE Extension Module | 8SFP Extension Module |
I/O Ports | 8 x GE | 8 x SFP, SFP module not included |
Dimension | ½ U (Occupies 1 generic slot ) | ½ U (Occupies 1 generic slot ) |
Weight | 1.8lb(0.8kg) | 2.0 lb (0.9kg) |
Specification | IOC-4GE-B-M | IOC-2XFP-Lite-M |
Pictures | | |
Name | 4GE Bypass Extension Module | 2XFP Extension Module |
I/O Ports | 4 x GE Bypass (2 pair bypass ports) | 2 x XFP, XFP module not included |
Dimension | ½ U (Occupies 1 generic slot ) | ½ U (Occupies 1 generic slot ) |
Weight | 1.8 lb (0.8kg) | 2.0 lb (0.9kg) |
Specification | IOC-4XFP | IOC-8SFP+ |
Pictures | | |
Name | 4XFP Extension Module | 8SFP+ Extension Module |
I/O Ports | 4 x XFP, XFP module not included | 8 x SFP+, SFP+ module not included |
Dimension | 1 U (Occupies 2 generic slots)
| 1 U (Occupies 2 generic slots) |
Weight | 2.0 lb (0.9kg) | 1.5 lb (0.7kg) |
Specification | IOC-4GE-POE | IOC-4SFP+ |
Pictures | | |
Name | 4GE PoE Extension Module | 4SFP+ Extension Module |
I/O Ports | 4 x GE with PoE | 4 x SFP+, SFP+ module not included |
Dimension | 1 U (Occupies 2 generic slots) | 1 U (Occupies 2 generic slots) |
Weight | 0.9 lb (0.4kg) | 1.5 lb (0.7kg) |
- Trade terms: FOB,CIF,CFR,etc
- Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
- Payment Terms: T/T in advance
- MOQ: 1 pcs
- FOB Price:US $1 - 1,000 / Piece
- Port: Shanghai
- Lead time: Within 5 working days after receipt payment.
- Shipment: Express, Air, Sea
- Supply capability: 200 Piece/Pieces per Week
- Sample availability: Yes (not free)
- Package information: carton package with the original package
- We can provide detail documents and remote help for device installation and configuration.
- Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
- Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
- For more information please contact me freely.My Skype live:2840781839 , my QQ: 2840781839
